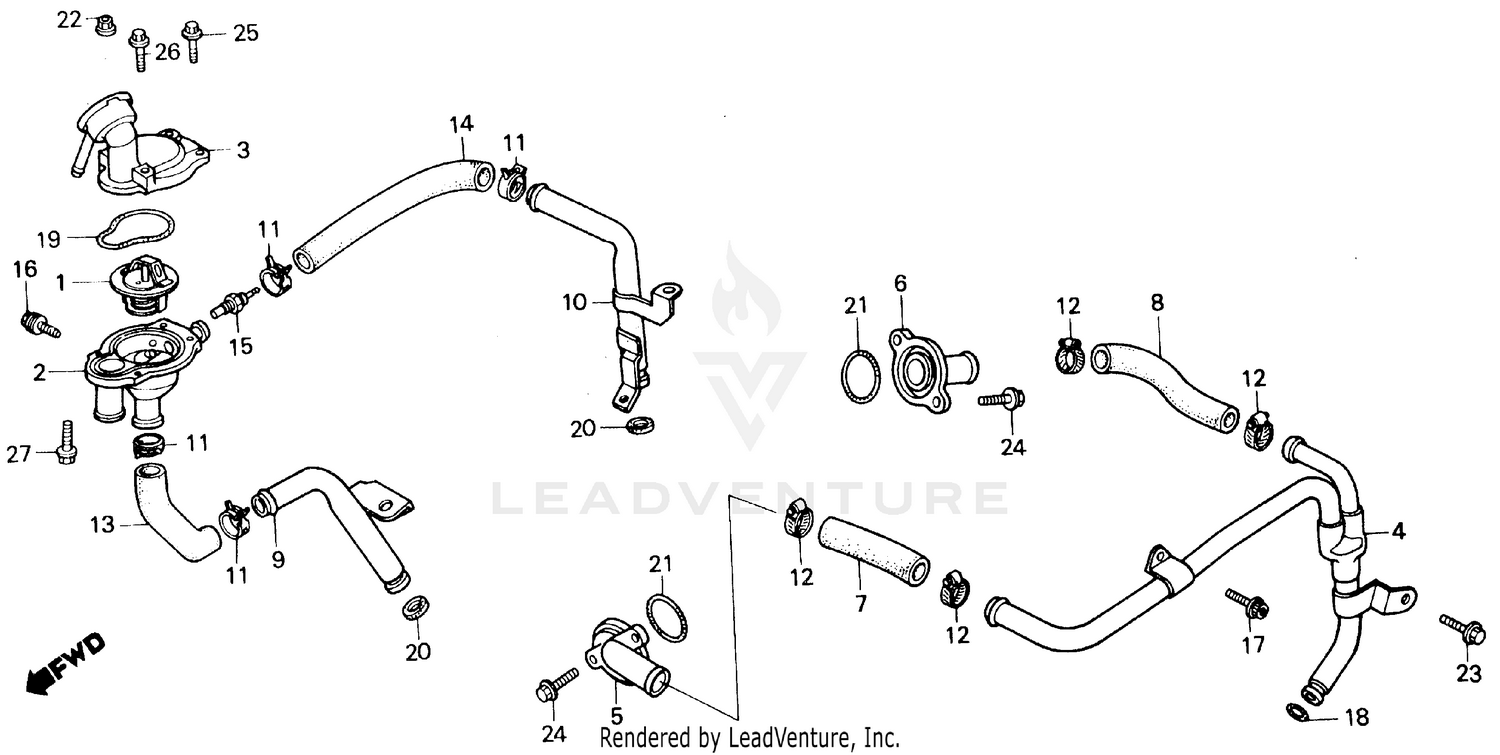

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT
19300-MB0-003
|
$63.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, THERMOSTAT
19311-MK7-671
|
$74.83 | ||
|
Unavailable |
|||
|
#3
NECK, FILLER
19318-MK7-671
|
$55.12 | ||
|
Unavailable |
|||
|
#4
PIPE, INLET WATER
19501-MG8-000
Superseded by 19501-MM8-790
|
$81.60 | ||
|
Unavailable |
|||
|
#4
PIPE, INLET WATER
19501-MM8-000
Superseded by 19501-MM8-790
|
$81.60 | ||
|
Unavailable |
|||
|
#4
PIPE, INLET WATER
19501-MM8-790
|
$81.60 | ||
|
Unavailable |
|||
|
#5
JOINT A, WATER HOSE
19503-MG8-000
|
$31.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT B, WATER HOSE
19504-MG8-000
|
$36.00 | ||
|
Unavailable |
|||
|
#7
HOSE A, IN. WATER
19505-MG8-000
|
$6.91 | ||
|
Unavailable |
|||
|
#8
HOSE B, IN. WATER (NOT AVAILABLE)
19506-MG8-000
|
$8.48 | ||
|
Unavailable |
|||
|
#9
PIPE, FR. OUTLET WATER (NOT AVAILABLE)
19511-MK7-770
|
$15.21 | ||
|
Unavailable |
|||
|
#10
PIPE, RR. OUTLET WATER (NOT AVAILABLE)
19512-MK7-770
|
$15.79 | ||
|
Unavailable |
|||
|
#11
CLIP B, HOSE
19514-ME9-003
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP B, WATER HOSE
19517-MB6-000
|
$14.32 | ||
|
Unavailable |
|||
|
#13
HOSE A, WATER OUTLET (NOT AVAILABLE)
19521-MK7-670
|
$12.32 | ||
|
Unavailable |
|||
|
#14
HOSE B, WATER OUTLET (NOT AVAILABLE)
19522-MK7-671
|
$17.76 | ||
|
Unavailable |
|||
|
#15
SENDING UNIT, WATER TEMPERATURE (DENSO)
37750-PC1-004
|
$98.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (8MM)
90042-ME9-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE SOCKET (6X16)
90071-MG8-000
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (18.3X2.3) (ARAI)
91301-147-023
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
91307-MK7-671
|
$5.58 | ||
|
Unavailable |
|||
|
#20
SEAL, WATER PIPE (ARAI)
91315-ME9-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, WATER PIPE
91315-ME9-004
Superseded by 91315-ME9-003
|
$5.67 | ||
|
Unavailable |
|||
|
#21
O-RING
91356-169-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X35)
96001-06035-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
