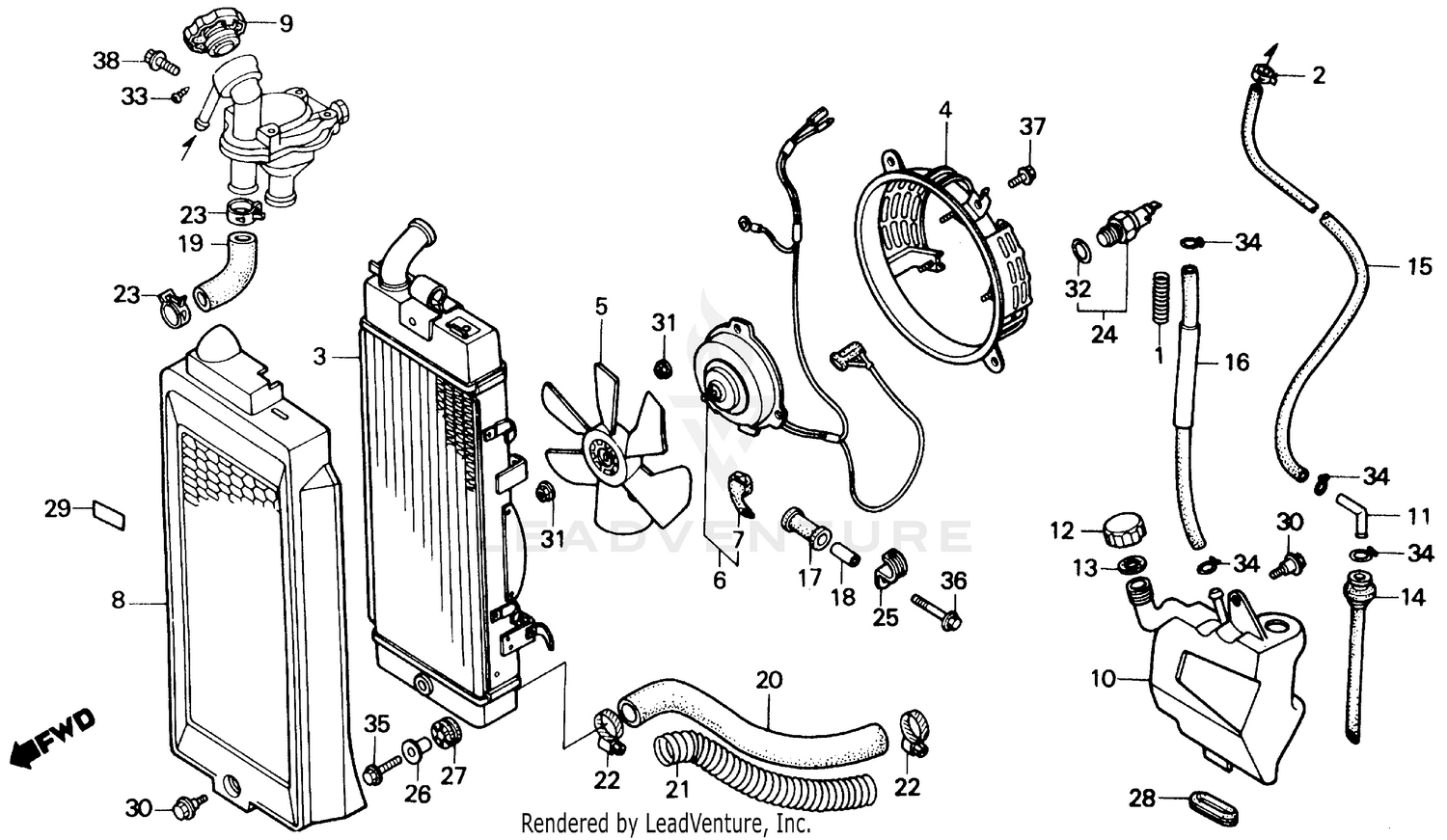

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, FUEL TUBE COVER
16715-MB1-000
|
$8.87 | ||
|
Unavailable |
|||
|
#2
CLIP, FUEL HOSE
16969-MB1-000
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
RADIATOR
19010-MK7-003
|
$588.47 | ||
|
Unavailable |
|||
|
#4
SHROUD
19015-MR6-670
|
$91.47 | ||
|
Unavailable |
|||
|
#5
FAN, COOLING
19020-MG8-003
|
$71.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., FAN (MATSUSHITA)
19030-MK7-014
Superseded by 19030-MK7-024
|
$266.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY., FAN (MATSUSHITA)
19030-MK7-024
|
$266.59 | ||
|
Unavailable |
|||
|
#7
TUBE, RUBBER
19031-MG8-300
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, RADIATOR
19032-MK7-000
|
$83.66 | ||
|
Unavailable |
|||
|
#9
CAP, RADIATOR
19045-MB0-702
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RADIATOR
19045-MR6-670
Superseded by 19045-MZ3-405
|
$39.36 | ||
|
Unavailable |
|||
|
#10
TANK, RADIATOR RESERVE (NOT AVAILABLE)
19103-MK7-000
|
$26.58 | ||
|
Unavailable |
|||
|
#11
JOINT, TUBE
19103-463-000
|
$5.97 | ||
|
Unavailable |
|||
|
#12
CAP, RESERVE TANK
19104-ME9-000
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, RESERVE TANK
19107-MG8-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, LEVEL
19108-MB0-000
Superseded by 19108-MB0-010
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, LEVEL
19108-MB0-010
|
$13.93 | ||
|
Unavailable |
|||
|
#15
TUBE, RESERVE TANK BREATHER
19108-MK7-000
|
$9.57 | ||
|
Unavailable |
|||
|
#16
TUBE, RADIATOR RESERVE
19109-MK7-000
|
$19.27 | ||
|
Unavailable |
|||
|
#17
RUBBER, RADIATOR SETTING
19113-MB0-000
|
$5.37 | ||
|
Unavailable |
|||
|
#18
COLLAR, RADIATOR SETTING
19114-MB0-000
|
$3.81 | ||
|
Unavailable |
|||
|
#19
HOSE, RADIATOR (UPPER)
19116-MR6-670
|
$10.91 | ||
|
Unavailable |
|||
|
#20
HOSE, RADIATOR (LOWER) (NOT AVAILABLE)
19117-MK7-000
|
$23.36 | ||
|
Unavailable |
|||
|
#21
GUARD, RADIATOR HOSE (LOWER)
19120-MG8-000
|
$17.36 | ||
|
Unavailable |
|||
|
#22
CLAMP, WATER HOSE
19503-MB1-870
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE (22-29MM)
19513-MF5-000
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE (22-29MM)
19513-MM4-003
Superseded by 19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#23
CLAMP, HOSE (22-29)
19517-ML7-691
|
$14.09 | ||
|
Unavailable |
|||
|
#24
SWITCH ASSY., THERMO
37760-MB2-901
Superseded by 37760-MR1-003
|
$87.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SWITCH ASSY., THERMO
37760-MR1-003
|
$87.13 | ||
|
Unavailable |
|||
|
#25
CLIP A, HARNESS
50305-MK7-000
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, FR. FENDER (WHITE)
61104-MA6-720
Superseded by 61104-428-010
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#26
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.29 | ||
|
Unavailable |
|||
|
#27
RUBBER, HEADLIGHT CASE SETTING
61304-415-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET A, SIDE COVER
83601-MB0-000
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
MARK, RADIATOR CAUTION (NOT AVAILABLE)
87508-415-670
|
$3.86 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#33
SCREW, TAPPING (3X6)
93901-22080
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, TUBE (C11)
95002-70000
|
$1.72 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X22)
95700-06022-07
Superseded by 95701-06022-07
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X22)
95701-06022-07
|
$1.07 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X40)
95700-06040-07
Superseded by 95701-06040-07
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X40)
95701-06040-07
|
$1.97 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (6X10)
96000-06010-07
Superseded by 96001-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X10)
96001-06010-07
|
$1.70 | ||
|
Unavailable |
|||
