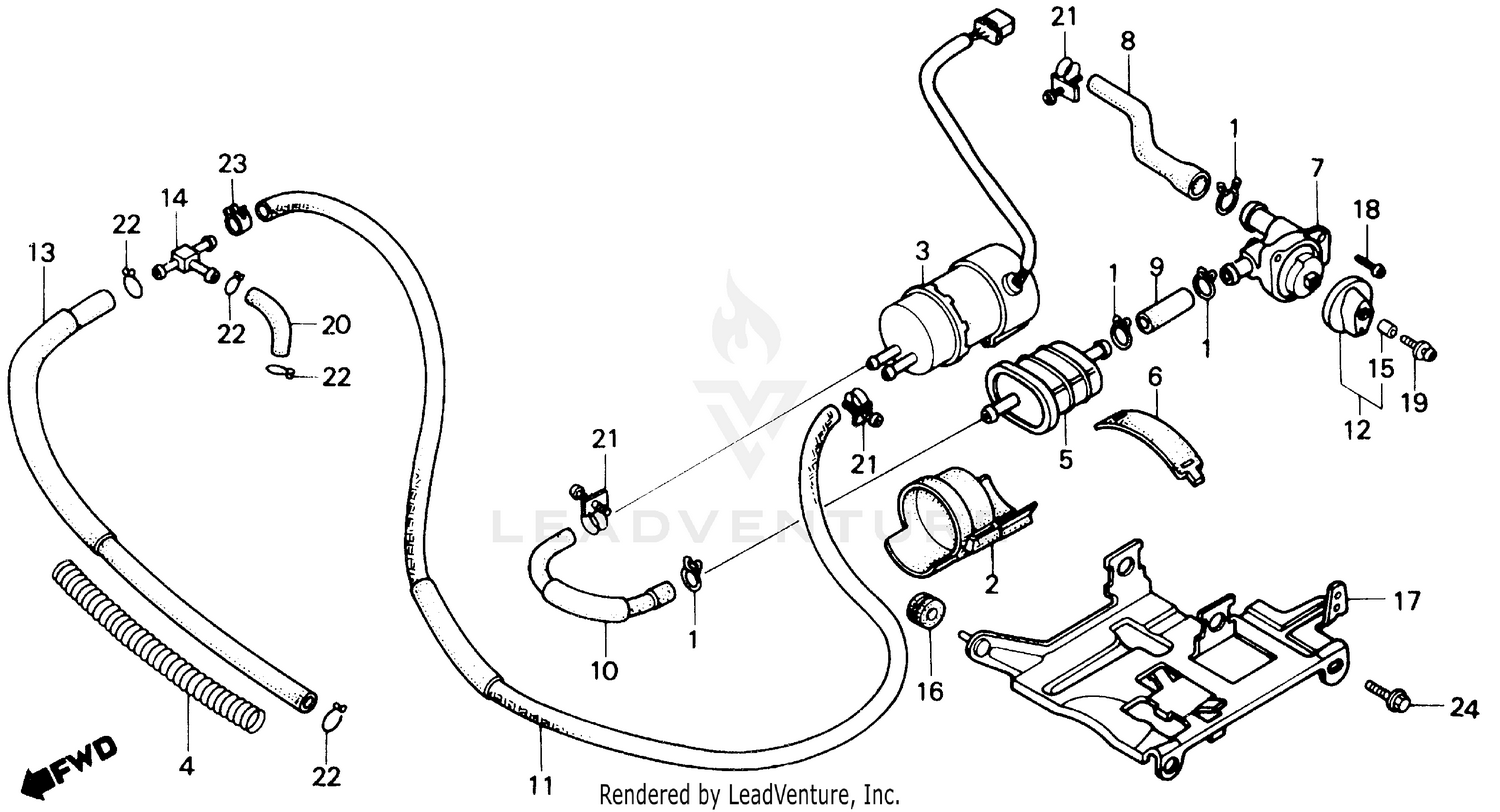

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, FUEL PUMP (NOT AVAILABLE)
16701-MK7-000
|
$9.38 | ||
|
Unavailable |
|||
|
#3
PUMP ASSY., FUEL (NOT AVAILABLE)
16710-MK7-000
|
$161.64 | ||
|
Unavailable |
|||
|
#4
SPRING, TUBE COVER
16715-ME9-780
|
$3.92 | ||
|
Unavailable |
|||
|
#5
FILTER, FUEL
16900-MB6-631
|
$21.65 | ||
|
Unavailable |
|||
|
#6
BAND, STRAINER (NOT AVAILABLE)
16920-MK7-000
|
$3.54 | ||
|
Unavailable |
|||
|
#7
PETCOCK ASSY. (NOT AVAILABLE)
16950-MK7-005
|
$23.80 | ||
|
Unavailable |
|||
|
#8
TUBE A, FUEL
16951-MK7-000
|
$5.45 | ||
|
Unavailable |
|||
|
#9
TUBE B, FUEL (NOT AVAILABLE)
16952-MK7-000
|
$2.79 | ||
|
Unavailable |
|||
|
#10
TUBE C, FUEL (NOT AVAILABLE)
16953-MK7-000
|
$7.97 | ||
|
Unavailable |
|||
|
#11
TUBE D, FUEL (NOT AVAILABLE)
16954-MK7-000
|
$4.44 | ||
|
Unavailable |
|||
|
#12
LEVER, PETCOCK (NOT AVAILABLE)
16955-MK7-010
|
$10.25 | ||
|
Unavailable |
|||
|
#13
TUBE, L. CARBURETOR FUEL (NOT AVAILABLE)
16957-MK7-000
|
$11.09 | ||
|
Unavailable |
|||
|
#14
JOINT, FUEL TUBE
16961-MK7-000
|
$26.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COLLAR, AIR CLEANER HOUSING
17208-KE5-000
|
$1.92 | ||
|
Unavailable |
|||
|
#16
GROMMET, AIR CLEANER
17232-898-000
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, FUEL PUMP
50330-MK7-000
|
$20.86 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (6X12)
93500-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X10)
93891-05010-07
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW-WASHER (5X10)
93891-05010-17
Superseded by 93891-05010-07
|
$0.87 | ||
|
Unavailable |
|||
|
#20
BULK HOSE, FUEL (5.5X3000) (5.5X50)
95001-55003-60M
|
$57.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, TUBE (A14)
95002-01140
|
$1.59 | ||
|
Unavailable |
|||
|
#22
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, TUBE (D12.5)
95002-41250-08
|
$2.65 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
