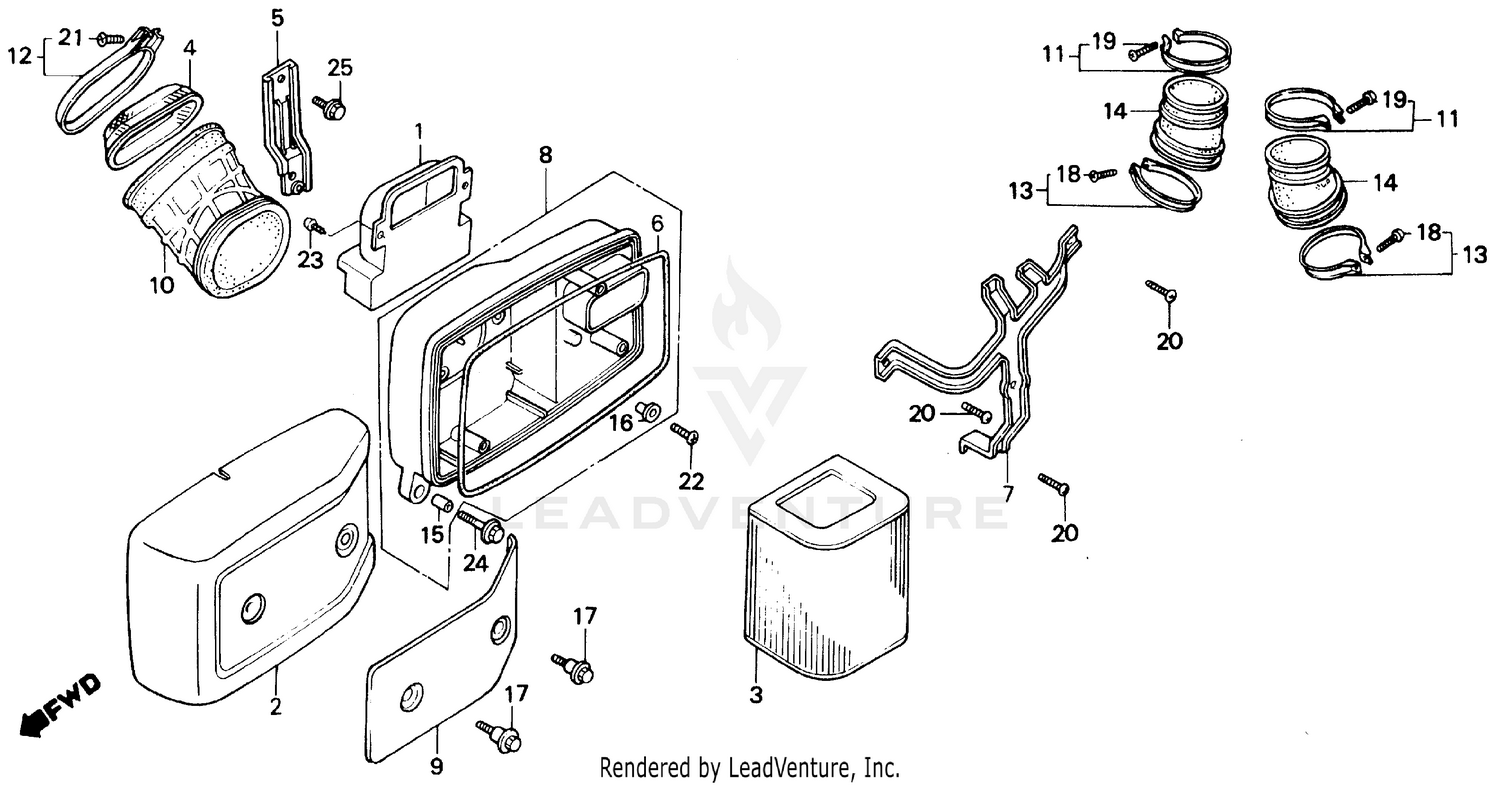

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUCT, AIR CLEANER
17213-MK7-010
|
$16.44 | ||
|
Unavailable |
|||
|
#2
COVER, AIR CLEANER HOUSING
17214-MK7-000
|
$49.18 | ||
|
Unavailable |
|||
|
#3
ELEMENT, AIR CLEANER
17215-MK7-770
|
$28.47 | ||
|
Unavailable |
|||
|
#4
TRAP, FLAME
17216-MK7-000
|
$26.65 | ||
|
Unavailable |
|||
|
#5
STAY, AIR CLEANER HOUSING
17219-MK7-770
|
$17.64 | ||
|
Unavailable |
|||
|
#6
SEAL, AIR CLEANER COVER
17222-MK7-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#7
STAY, AIR CLEANER COVER (NOT AVAILABLE)
17223-MK7-000
|
$14.68 | ||
|
Unavailable |
|||
|
#8
HOUSING, AIR CLEANER
17230-MK7-770
|
$118.88 | ||
|
Unavailable |
|||
|
#9
PLATE, AIR CLEANER
17235-MR6-670
|
$35.45 | ||
|
Unavailable |
|||
|
#10
TUBE, AIR CLEANER CONNECTING
17255-MK7-770
|
$18.97 | ||
|
Unavailable |
|||
|
#11
BAND, AIR CLEANER CONNECTING TUBE (50)
17255-402-700
Superseded by 95018-50250
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, AIR CLEANER CONNECTING TUBE (50)
90652-GHB-680
Superseded by 95018-50250
|
$9.53 | ||
|
Unavailable |
|||
|
#11
BAND, AIR CLEANER CONNECTING TUBE (50)
95018-50250
|
$9.53 | ||
|
Unavailable |
|||
|
#12
BAND, AIR CLEANER CONNECTING TUBE
17256-MK7-000
|
$10.40 | ||
|
Unavailable |
|||
|
#13
BAND, AIR CLEANER CONNECTING TUBE (60)
17257-HA0-000
Superseded by 95018-60250
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE B, AIR CLEANER CONNECTING (NOT AVAILABLE)
17257-MR6-670
|
$12.95 | ||
|
Unavailable |
|||
|
#15
COLLAR, CONTROL VALVE
36052-657-300
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, FAIRING SETTING
64531-MA6-720
|
$3.92 | ||
|
Unavailable |
|||
|
#17
BOLT, SPECIAL (6MM)
90118-MR6-670
|
$4.20 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (4X25)
93500-04025-0G
|
$0.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (4X32)
93500-04032-0A
|
$0.35 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, PAN (6X25)
93500-06025-0A
|
$1.25 | ||
|
Unavailable |
|||
|
#23
SCREW, TAPPING (5X12)
93901-25220
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
95700-06025-07
Superseded by 95701-06025-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.88 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
