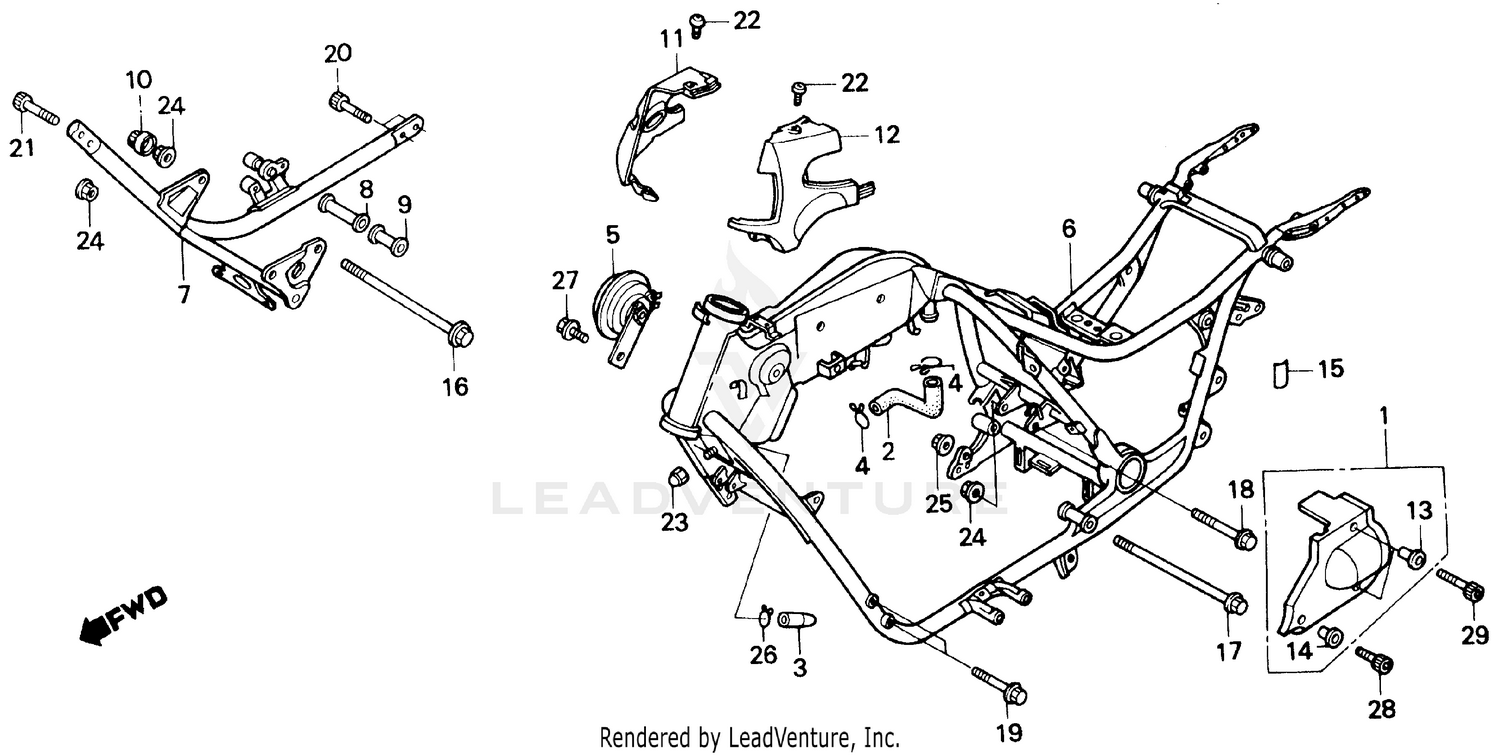

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. RR.
11341-MR6-670
|
$59.75 | ||
|
Unavailable |
|||
|
#2
TUBE, BREATHER
17225-MK7-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, DRAIN
17358-MG7-000
|
$9.57 | ||
|
Unavailable |
|||
|
#4
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN ASSY. (HIGH)
38110-MK7-671
Superseded by 38110-ML5-000
|
$76.48 | ||
|
Unavailable |
|||
|
#5
HORN ASSY. (HIGH)
38110-ML5-000
|
$76.48 | ||
|
Unavailable |
|||
|
#6
FRAME *NH1* (BLACK)
50100-MR6-670ZA
|
$1,954.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, JOINT *NH1* (BLACK)
50174-MK7-000ZA
|
$145.92 | ||
|
Unavailable |
|||
|
#8
COLLAR, R. FR. ENGINE (UPPER)
50200-ME9-000
|
$29.78 | ||
|
Unavailable |
|||
|
#9
COLLAR, L. FR. ENGINE (UPPER)
50201-ME9-000
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, FR. ENGINE HANGER (NOT AVAILABLE)
50311-MA1-730
|
$4.05 | ||
|
Unavailable |
|||
|
#11
COVER, R. FR. SIDE (NOT AVAILABLE)
63500-MK7-000
|
$20.24 | ||
|
Unavailable |
|||
|
#12
COVER, L. FR. SIDE
63600-MK7-000
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR A, FAIRING SETTING
64531-GE3-000
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
64630-KK4-000
|
$2.74 | ||
|
Unavailable |
|||
|
#15
LABEL, HELMET HOLDER
87511-KR3-670
|
$2.59 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (10X235)
90111-MG8-000
|
$13.45 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (12X260)
90112-MR6-670
|
$17.02 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (10X105)
90117-ME9-000
Superseded by 95801-10105-00
|
$2.06 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (10X105)
95801-10105-00
|
$2.06 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X57)
90125-428-900
|
$4.12 | ||
|
Unavailable |
|||
|
#20
BOLT, SOCKET (10X30)
90143-MK7-000
|
$4.20 | ||
|
Unavailable |
|||
|
#21
BOLT, SOCKET (10X30)
90152-MB0-000
|
$7.79 | ||
|
Unavailable |
|||
|
#22
SCREW, SPECIAL (6X10)
90190-MJ8-000
|
$1.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, CAP (6MM)
90201-428-900
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, FLANGE (10MM)
90303-428-900
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, FLANGE (12MM)
90305-428-900
Superseded by 94050-12070
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X16)
95700-08016-07
Superseded by 95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
Unavailable |
|||
|
#28
BOLT, SOCKET (6X20)
96600-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SOCKET (6X28)
96600-06028-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
