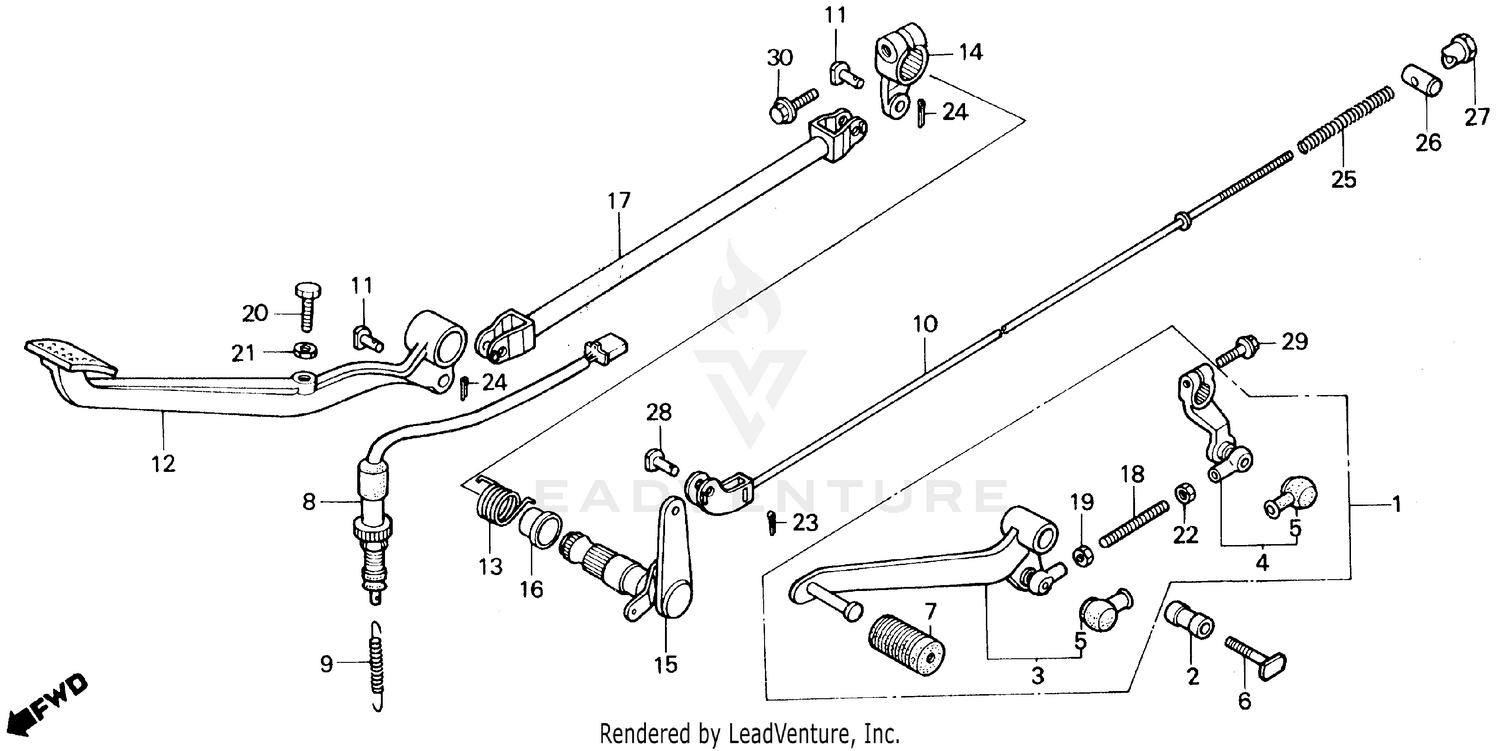

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., CHANGE (NOT AVAILABLE)
24700-MR6-670
|
$83.14 | ||
|
Unavailable |
|||
|
#2
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MK3-000
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT (NOT AVAILABLE)
24705-MR6-670
|
$82.75 | ||
|
Unavailable |
|||
|
#4
ARM, GEARSHIFT (NOT AVAILABLE)
24710-MK7-000
|
$36.67 | ||
|
Unavailable |
|||
|
#5
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CHANGE PEDAL PIVOT
24725-MK3-000
|
$4.20 | ||
|
Unavailable |
|||
|
#7
RUBBER, CHANGE PEDAL
24781-KR3-770
|
$4.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SWITCH ASSY., RR. STOP
35350-KR0-405
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., RR. STOP
35350-MF2-881
Superseded by 35350-KR0-405
|
$21.98 | ||
|
Unavailable |
|||
|
#9
SPRING, STOP SWITCH
35357-ME9-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, RR. BRAKE
43451-MK7-000
|
$12.35 | ||
|
Unavailable |
|||
|
#11
PIN, MIDDLE ROD JOINT
43456-MK7-000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
PEDAL, RR. BRAKE
46500-MK7-000
|
$86.05 | ||
|
Unavailable |
|||
|
#13
SPRING, BRAKE RETURN
46514-MK7-770
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, RR. BRAKE PEDAL LINK (NOT AVAILABLE)
46520-MK7-000
|
$19.11 | ||
|
Unavailable |
|||
|
#15
SPINDLE B, RR. BRAKE
46530-MK7-000
|
$45.29 | ||
|
Unavailable |
|||
|
#16
BUSH, BRAKE PIVOT
46535-MK7-003
|
$13.18 | ||
|
Unavailable |
|||
|
#17
ROD, RR. BRAKE MIDDLE
46540-MK7-003
|
$57.03 | ||
|
Unavailable |
|||
|
#18
BOLT, TIE ROD
90065-ML0-000
|
$4.20 | ||
|
Unavailable |
|||
|
#19
NUT A, FIXING
90201-ML0-000
|
$2.43 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEX. (6X20)
92000-06020-0A
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#21
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
JOINT, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN B, BRAKE ROD JOINT
95015-52000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (8X28)
95700-08028-00
Superseded by 95701-08028-00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X28)
95701-08028-00
|
$1.58 | ||
|
Unavailable |
|||
