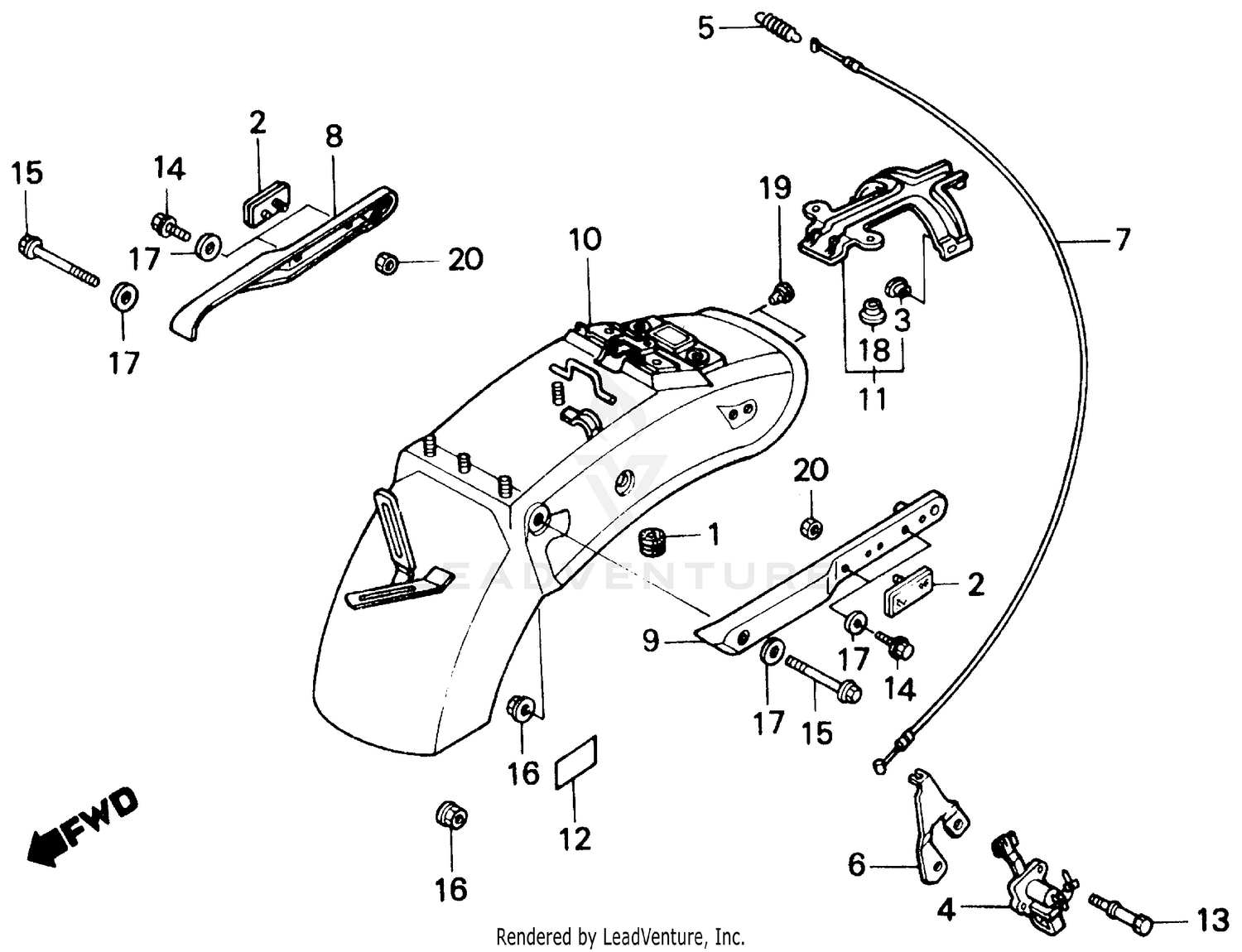

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SHROUD MOUNT
19615-GJ5-000
|
$3.25 | ||
|
Unavailable |
|||
|
#2
REFLECTOR, REFLEX
33741-MC7-612
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COLLAR, SEAT SETTING (NOT AVAILABLE)
77102-MB3-000
|
$2.86 | ||
|
Unavailable |
|||
|
#4
LOCK ASSY., SEAT
77110-MR6-670
|
$67.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SEAT LOCK
77151-MB1-870
|
$5.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, HELMET HOLDER
77155-MK7-000
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, SEAT LOCK
77156-MK7-000
|
$7.19 | ||
|
Unavailable |
|||
|
#8
GRAB RAIL, R.
77330-MR6-670
|
$96.01 | ||
|
Unavailable |
|||
|
#9
GRAB RAIL, L.
77340-MR6-670
|
$108.68 | ||
|
Unavailable |
|||
|
#10
FENDER, RR. *NH1Z* (BLACK-Z) (NOT AVAILABLE)
80100-MR6-670ZA
|
$210.70 | ||
|
Unavailable |
|||
|
#10
FENDER, RR. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)
80100-MR6-670ZB
|
$190.18 | ||
|
Unavailable |
|||
|
#11
COVER, RR. FENDER HARNESS
80108-MK7-000
|
$23.28 | ||
|
Unavailable |
|||
|
#12
MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)
87512-MN0-300
|
$4.18 | ||
|
Unavailable |
|||
|
#13
BOLT, BREAK OFF (6MM)
90008-MB6-630
|
$5.31 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X16)
90106-MB2-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X16)
90110-ME4-000
Superseded by 90106-MB2-000
|
$5.09 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X60)
90161-MB6-630
|
$4.20 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (8MM)
90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
90501-MM8-610
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
90503-MM8-770
Superseded by 90501-MM8-610
|
$2.78 | ||
|
Unavailable |
|||
|
#18
WASHER (6X20) (L. SIDE ONLY)
90512-329-690
Superseded by 90512-KF9-900
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, CONE TYPE
90899-422-610
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
