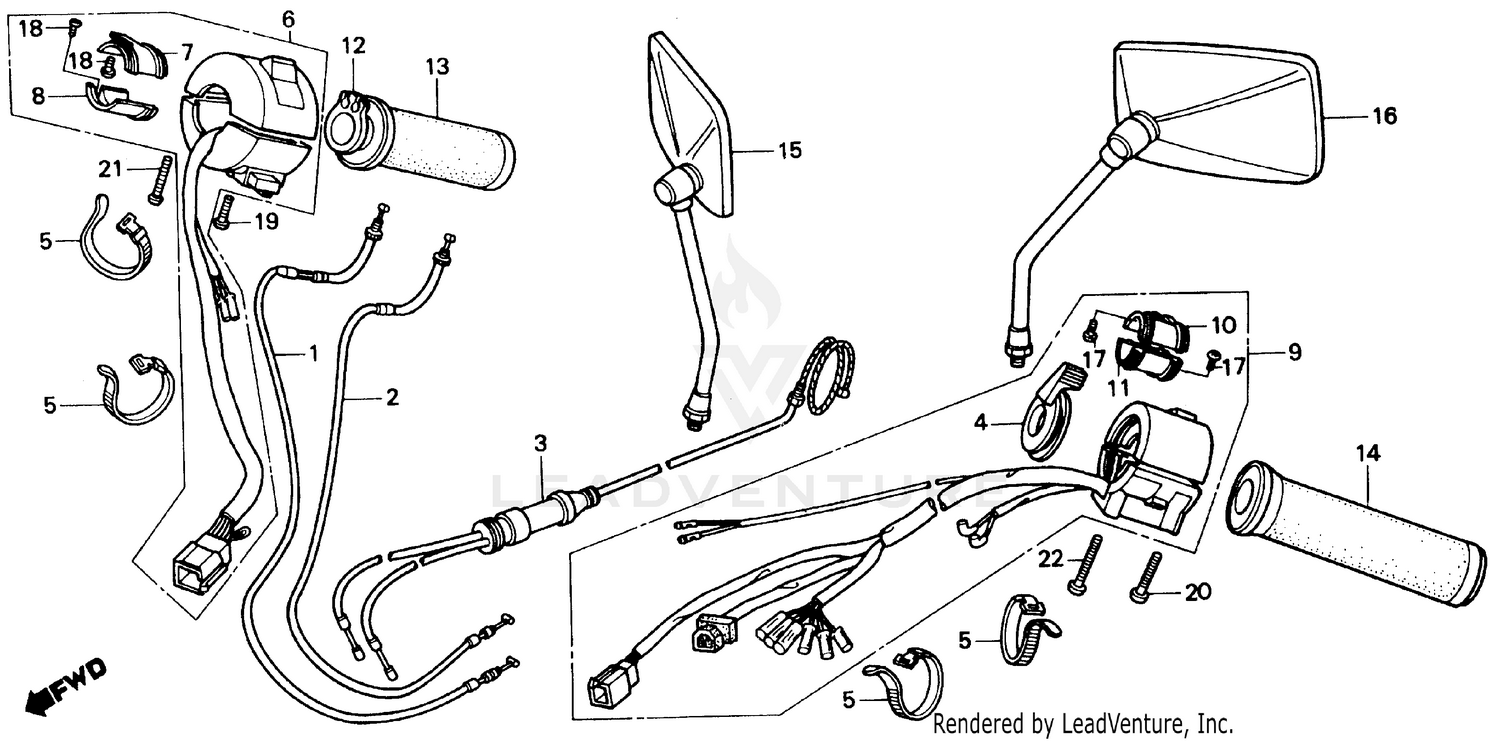

Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE (NOT AVAILABLE)
17910-MR6-670
|
$22.87 | ||
|
Unavailable |
|||
|
#2
CABLE B, THROTTLE (NOT AVAILABLE)
17920-MR6-670
|
$15.94 | ||
|
Unavailable |
|||
|
#3
CABLE, CHOKE
17950-MR6-670
|
$48.97 | ||
|
Unavailable |
|||
|
#4
LEVER, CHOKE
17962-MR6-000
|
$15.53 | ||
|
Unavailable |
|||
|
#5
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER STOP (NOT AVAILABLE)
35130-MR6-670
|
$82.86 | ||
|
Unavailable |
|||
|
#7
COLLAR (UPPER)
35132-MR6-670
|
$6.96 | ||
|
Unavailable |
|||
|
#8
COLLAR (LOWER) (NOT AVAILABLE)
35133-MR6-000
|
$5.78 | ||
|
Unavailable |
|||
|
#9
SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)
35200-MR6-670
|
$98.64 | ||
|
Unavailable |
|||
|
#10
COLLAR (UPPER) (NOT AVAILABLE)
35202-MR6-000
|
$5.78 | ||
|
Unavailable |
|||
|
#11
COLLAR (LOWER) (NOT AVAILABLE)
35203-MR6-000
|
$5.78 | ||
|
Unavailable |
|||
|
#12
PIPE, THROTTLE GRIP
53141-300-010
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRIP, L. HANDLE
53165-MN0-000
Superseded by 53166-KCR-000
|
$44.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
GRIP, L. HANDLE
53166-MN0-000
|
$26.98 | ||
|
Unavailable |
|||
|
#15
MIRROR, R.
88110-MG8-770
|
$60.47 | ||
|
Unavailable |
|||
|
#16
MIRROR, L.
88120-MG8-770
|
$73.47 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (3X8)
93500-03008-0H
|
$0.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN (3X8)
93500-03008-1H
Superseded by 93500-03008-0H
|
$0.84 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (3X10)
93500-03010-0H
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (3X10)
93500-03010-1H
Superseded by 93500-03010-0H
|
$0.87 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (5X20)
93500-05020-0B
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (5X22)
93500-05022-0B
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X25)
93500-05025-0B
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X32)
93500-05032-0B
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
