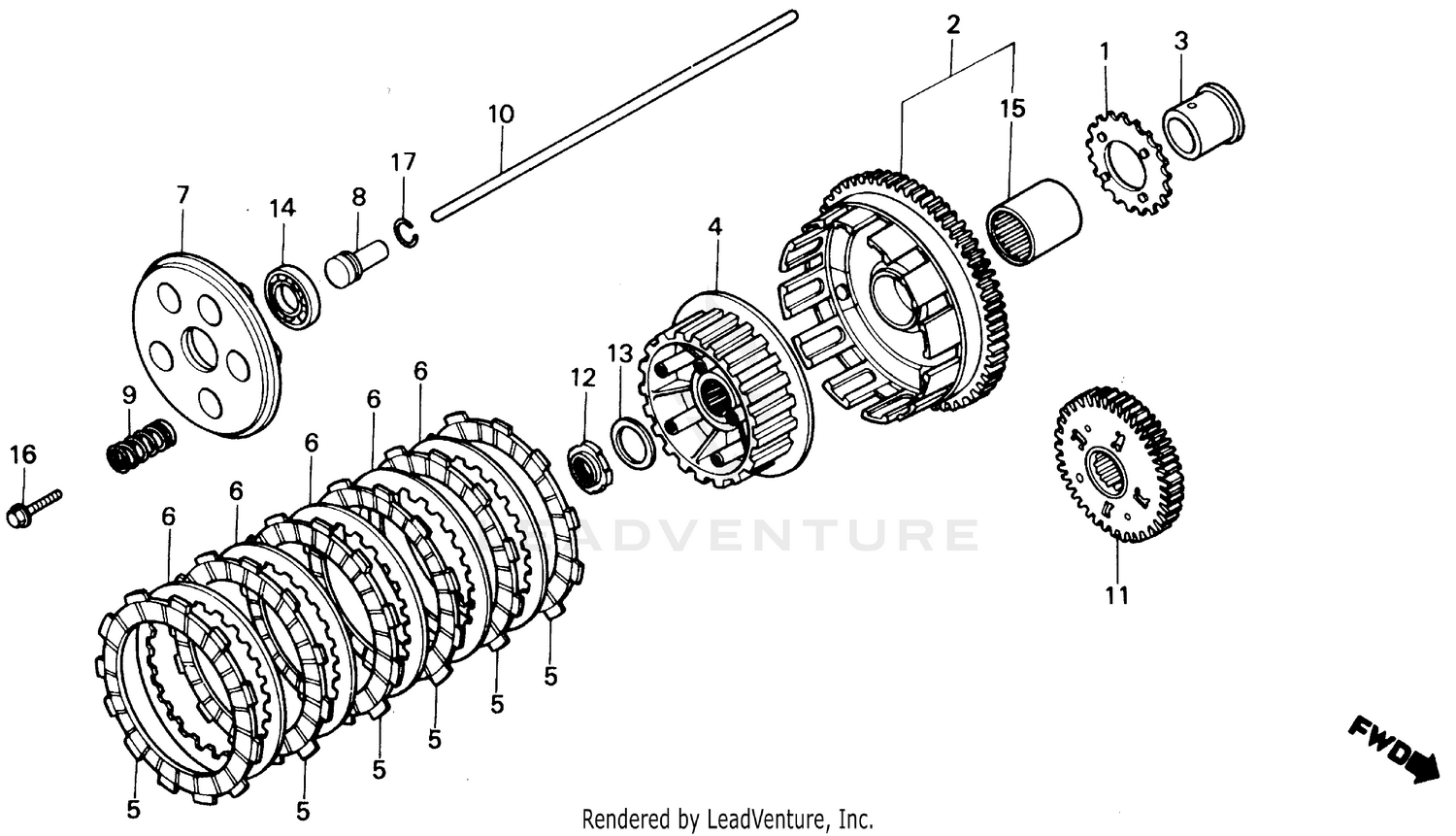

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)
15131-MB0-000
|
$28.30 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER)
22100-MR6-670
|
$337.25 | ||
|
Unavailable |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-ME9-000
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH
22120-MB1-770
Superseded by 22120-MN0-000
|
$84.42 | ||
|
Unavailable |
|||
|
#4
CENTER, CLUTCH
22120-MN0-000
|
$84.42 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-MB0-003
Superseded by 22201-MM5-000
|
$34.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-MM5-000
|
$34.40 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH
22321-MG8-000
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH
22321-283-000
Superseded by 22321-MG8-000
|
$18.71 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH PRESSURE
22350-MK3-770
|
$63.02 | ||
|
Unavailable |
|||
|
#8
PIECE, CLUTCH JOINT
22366-KE8-000
|
$9.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-KB4-670
Superseded by 22401-KT0-000
|
$6.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-KT0-000
|
$6.40 | ||
|
Unavailable |
|||
|
#10
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-ME9-000
|
$16.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GEAR ASSY., PRIMARY DRIVE
23110-MR6-670
|
$198.45 | ||
|
Unavailable |
|||
|
#12
NUT, LOCK (22MM)
90231-MK7-670
Superseded by 90231-MZ7-000
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING (22MM)
90432-MB0-010
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-003
|
$98.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-004
Superseded by 91024-MB0-003
|
$98.35 | ||
|
Unavailable |
|||
|
#16
BOLT-WASHER (6X20)
93404-06020-08
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, PISTON PIN (15MM)
94601-15000
|
$1.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
