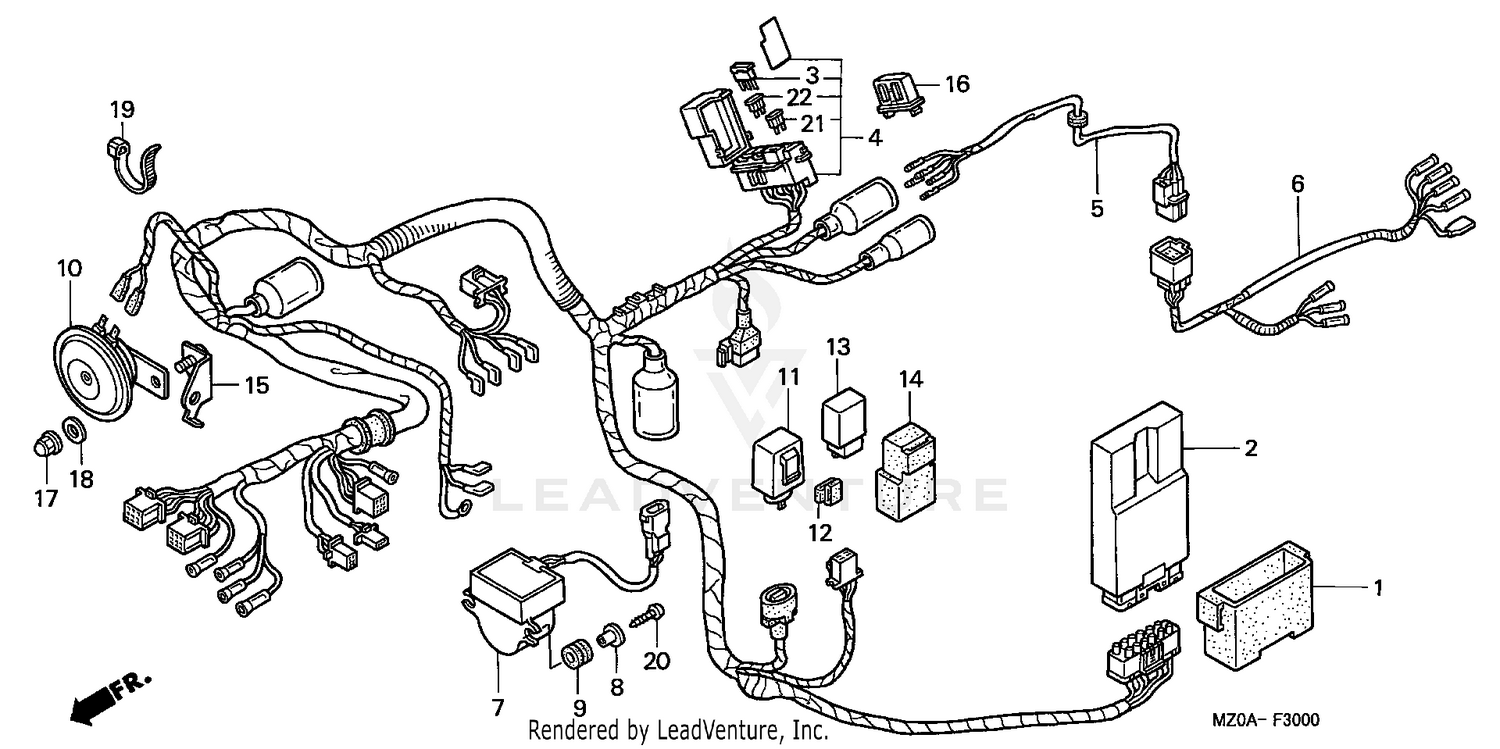

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SPARK UNIT
30405-MT6-000
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-MZ0-671
|
$252.44 | ||
|
Unavailable |
|||
|
#3
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE HARNESS
32100-MZ0-A80
|
$1,037.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-HARNESS, RR.
32102-MZ0-000
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-HARNESS, RR.
32102-MZ0-760
Superseded by 32102-MZ0-000
|
$10.89 | ||
|
Unavailable |
|||
|
#6
SUB-HARNESS, RR.
32103-MZ0-000
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS, RR.
32103-MZ0-760
Superseded by 32103-MZ0-000
|
$17.49 | ||
|
Unavailable |
|||
|
#7
SENSOR, STOP
35161-MZ0-003
Superseded by 35161-MZ0-023
|
$110.85 | ||
|
Unavailable |
|||
|
#7
SENSOR, STOP
35161-MZ0-013
Superseded by 35161-MZ0-023
|
$110.85 | ||
|
Unavailable |
|||
|
#8
COLLAR
35162-MN5-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
35163-MN5-003
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
HORN ASSY. (LOW)
38120-MZ0-A40
Superseded by 38120-MZ0-G20
|
$75.10 | ||
|
Unavailable |
|||
|
#11
RELAY, TURN SIGNAL (MITSUBA)
38301-KK9-952
|
$82.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUSPENSION, TURN SIGNAL RELAY
38306-GE7-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY, STARTER (MITSUBA)
38501-GN2-014
|
$60.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUSPENSION, STARTER RELAY (MITSUBA)
38506-GC7-611
|
$5.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
STAY, HORN
50330-MZ0-A40
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FUSE BOX
80105-MW3-600
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (8MM)
90301-SA0-000
Superseded by 90443-KF9-900
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (8MM)
90443-KF9-900
|
$5.37 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (10MM)
90502-MM8-610
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BAND, WIRE HARNESS
90650-MA6-720
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X25)
93911-14620
|
$1.82 | ||
|
Unavailable |
|||
|
#21
FUSE, MINI (5A)
98200-40500
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
