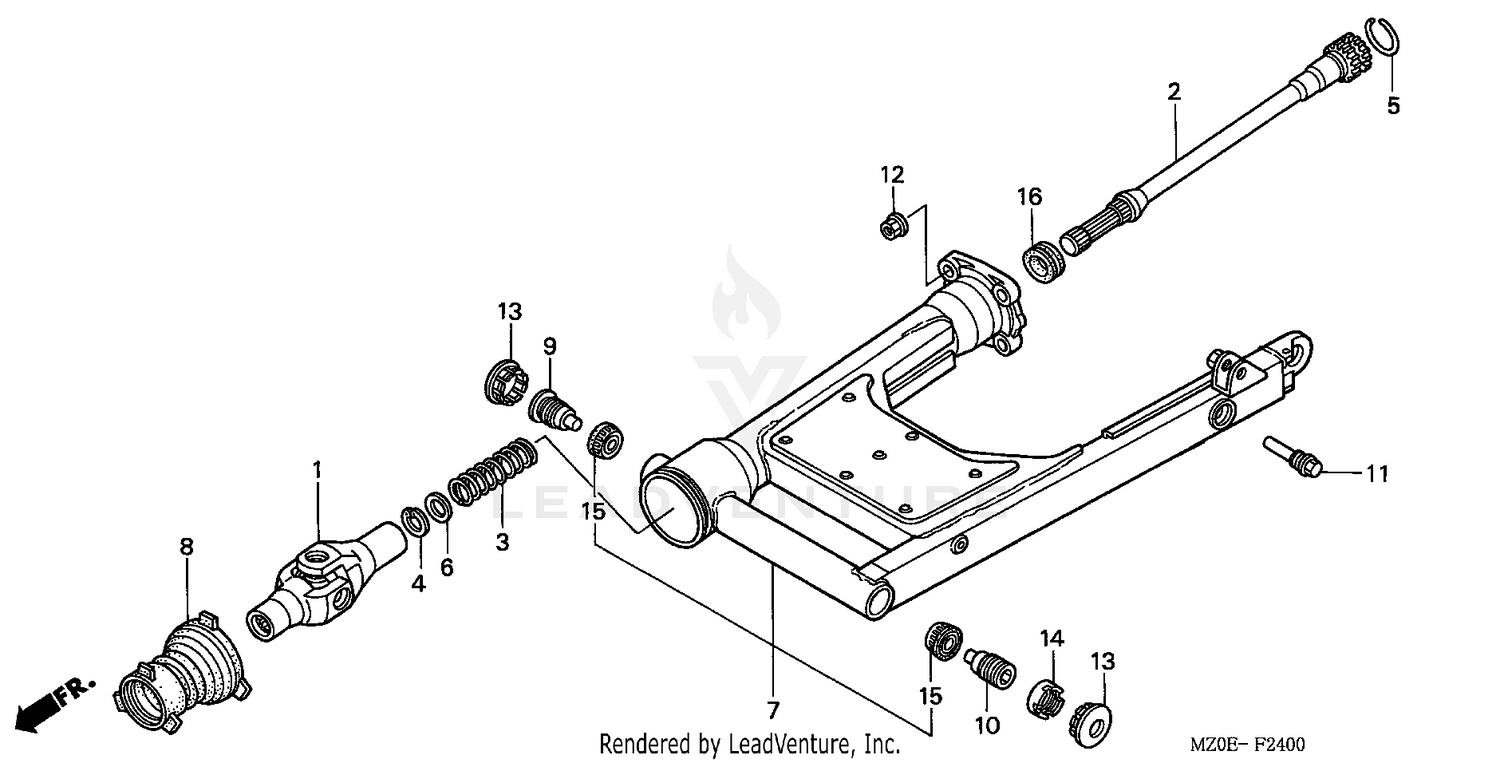

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, YOKE
40200-MZ0-A00
|
$246.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PROPELLER
40201-MZ0-A00
|
$277.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, PROPELLER SHAFT
40215-MN5-000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
40219-MG9-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
40221-MB0-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, PROPELLER SHAFT SPRING
40222-MN5-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWINGARM ASSY., RR. (NOT AVAILABLE)
52100-MZ0-A40
Superseded by 52100-MZ0-000
|
$559.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, JOINT
52104-MZ0-A40
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, R. SWINGARM PIVOT
90121-MAM-A60
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, L. SWINGARM PIVOT
90122-MAM-A60
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BRAKE STOPPER
90158-MZ0-000
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEX. (10MM)
90308-357-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, R. LOCK NUT
90312-MB0-700
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SWINGARM PIVOT LOCK
90355-469-000
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, TAPER ROLLER (17X40X23.5) (NSK)
91066-HA7-672
|
$75.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (27X43X7)
91261-ME9-005
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
