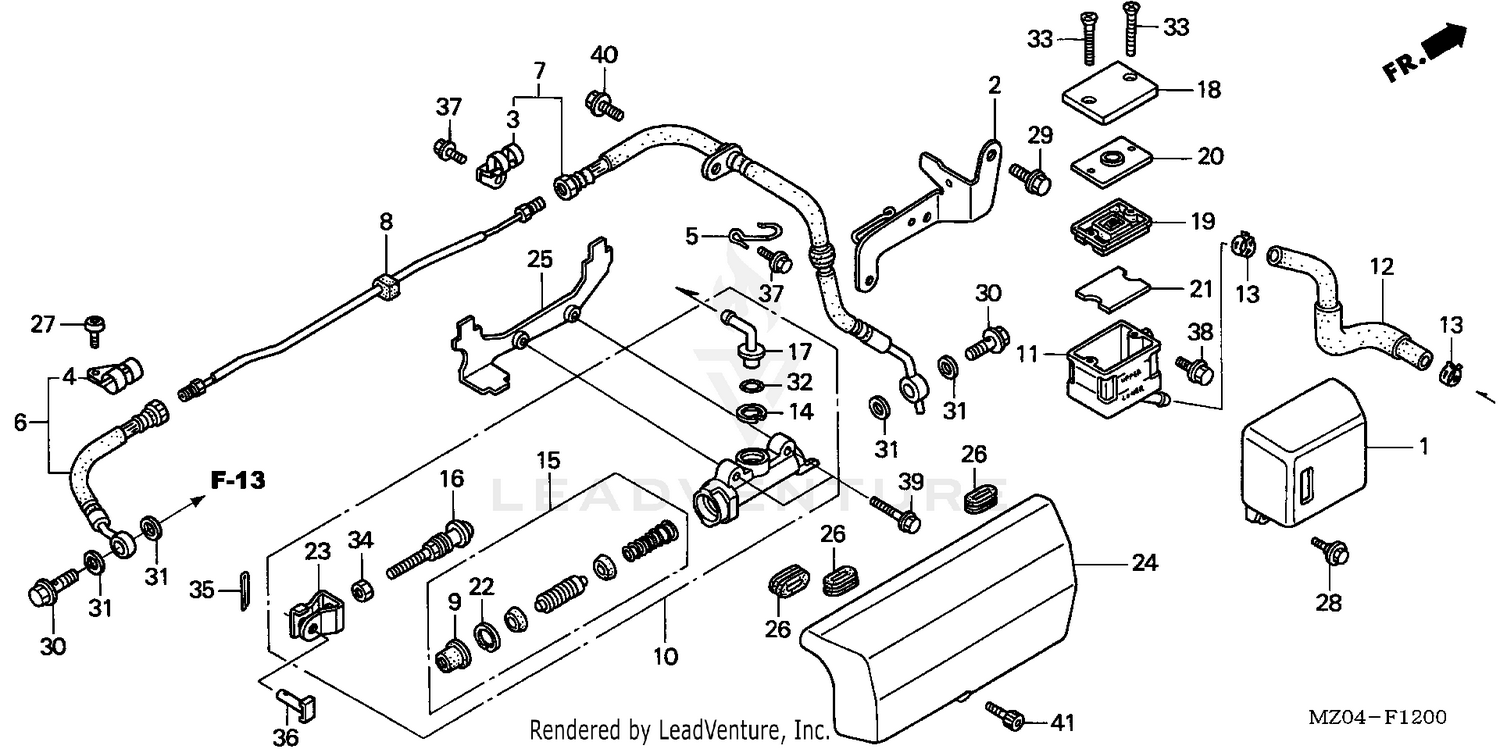

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. BRAKE OIL CUP
21341-MZ0-A40
|
$37.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, RR. BRAKE OIL CUP
21342-MZ0-000
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, RR. BRAKE HOSE (A)
43156-MN5-000
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP A, RR. BRAKE HOSE
43156-MZ0-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP B, RR. BRAKE HOSE
43157-MZ0-A00
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE A, RR. BRAKE
43310-MZ0-A50
|
$36.56 | ||
|
Unavailable |
|||
|
#7
HOSE B, RR. BRAKE
43313-MZ0-A50
Superseded by 43313-MZ0-A41
|
$29.20 | ||
|
Unavailable |
|||
|
#7
HOSE B, RR. BRAKE
43313-MZ0-A41
|
$29.20 | ||
|
Unavailable |
|||
|
#8
PIPE A, RR. BRAKE
43314-MZ0-000
|
$13.15 | ||
|
Unavailable |
|||
|
#9
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
43504-MZ0-760
Superseded by 43504-MB2-006
|
$12.16 | ||
|
Unavailable |
|||
|
#10
MASTER CYLINDER SUB-ASSY., RR.
43510-MZ0-006
|
$77.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SUB-ASSY., RR.
43510-MZ0-760
Superseded by 43510-MZ0-006
|
$77.33 | ||
|
Unavailable |
|||
|
#11
CUP, OIL
43511-KV3-831
|
$28.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUP, OIL
43511-MZ0-760
Superseded by 43511-KV3-831
|
$28.73 | ||
|
Unavailable |
|||
|
#12
HOSE, RR. BRAKE MASTER CYLINDER
43512-MZ0-000
|
$14.96 | ||
|
Unavailable |
|||
|
#13
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, MASTER CYLINDER OIL HOSE
43514-MZ0-760
Superseded by 43514-KS6-701
|
$15.89 | ||
|
Unavailable |
|||
|
#14
CIRCLIP, RR. MASTER CYLINDER
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP, RR. MASTER CYLINDER
43517-MZ0-760
Superseded by 43517-KS6-701
|
$4.80 | ||
|
Unavailable |
|||
|
#15
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-305
Superseded by 43520-MB2-315
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MZ0-760
Superseded by 43520-MB2-315
|
$56.36 | ||
|
Unavailable |
|||
|
#16
ROD, PUSH
43530-MJ0-006
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH
43530-MZ0-760
Superseded by 43530-MJ0-006
|
$23.76 | ||
|
Unavailable |
|||
|
#17
CONNECTOR, MASTER CYLINDER
45503-KV3-006
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONNECTOR, MASTER CYLINDER
45503-MZ0-760
Superseded by 45503-KV3-006
|
$11.38 | ||
|
Unavailable |
|||
|
#18
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, MASTER CYLINDER (COO)
45513-MZ0-760
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#19
DIAPHRAGM
45520-GW3-980
Superseded by 45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Unavailable |
|||
|
#20
PLATE, DIAPHRAGM
45521-GW3-980
Superseded by 45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Unavailable |
|||
|
#21
FLOAT, FR. MASTER CYLINDER
45523-HC4-841
|
$4.99 | ||
|
Unavailable |
|||
|
#21
FLOAT, FR. MASTER CYLINDER (NISSIN)
45523-MZ0-760
Superseded by 45523-HC4-841
|
$4.99 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
46182-MZ0-760
Superseded by 46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
46182-500-013
|
$5.13 | ||
|
Unavailable |
|||
|
#23
JOINT, BRAKE ROD
46504-KV6-702
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT, BRAKE ROD
46504-MZ0-760
Superseded by 46504-KV6-702
|
$9.85 | ||
|
Unavailable |
|||
|
#24
COVER, RR. BRAKE MASTER CYLINDER
46550-MZ0-000
|
$126.74 | ||
|
Unavailable |
|||
|
#25
BRACKET, RR. MASTER CYLINDER COVER
46551-MZ0-A00
|
$20.64 | ||
|
Unavailable |
|||
|
#26
RUBBER, ENGINE SIDE COVER
83124-MN5-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (6X12)
90106-MZ0-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6MM)
90113-KW3-000
|
$3.17 | ||
|
Unavailable |
|||
|
#29
BOLT, SPECIAL FLANGE (8X12)
90125-KR3-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
O-RING (14.8X2.4)
91212-MZ0-760
Superseded by 91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Unavailable |
|||
|
#33
SCREW, FLAT (4X40)
93600-04040-1G
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT, SOCKET (6X10)
96700-06010-00
|
$3.78 | ||
|
Unavailable |
|||
