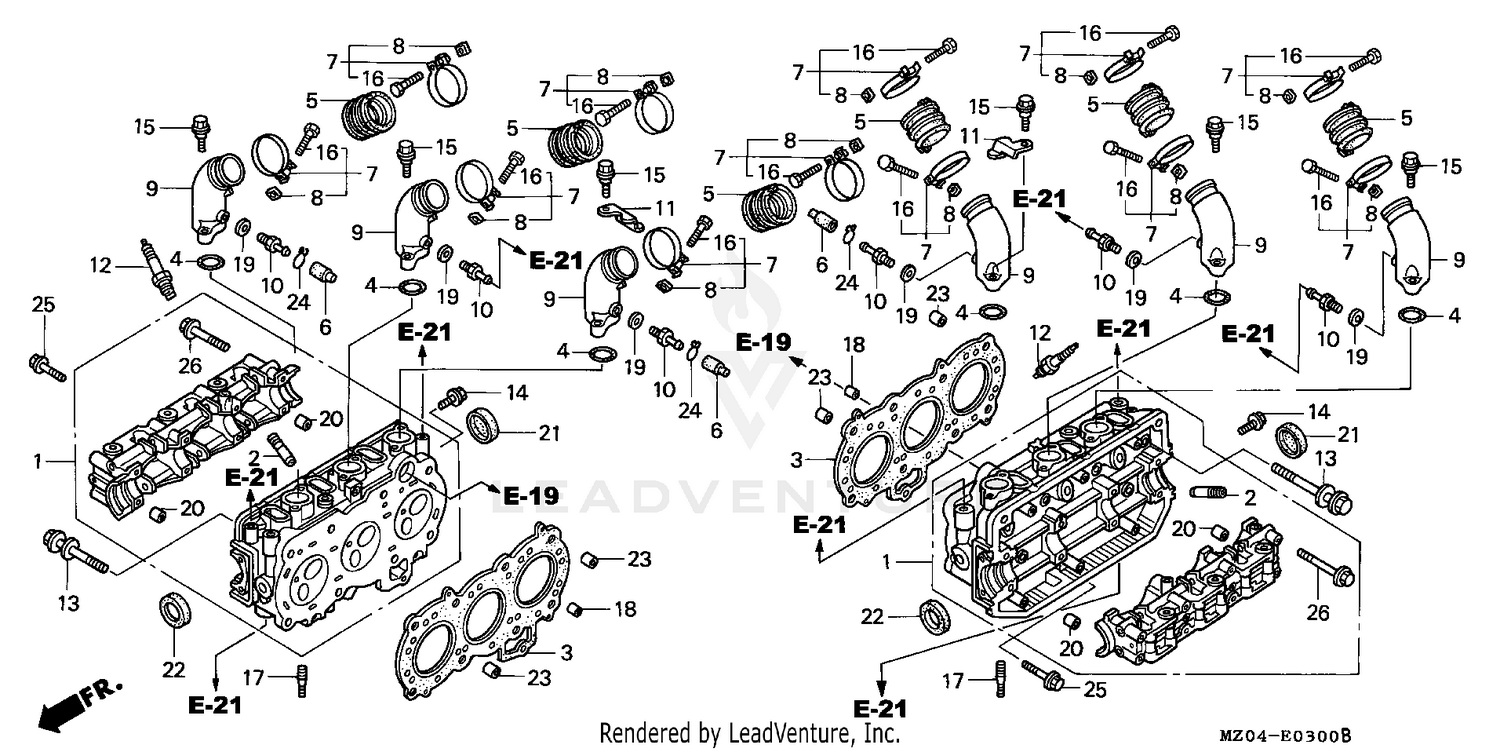

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12200-MZ0-A00
|
$792.91 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OS)
12204-MN5-305
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MN5-004
|
$36.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD (0.75/1.00)
12251-MN5-305
|
$87.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MZ0-760
Superseded by 12251-MN5-004
|
$36.36 | ||
|
Unavailable |
|||
|
#4
O-RING (2.4X29)
16075-GHB-B70
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, CARBURETOR
16211-MZ0-000
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, BOOST
16215-MV4-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16218-MZ0-A40
|
$7.03 | ||
|
Unavailable |
|||
|
#8
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
MANIFOLD, IN.
17110-MZ0-000
|
$135.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, PRESSURE BOOST (D)
17113-MT2-000
|
$7.21 | ||
|
Unavailable |
|||
|
#11
STAY, AIR FEED PIPE
17115-MZ0-000
|
$14.64 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR6EA-9) (NGK)
31916-MZ0-760
Superseded by 98069-56916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR7EA-9) (NGK)
31917-MZ0-760
Superseded by 98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR8EA-9) (NGK)
31918-HM5-630
Superseded by 98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR8EA-9) (NGK)
31918-MZ0-760
Superseded by 98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR6EA-9) (NGK)
98069-56916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (9X91)
90010-MT8-003
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X14)
90016-MN5-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE CAP (6X26)
90022-MZ0-000
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RECESSED (5X28)
90023-MM5-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD (8-6X40)
90035-MN5-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
ORIFICE (2.0)
90084-MN5-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (5MM)
90452-323-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (10X13.5)
90701-GB4-680
|
$2.96 | ||
|
Unavailable |
|||
|
#21
SEAL, CAP (43X9)
91209-463-013
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (27X43X9)
91209-371-003
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X40)
95701-06040-08
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X80)
95701-08080-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
