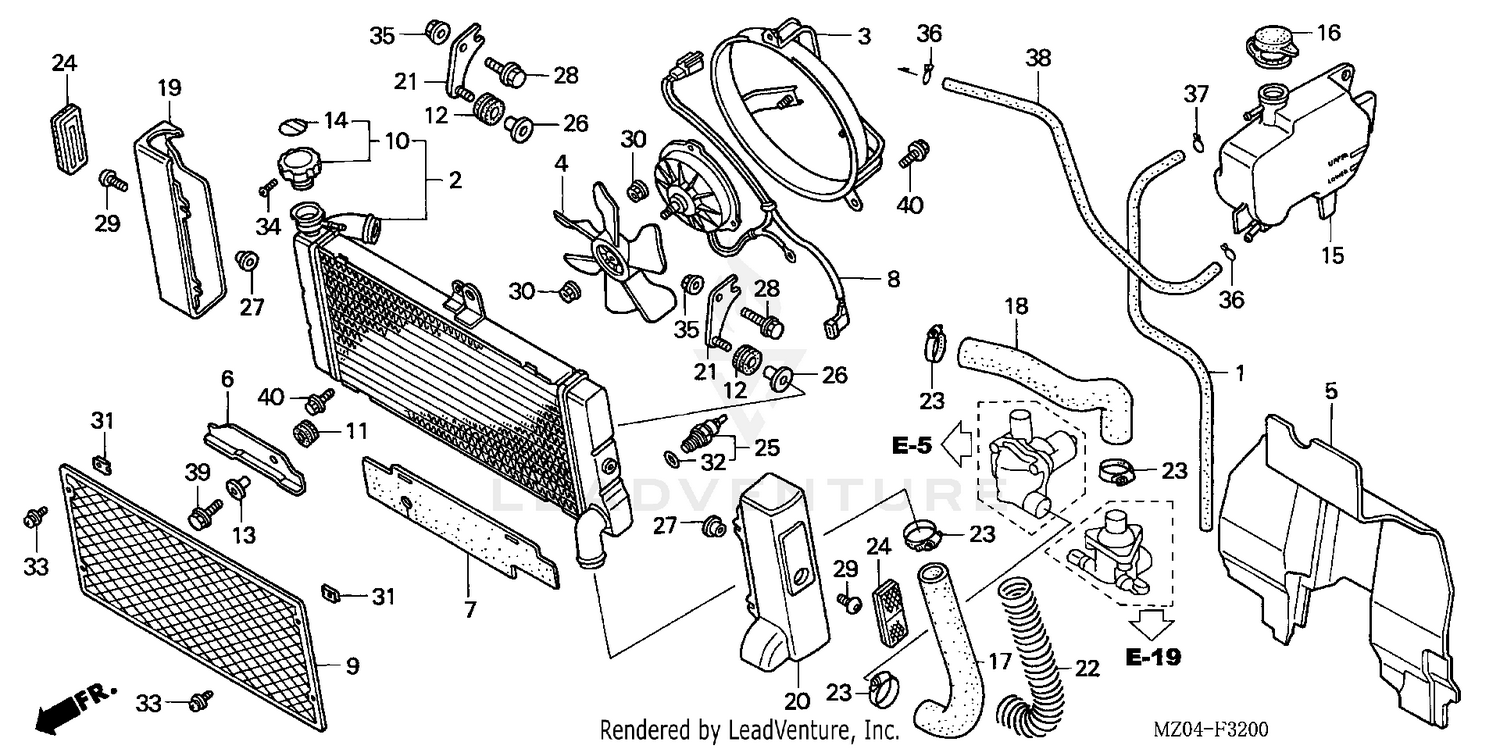

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULK HOSE, VACUUM (5X3000) (5X650)
95005-50003-30M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR
19010-MZ0-003
|
$844.21 | ||
|
Unavailable |
|||
|
#3
SHROUD
19015-MZ0-003
|
$90.04 | ||
|
Unavailable |
|||
|
#4
FAN, COOLING (TOYO)
19020-MM5-003
|
$48.30 | ||
|
Unavailable |
|||
|
#5
PLATE, AIR GUIDE
19020-MZ0-000
|
$119.07 | ||
|
Unavailable |
|||
|
#6
PLATE, AIR GUIDE (UPPER)
19021-MZ0-000
|
$23.37 | ||
|
Unavailable |
|||
|
#7
RUBBER, HEAT GUARD
19022-MZ0-000
|
$21.62 | ||
|
Unavailable |
|||
|
#8
MOTOR ASSY., FAN
19030-MZ0-003
|
$274.95 | ||
|
Unavailable |
|||
|
#9
GRILLE, RADIATOR
19032-MZ0-000
|
$129.28 | ||
|
Unavailable |
|||
|
#10
CAP, RADIATOR
19045-MY3-671
Superseded by 19045-MY3-621
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, RADIATOR SETTING
19051-KA4-700
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
19055-MV9-921
Superseded by 19055-MV9-881
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, RADIATOR RESERVE
19101-MZ0-000
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVE TANK
19104-MB0-700
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, RADIATOR (LOWER)
19115-MZ0-000
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RADIATOR (UPPER)
19116-MZ0-000
|
$30.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, R. RADIATOR
19118-MZ0-000
|
$173.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, L. RADIATOR
19119-MZ0-000
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, RADIATOR
19120-MZ0-000
|
$38.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR, RADIATOR HOSE
19123-MBY-000
|
$38.75 | ||
|
Unavailable |
|||
|
#23
CLAMP, RADIATOR HOSE
19509-MM5-003
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
REFLECTOR, FR. REFLEX
33740-KR3-671
|
$37.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWITCH ASSY., THERMO
37760-MT2-003
Superseded by 37760-MR1-003
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR, CHAIN CASE TAIL
40521-437-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, TAILLIGHT
84705-KE6-890
|
$1.68 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (10X50)
90102-MZ0-000
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (6X10)
90105-MM4-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CLIP (4MM)
90344-MF9-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (13.5X1.4)
91307-PH7-660
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
O-RING (13.5X1.4)
91307-611-000
Superseded by 91307-PH7-660
|
$3.20 | ||
|
Unavailable |
|||
|
#33
SCREW-WASHER (4X10)
93891-04010-07
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TAPPING (3X8)
93901-22180
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE (10MM)
90303-428-900
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, FLANGE (10MM)
94050-10070
Superseded by 90303-428-900
|
$4.20 | ||
|
Unavailable |
|||
|
#36
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
TUBE, RADIATOR
17309-MZ0-000
|
$13.94 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X22)
95701-06022-07
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
