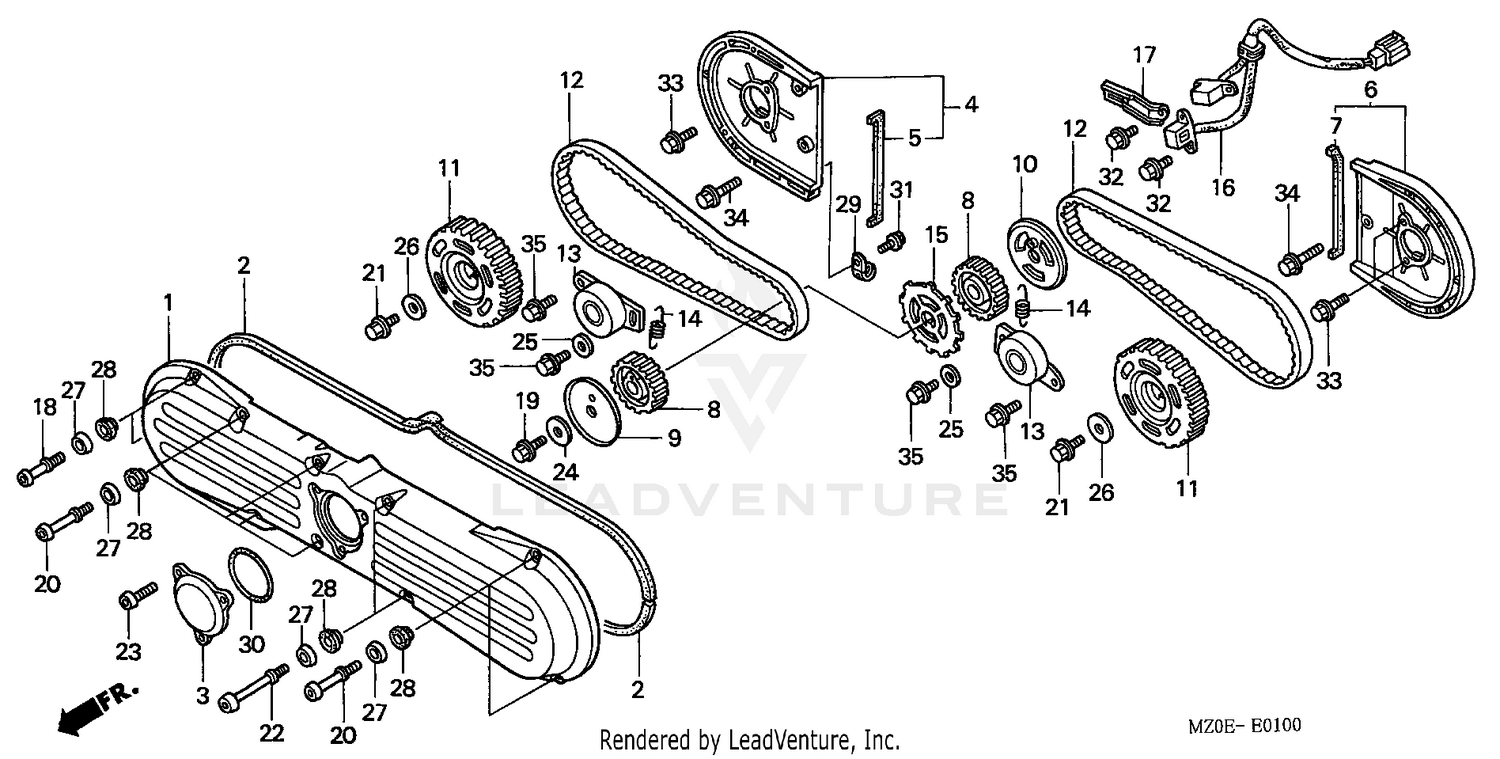

Front Cover + Timing Belt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FR.
11511-MZ0-000
|
$602.21 | ||
|
Unavailable |
|||
|
#2
GASKET, FR. COVER
11515-MZ0-000
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, TIMING
11531-MZ0-000
|
$81.40 | ||
|
Unavailable |
|||
|
#4
COVER, R. TIMING BELT
11540-MZ0-000
|
$181.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, R. TIMING BELT COVER
11542-MN5-300
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, L. TIMING BELT
11550-MZ0-000
|
$205.89 | ||
|
Unavailable |
|||
|
#7
GASKET, L. TIMING BELT COVER
11552-MN5-300
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
PULLEY, TIMING BELT DRIVE
13621-MN5-003
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
PULLEY, TIMING BELT DRIVE
13621-MZ0-760
Superseded by 13621-MN5-003
|
$25.22 | ||
|
Unavailable |
|||
|
#9
PLATE A, TIMING BELT GUIDE
13622-MT8-000
|
$3.65 | ||
|
Unavailable |
|||
|
#10
PLATE B, TIMING BELT GUIDE
13623-MN5-000
|
$3.65 | ||
|
Unavailable |
|||
|
#11
PULLEY, TIMING BELT DRIVEN
14210-MN5-000
|
$85.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BELT, TIMING
14401-MN5-004
|
$119.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
ADJUSTER, TIMING BELT
14510-MG9-008
|
$160.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TIMING BELT ADJUSTER
14516-MN5-000
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROTOR, PULSER
30291-MN5-000
|
$22.22 | ||
|
Unavailable |
|||
|
#16
GENERATOR ASSY., IGNITION PULSE
30300-MZ0-003
|
$111.68 | ||
|
Unavailable |
|||
|
#17
CLAMP, PULSER WIRE
30305-MN5-000
|
$4.11 | ||
|
Unavailable |
|||
|
#18
BOLT, SOCKET SPECIAL (6X17)
90004-MZ0-000
|
$3.69 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (12X30)
90005-MN5-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET SPECIAL (6X23)
90005-MZ0-000
|
$4.18 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X20)
90006-MN5-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET SPECIAL (6X47)
90006-MZ0-000
|
$6.12 | ||
|
Unavailable |
|||
|
#23
BOLT, SOCKET SPECIAL (6X18)
90007-MZ0-000
|
$2.74 | ||
|
Unavailable |
|||
|
#24
WASHER (12X33X4)
90402-MN5-000
|
$10.61 | ||
|
Unavailable |
|||
|
#25
WASHER (8MM)
90406-371-000
|
$4.55 | ||
|
Unavailable |
|||
|
#26
WASHER, SPECIAL (28X8.5X4.0)
90435-611-000
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, MOUNTING RUBBER
90541-MZ0-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER, MOUNTING
90542-MZ0-000
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP (4X50)
90601-KJ9-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (75X2.5)
91301-107-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X28)
95701-06028-08
|
$2.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (8X22)
95701-08022-08
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
