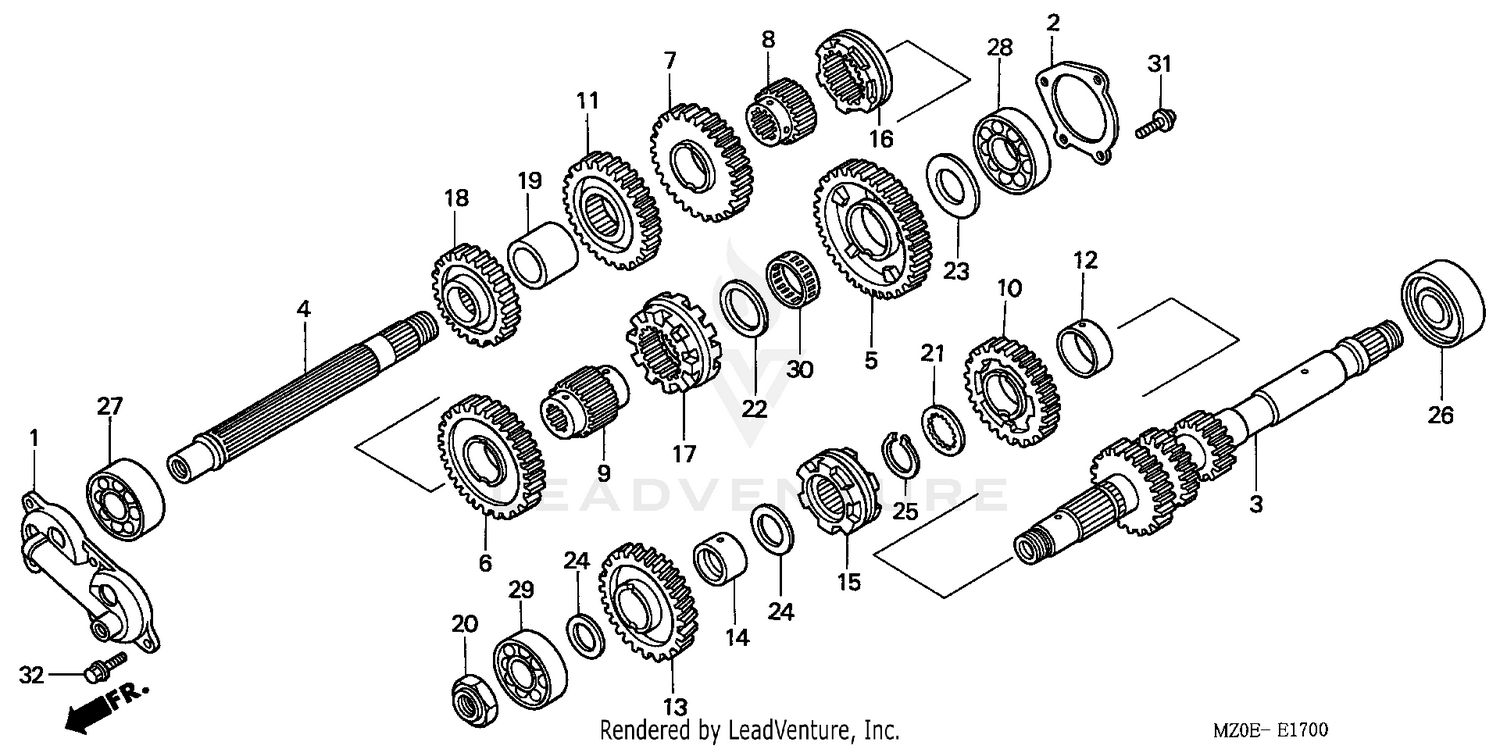

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, TRANSMISSION BEARING
23150-MN5-000
|
$89.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, COUNTERSHAFT BEARING SETTING
23161-MN5-000
|
$14.15 | ||
|
Unavailable |
|||
|
#3
SHAFT, MAIN (24T/18T/15T)
23210-MAM-L40
|
$288.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
COUNTERSHAFT
23220-MN5-000
|
$153.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT LOW (40T)
23421-MT8-000
|
$149.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (31T)
23441-MZ0-000
|
$116.09 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (31T)
23451-MZ0-000
|
$106.77 | ||
|
Unavailable |
|||
|
#8
COLLAR, SPLINE (28X43X34.4)
23456-MT8-000
|
$84.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, SPLINE (28X43X59.4) (24T)
23457-MN5-000
|
$103.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (30T)
23461-MZ0-000
|
$106.77 | ||
|
Unavailable |
|||
|
#11
GEAR, COUNTERSHAFT FOURTH (30T)
23471-MZ0-000
|
$106.77 | ||
|
Unavailable |
|||
|
#12
COLLAR (28MM)
23472-MT3-000
|
$31.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (36T)
23481-MZ0-000
|
$112.98 | ||
|
Unavailable |
|||
|
#14
COLLAR (23X30X17.5)
23482-MZ0-000
|
$12.58 | ||
|
Unavailable |
|||
|
#15
SHIFTER, FR.
23483-MZ0-000
|
$55.47 | ||
|
Unavailable |
|||
|
#16
SHIFTER, CENTER
23484-MZ0-000
|
$51.29 | ||
|
Unavailable |
|||
|
#17
SHIFTER, RR.
23485-MZ0-000
|
$54.99 | ||
|
Unavailable |
|||
|
#18
GEAR, COUNTERSHAFT FIFTH (29T)
23491-MZ0-000
|
$109.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR (27.8X35X28)
23492-MT8-000
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (22MM)
90201-MZ0-000
|
$13.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, SPLINE (28X34X1.5)
90451-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (35.2X46X1.6)
90467-MN5-000
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (25X47X2.6)
90468-MN5-000
|
$10.24 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (23X35X2)
90471-MZ0-000
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (28MM)
90602-MM5-000
Superseded by 90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
Unavailable |
|||
|
#26
BEARING, BALL (28X54X20.6) (NTN CORP.)
91001-MN5-003
|
$84.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (63/22) (KOYO)
91003-MN5-003
|
$34.01 | ||
|
Unavailable |
|||
|
#28
BEARING, RADIAL BALL (6305) (NTN CORP.)
91006-MN5-003
|
$38.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (23X62X17)
91006-MZ0-003
|
$19.65 | ||
|
Unavailable |
|||
|
#30
BEARING, NEEDLE (35X40X16) (NTN CORP.)
91014-MN5-003
|
$21.13 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
