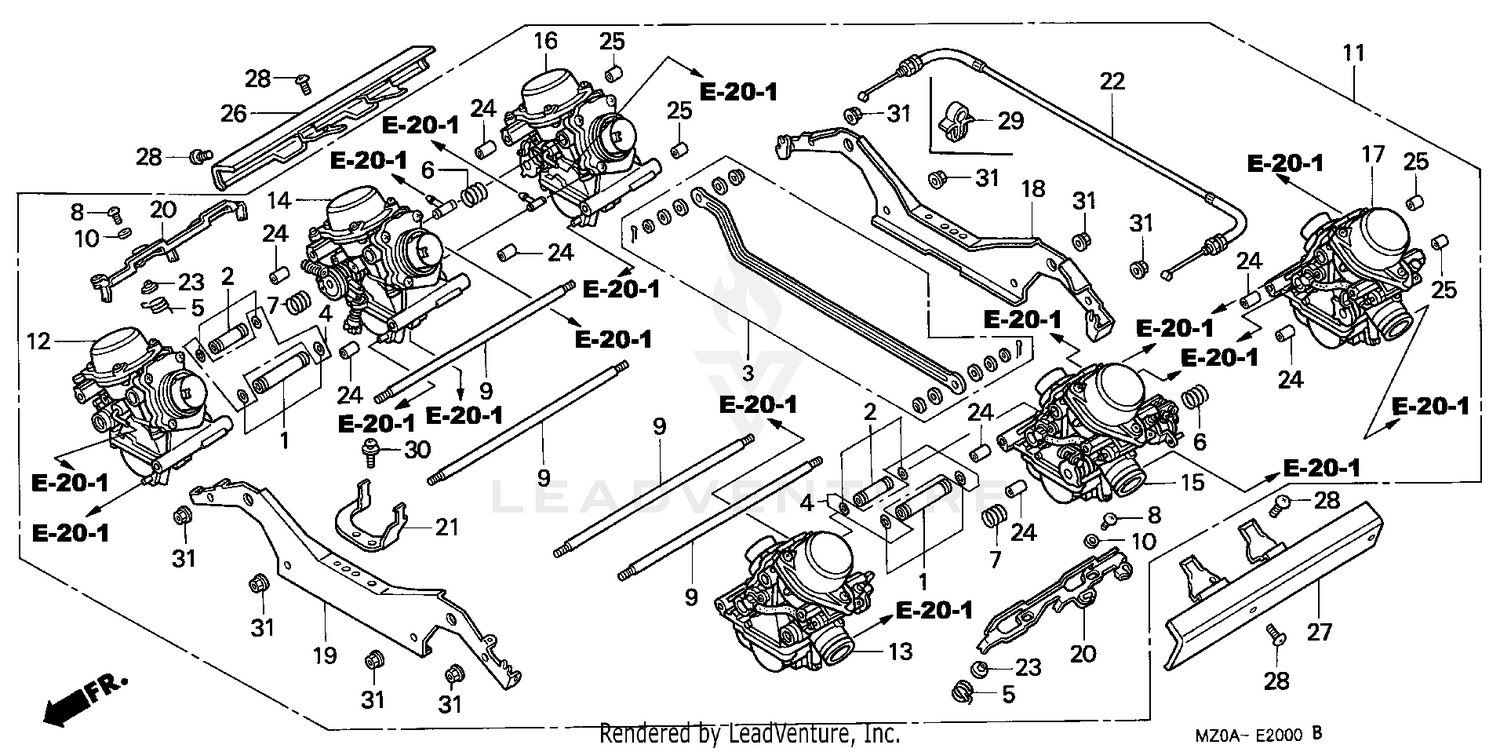

Carburetor (assy.) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT SET, FUEL
16024-MZ0-670
|
$42.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT SET
16027-MZ0-670
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER SET, LINK
16035-MZ0-000
|
$90.30 | ||
|
Unavailable |
|||
|
#4
GASKET B SET
16040-MZ1-790
|
$15.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPRING, TORSION COIL
16051-MZ0-000
|
$3.96 | ||
|
Unavailable |
|||
|
#6
SPRING
16053-MA6-003
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, THROTTLE THRUST
16053-MZ0-000
|
$5.05 | ||
|
Unavailable |
|||
|
#8
SCREW-WASHER
16081-KAZ-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
16083-MZ0-A00
|
$13.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
16085-MV4-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARBURETOR ASSY. (VPK0J A)
16100-MZ0-A00
|
$2,678.59 | ||
|
Unavailable |
|||
|
#12
CARBURETOR ASSY. 1
16101-MZ0-A00
|
$470.72 | ||
|
Unavailable |
|||
|
#13
CARBURETOR ASSY. 2
16102-MZ0-A00
|
$470.72 | ||
|
Unavailable |
|||
|
#14
CARBURETOR ASSY. 3
16103-MZ0-A00
|
$459.69 | ||
|
Unavailable |
|||
|
#15
CARBURETOR ASSY. 4
16104-MZ0-A00
|
$470.72 | ||
|
Unavailable |
|||
|
#16
CARBURETOR ASSY. 5
16105-MZ0-A00
|
$459.69 | ||
|
Unavailable |
|||
|
#17
CARBURETOR ASSY. 6
16106-MZ0-A00
|
$484.85 | ||
|
Unavailable |
|||
|
#18
PLATE, STAY
16119-MZ0-000
|
$96.53 | ||
|
Unavailable |
|||
|
#19
PLATE, STAY
16120-MZ0-000
|
$96.53 | ||
|
Unavailable |
|||
|
#20
LEVER, STARTER
16121-MZ0-000
|
$31.06 | ||
|
Unavailable |
|||
|
#21
STAY, AIR INJECTION CONTROL VALVE
16129-MZ0-000
|
$14.17 | ||
|
Unavailable |
|||
|
#22
CABLE, CHOKE
16130-MZ0-000
|
$23.82 | ||
|
Unavailable |
|||
|
#23
COLLAR
16175-MZ1-000
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL (7.9X20)
16178-MAS-600
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL
16178-MZ0-000
|
$4.91 | ||
|
Unavailable |
|||
|
#26
COVER, R. CARBURETOR
16301-MZ0-A40
|
$114.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, L. CARBURETOR
16302-MZ0-A40
|
$120.11 | ||
|
Unavailable |
|||
|
#28
SCREW, SPECIAL (5X10)
90111-MZ0-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, HOOD OPEN WIRE
91504-SL0-003
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (6X10)
93892-06010-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (6X10)
93892-06010-10
Superseded by 93892-06010-00
|
$1.10 | ||
|
Unavailable |
|||
|
#31
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
