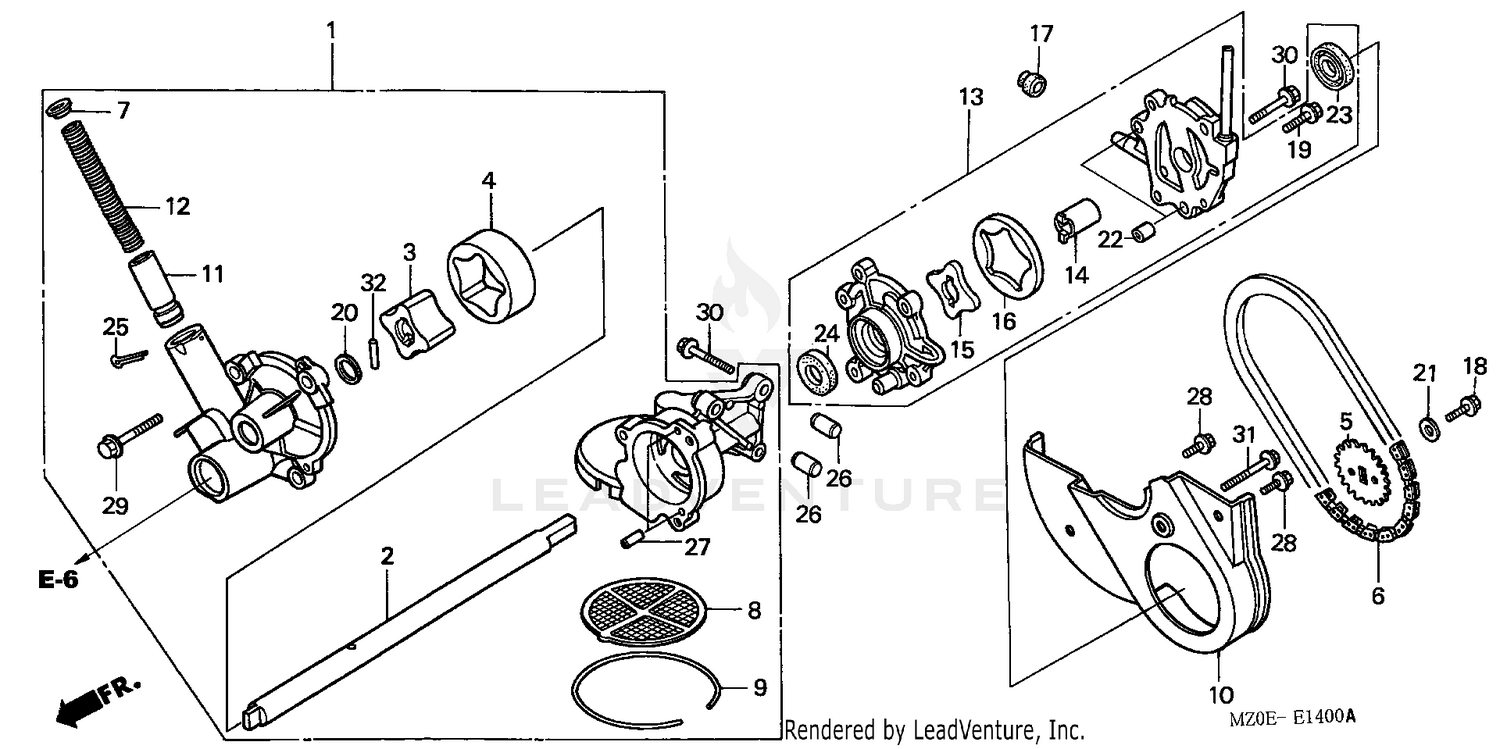

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15110-MN5-030
|
$289.98 | ||
|
Unavailable |
|||
|
#2
SHAFT, OIL PUMP
15111-MN5-020
|
$32.67 | ||
|
Unavailable |
|||
|
#3
ROTOR (INNER)
15124-MJ0-000
|
$17.37 | ||
|
Unavailable |
|||
|
#4
ROTOR (OUTER)
15125-MJ0-000
|
$27.02 | ||
|
Unavailable |
|||
|
#5
SPROCKET, OIL PUMP DRIVEN (24T)
15134-MN5-000
|
$32.89 | ||
|
Unavailable |
|||
|
#6
CHAIN, OIL PUMP DRIVE (SC-0412HX54L) (DAIDO)
15135-MN5-003
|
$51.31 | ||
|
Unavailable |
|||
|
#7
SEAT, RELIEF VALVE
15142-371-000
|
$4.09 | ||
|
Unavailable |
|||
|
#8
SCREEN, OIL PUMP
15150-MG7-000
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SNAP (92MM)
15160-PA5-003
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, OIL PUMP CHAIN
15171-MN5-000
|
$71.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, RELIEF
15231-MN5-010
|
$11.73 | ||
|
Unavailable |
|||
|
#12
SPRING, RELIEF VALVE
15232-MN5-000
|
$3.43 | ||
|
Unavailable |
|||
|
#13
PUMP ASSY., SCAVENGE OIL
15240-MAM-000
|
$162.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, OIL PUMP
15243-MN5-010
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROTOR (INNER)
15244-MN5-000
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROTOR (OUTER)
15245-MN5-000
|
$27.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET, SCAVENGE OIL PUMP
15247-MN5-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X16)
90021-KE8-010
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25) (CT200)
90121-952-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (12MM)
90456-MC7-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (6X2.3)
90488-MB0-000
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (8X14)
90501-MB0-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (16X24X4)
91211-MN5-003
|
$6.59 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (13X21X4)
91212-MN5-003
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#25
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#25
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#26
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN, DOWEL (5X8)
94303-05080
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X32)
95701-06032-08
|
$1.97 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X45)
95701-06045-08
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROLLER (5X17.8)
96220-50178
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
