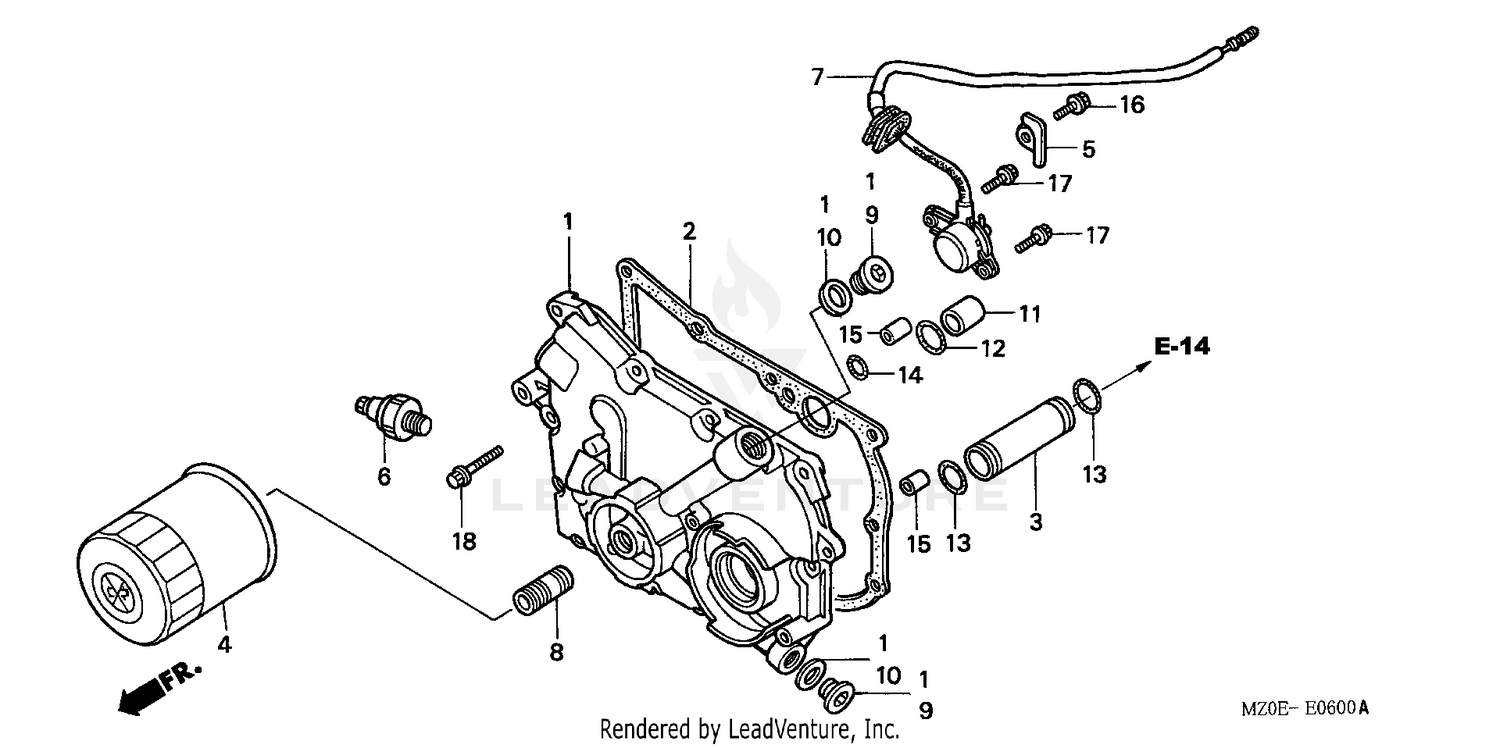

Transmission Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, TRANSMISSION
11360-MZ0-000
|
$302.05 | ||
|
Unavailable |
|||
|
#2
GASKET, TRANSMISSION COVER
11391-MN5-650
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, TRANSMISSION COVER
11391-MZ0-760
Superseded by 11391-MN5-650
|
$25.20 | ||
|
Unavailable |
|||
|
#3
PIPE, OIL PASSAGE
15311-MN5-000
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER, OIL (WAKO FILTER)
15410-MM9-013
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP, CHANGE SWITCH WIRE
30411-MN5-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., NEUTRAL (TOYO)
35759-MZ0-A01
|
$83.97 | ||
|
Unavailable |
|||
|
#8
BOSS, OIL FILTER
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SEALING (20MM)
90048-MN5-000
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (20MM)
90441-MN5-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (14X12)
90706-MN5-000
|
$4.03 | ||
|
Unavailable |
|||
|
#12
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (15.8X2.5) (ARAI)
91301-MC7-003
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (15.8X2.5) (ARAI)
91305-MN5-003
Superseded by 91301-MC7-003
|
$5.16 | ||
|
Unavailable |
|||
|
#14
O-RING (5.4X3.2) (NOK)
91315-MN5-004
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
