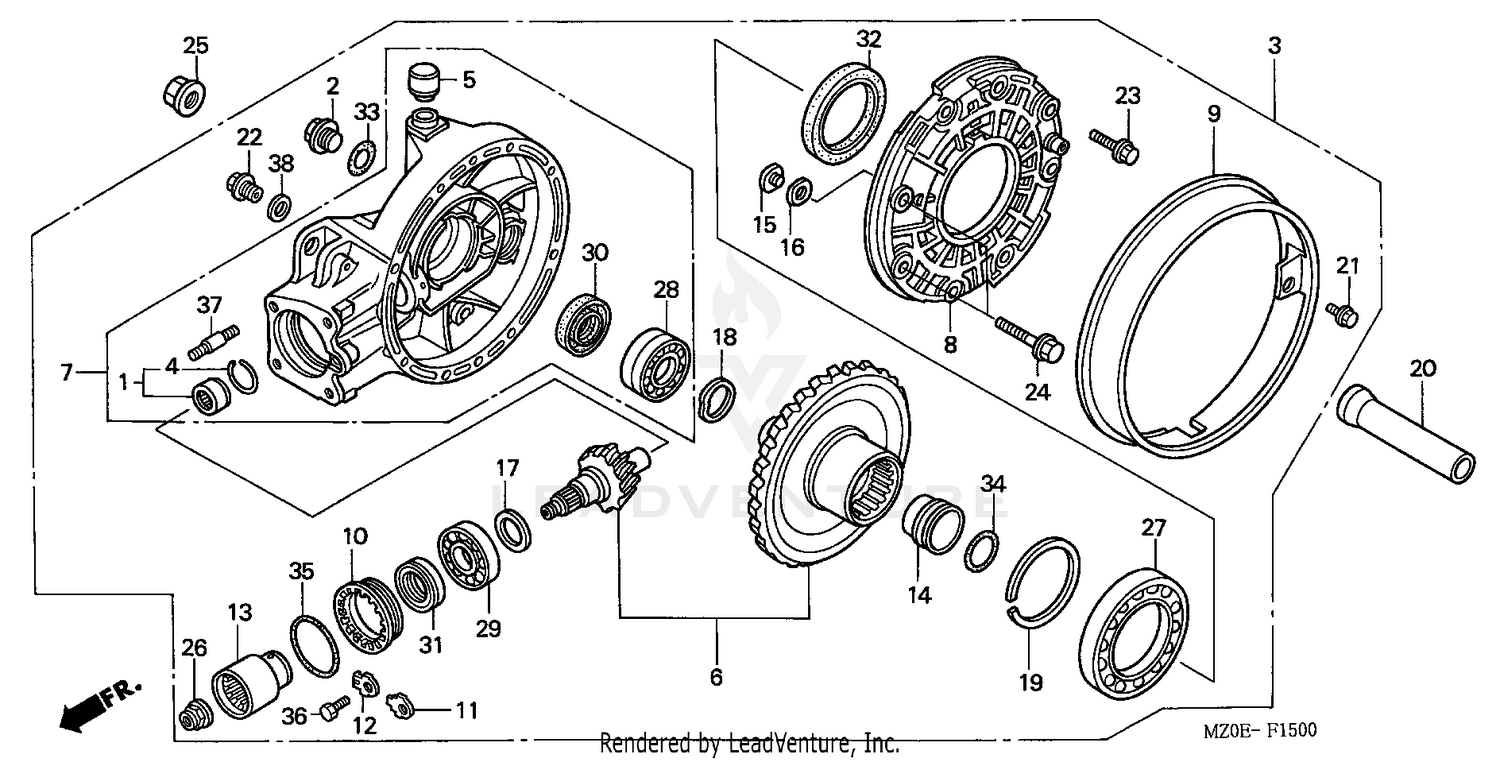

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-MZ0-000
|
$37.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
GEAR ASSY., FINAL
41300-MZ0-A80
|
$1,527.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, STOPPER
41305-MB4-770
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, BREATHER
41306-MB0-010
Superseded by 41306-MB0-020
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, BREATHER
41306-MB0-020
|
$11.20 | ||
|
Unavailable |
|||
|
#6
GEAR SET, FINAL
41310-MZ0-000
|
$411.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE SUB-ASSY., FINAL GEAR
41311-MZ0-A80
|
$1,072.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, GEAR CASE
41321-MN5-000
|
$229.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DUST GUARD
41324-MAJ-G00
|
$36.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, BEARING
41331-MN5-000
|
$131.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK A, BEARING ADJUSTING (SINGLE TAB)
41332-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
41333-415-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, PINION
41410-MN5-000
|
$75.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, O-RING
41433-MG9-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM A, PINION GEAR (1.32)
41450-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM B, PINION GEAR (1.38)
41451-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM C, PINION GEAR (1.44)
41452-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM D, PINION GEAR (1.50)
41453-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM E, PINION GEAR (1.56)
41454-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM F, PINION GEAR (1.62)
41455-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM G, PINION GEAR (1.68)
41456-MG9-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECIAL (35X40)
41510-MB0-003
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER A, RING GEAR (1.82)
41530-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER B, RING GEAR (1.88)
41531-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER C, RING GEAR (1.94)
41532-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER D, RING GEAR (2.00)
41533-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER E, RING GEAR (2.06)
41534-MG9-000
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER F, RING GEAR (2.12)
41535-MG9-000
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER G, RING GEAR (2.18)
41536-MG9-000
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER H, RING GEAR (2.24)
41537-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER I, RING GEAR (2.30)
41538-MG9-000
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR B, RR. DISTANCE
42625-MW5-000
|
$19.73 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12) (CT200)
90013-883-000
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, PLUG (14MM)
90081-MC7-000
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X27)
90133-MB0-000
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (10X35)
90134-HA0-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, FLANGE (18MM)
90306-MN5-003
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (16MM)
90381-MT3-000
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (65X100X11) (TOYO)
91051-MN5-003
|
$120.84 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (35X62X18) ( TOYO)
91052-MN5-003
|
$67.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (QJ3/28V1)
91061-MT3-003
|
$82.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (35X54X8) (NOK)
91261-MY3-003
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (39X56X7) (NOK)
91262-MY3-003
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (65X85X7) (NOK)
91265-MY3-003
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-RING (39.5X2.4) (ARAI)
91356-MG9-003
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (64.5X3.5) (ARAI)
91359-MG9-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, STUD (10X32)
92900-10032-0E
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, DRAIN PLUG (14MM)
94109-14000
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
