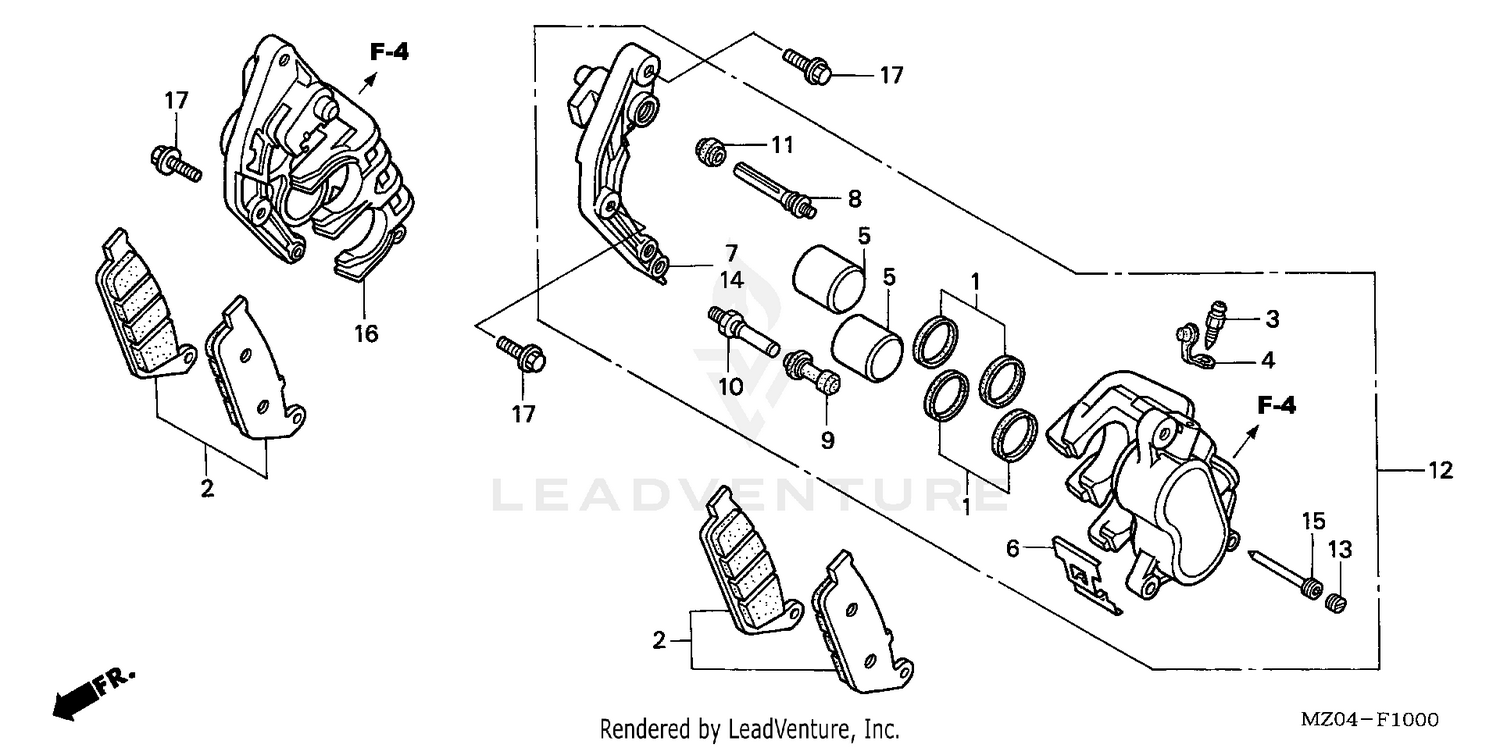

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#1
SEAL SET, PISTON
06431-MZ0-760
Superseded by 06431-MA3-405
|
$9.21 | ||
|
Unavailable |
|||
|
#2
PAD SET, FR.
06455-MV4-405
|
$65.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MZ0-760
Superseded by 06455-MV4-405
|
$65.41 | ||
|
Unavailable |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-MZ0-760
Superseded by 43352-HC5-971
|
$5.31 | ||
|
Unavailable |
|||
|
#4
CAP, BLEEDER
43353-KBP-930
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON
45107-ML4-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON
45107-MZ0-760
Superseded by 45107-ML4-006
|
$45.89 | ||
|
Unavailable |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-MZ0-760
Superseded by 45108-ML7-922
|
$7.76 | ||
|
Unavailable |
|||
|
#7
BRACKET, L. FR.
45110-MZ0-006
|
$111.11 | ||
|
Unavailable |
|||
|
#7
BRACKET, L. FR. (NOT AVAILABLE)
45110-MZ0-760
Superseded by 45110-MZ0-006
|
$111.11 | ||
|
Unavailable |
|||
|
#8
BOLT A, PIN
45131-ML7-921
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT A, PIN
45131-MZ0-890
Superseded by 45131-ML7-921
|
$18.71 | ||
|
Unavailable |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-GW3-980
Superseded by 45132-166-016
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
Unavailable |
|||
|
#10
BOLT, PIN
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, PIN
45137-GW3-980
|
|||
|
Unavailable |
|||
|
#11
BOOT B
45133-MA3-006
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT B
45139-GW3-980
Superseded by 45133-MA3-006
|
$6.85 | ||
|
Unavailable |
|||
|
#12
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-MZ0-006
|
$319.19 | ||
|
Unavailable |
|||
|
#12
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-MZ0-760
Superseded by 45150-MZ0-006
|
$319.19 | ||
|
Unavailable |
|||
|
#13
PLUG, PIN
45203-GW3-980
Superseded by 45203-MG3-016
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
Unavailable |
|||
|
#14
BRACKET, R. FR.
45210-MZ0-006
|
$112.94 | ||
|
Unavailable |
|||
|
#14
BRACKET, R. FR. (NOT AVAILABLE)
45210-MZ0-760
Superseded by 45210-MZ0-006
|
$112.94 | ||
|
Unavailable |
|||
|
#15
PIN, HANGER
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, HANGER
45215-MZ0-760
Superseded by 45215-ML7-922
|
$12.93 | ||
|
Unavailable |
|||
|
#16
CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)
45250-MZ0-006
|
$319.19 | ||
|
Unavailable |
|||
|
#16
CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)
45250-MZ0-760
Superseded by 45250-MZ0-006
|
$319.19 | ||
|
Unavailable |
|||
|
#17
BOLT, SPECIAL FLANGE (8X32)
90101-MZ8-000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
