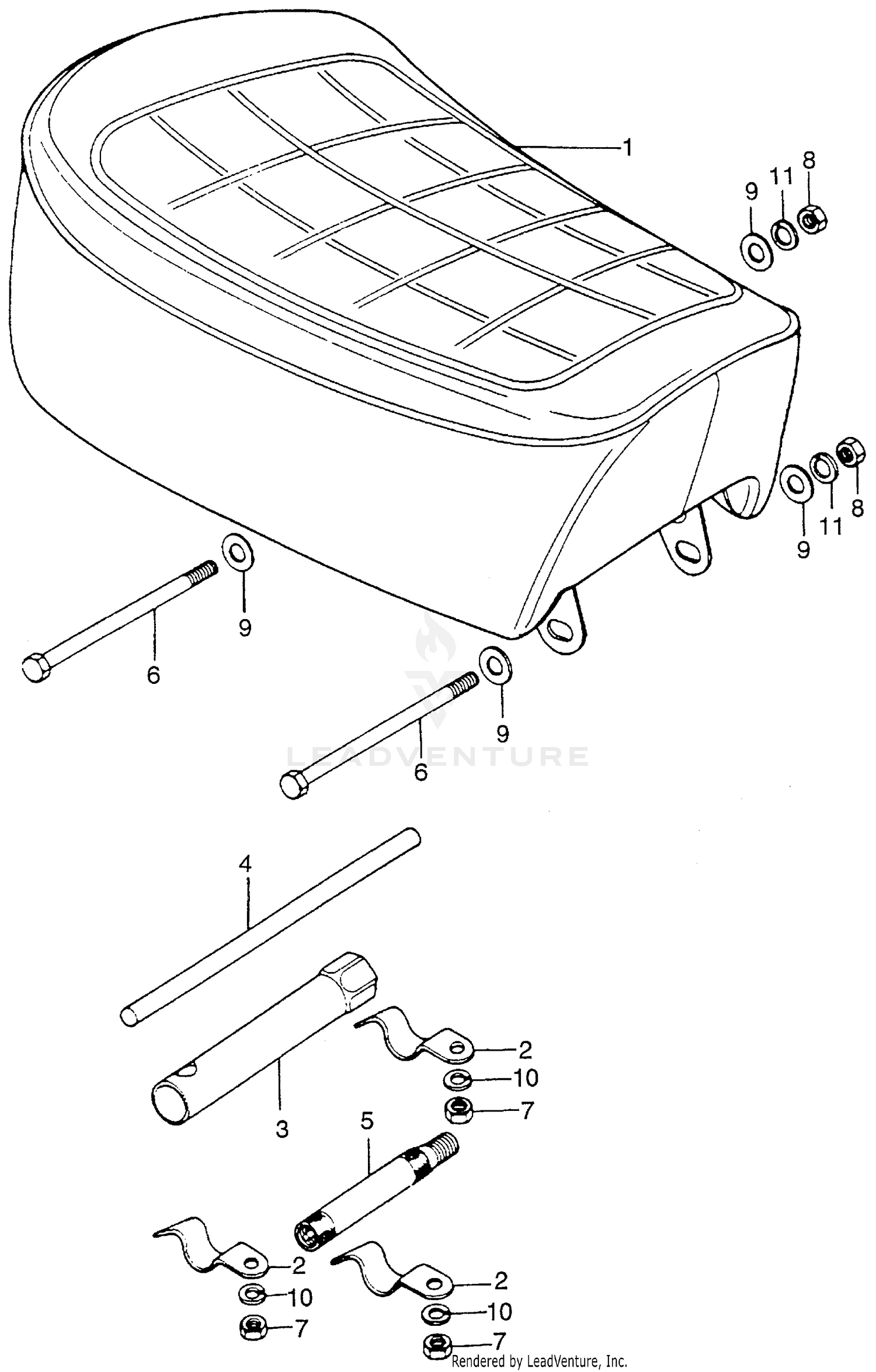

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)
77100-129-670A
|
$265.45 | ||
|
Unavailable |
|||
|
#2
PLATE, HOLDER PLUG WRENCH (NOT AVAILABLE)
77136-114-670
|
$4.08 | ||
|
Unavailable |
|||
|
#3
WRENCH, SPARK PLUG
89216-045-000
Superseded by 89216-045-010
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
WRENCH, SPARK PLUG
89216-045-010
|
$7.64 | ||
|
Unavailable |
|||
|
#3
WRENCH, SPARK PLUG
89216-045-670
Superseded by 89216-045-010
|
$7.64 | ||
|
Unavailable |
|||
|
#4
BAR, HANDLE
89217-045-670
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, VALVE (NOT AVAILABLE)
89423-045-000
|
$6.58 | ||
|
Unavailable |
|||
|
#6
BOLT, HEX. (8X111) (NOT AVAILABLE)
92000-08111-0A
|
$1.54 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#8
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
