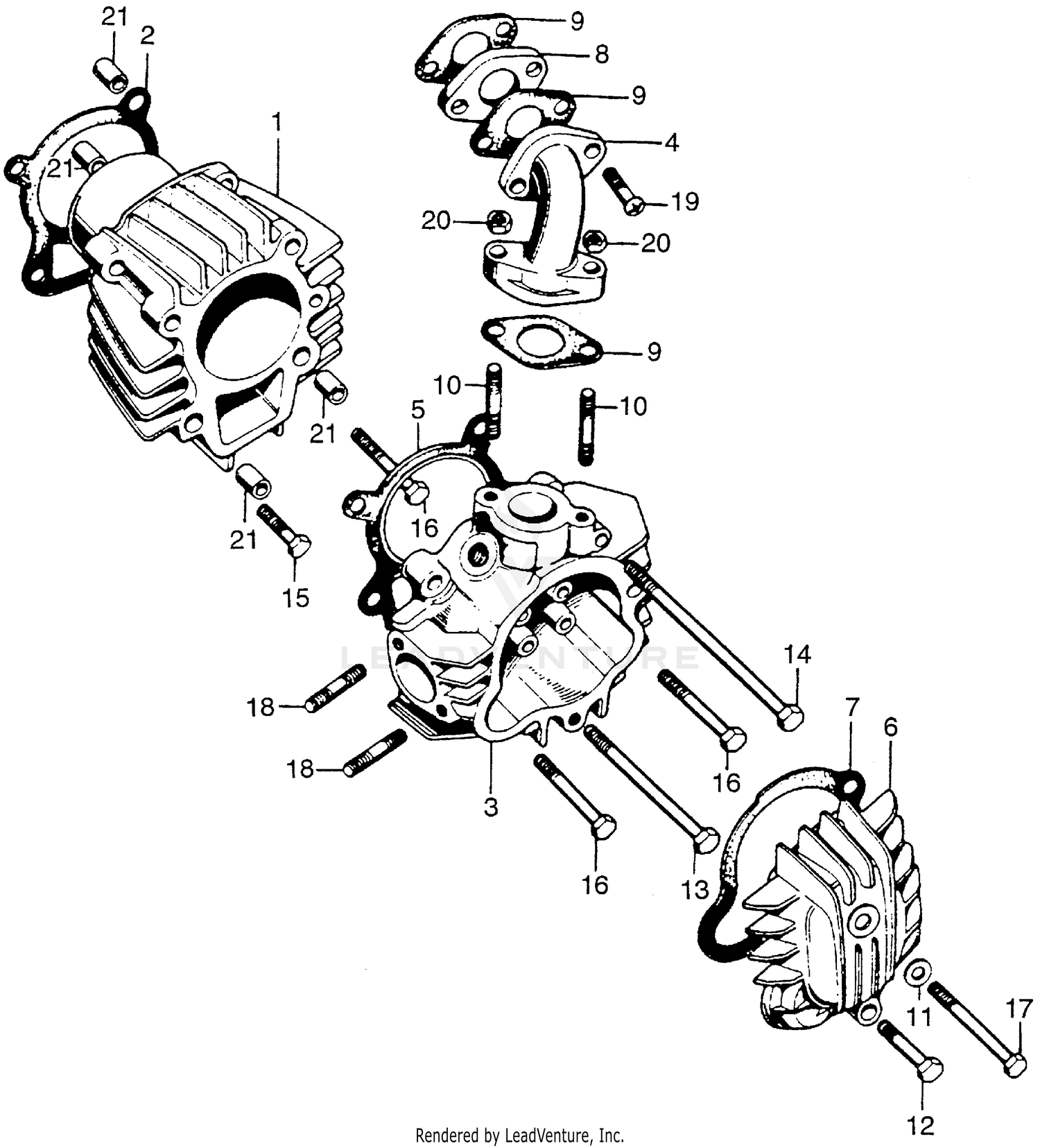

Cylinder + Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-114-000
|
$140.85 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-114-000
Superseded by 12191-114-306
|
$6.49 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-114-306
|
$6.49 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-114-000
|
$392.02 | ||
|
Unavailable |
|||
|
#4
PIPE, INLET (NOT AVAILABLE)
12210-114-010
|
$39.66 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD
12251-114-000
Superseded by 12251-114-405
|
$16.08 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER HEAD
12251-114-405
|
$16.08 | ||
|
Unavailable |
|||
|
#6
COVER, CYLINDER HEAD (NOT AVAILABLE)
12301-114-000
|
$64.98 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD COVER
12391-114-000
Superseded by 12391-114-306
|
$6.70 | ||
|
Unavailable |
|||
|
#7
GASKET, CYLINDER HEAD COVER
12391-114-306
|
$6.70 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16211-165-000
Superseded by 16211-165-010
|
$4.51 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16211-165-010
|
$4.51 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16211-165-306
Superseded by 16211-165-010
|
$4.51 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16265-081-000
Superseded by 16211-165-010
|
$4.51 | ||
|
Unavailable |
|||
|
#9
GASKET, IN. PIPE
16267-081-000
Superseded by 16267-081-306
|
$2.03 | ||
|
Unavailable |
|||
|
#9
GASKET, IN. PIPE
16267-081-306
|
$2.03 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD (6X28) (NOT AVAILABLE)
90015-114-000
|
$3.24 | ||
|
Unavailable |
|||
|
#11
WASHER A (6MM)
90478-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. (6X71) (NOT AVAILABLE)
92000-06071
|
$0.99 | ||
|
Unavailable |
|||
|
#14
BOLT, HEX. (6X112)
92000-06112
Superseded by 92101-06110-0A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (6X112)
92101-06110-0A
|
$3.28 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, HEX. (6X25)
92100-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X32)
92000-06032
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X32)
92000-06032-0A
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X32)
92100-06032
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X32)
92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X56) (NOT AVAILABLE)
92100-06056
Superseded by 92000-06056-0A
|
$0.62 | ||
|
Unavailable |
|||
|
#18
BOLT, STUD (6X27) (NOT AVAILABLE)
92700-06027
|
$0.64 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#21
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
