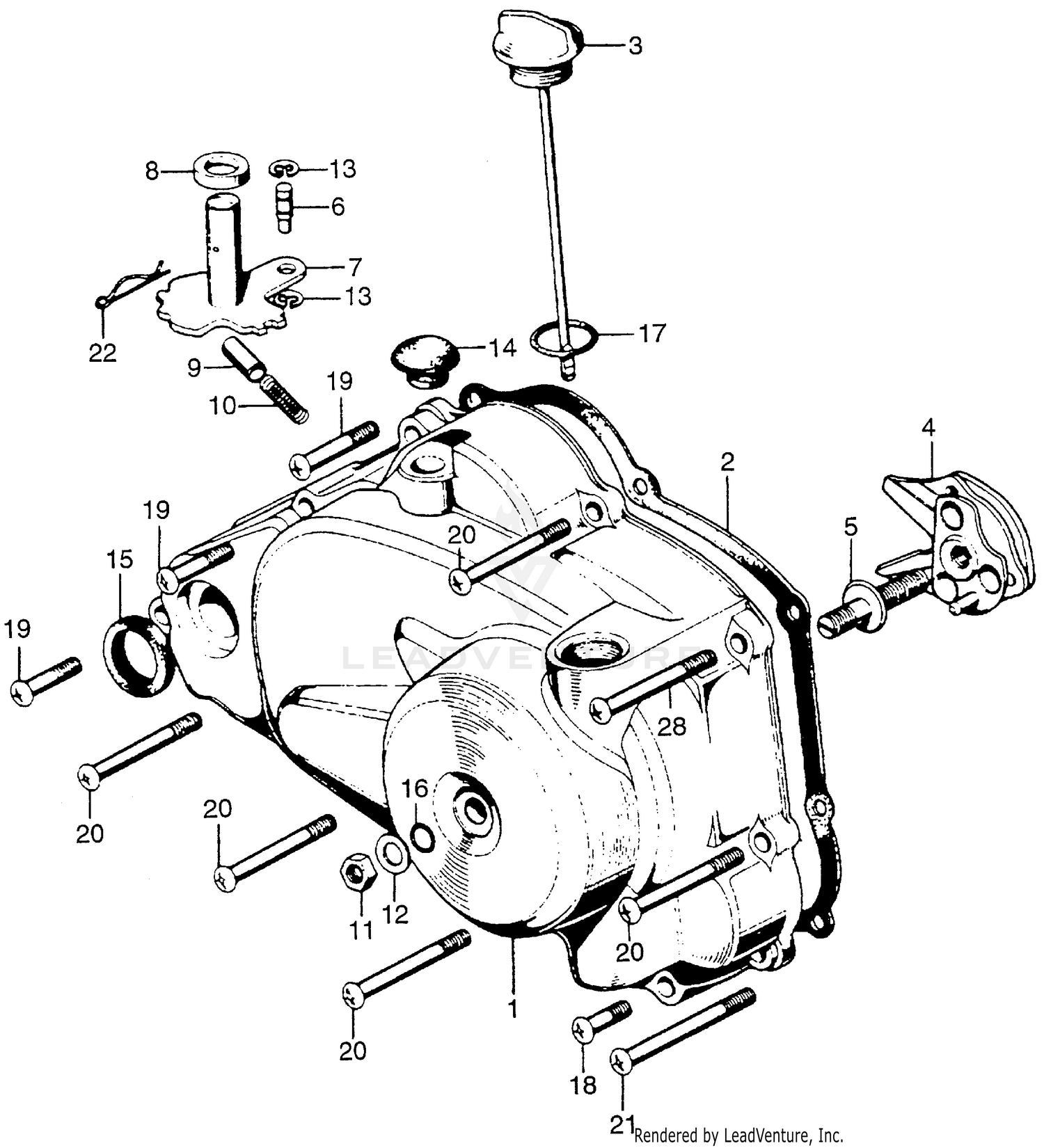

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11331-083-000
|
$283.65 | ||
|
Unavailable |
|||
|
#2
GASKET, L. CRANKCASE COVER
11394-083-000
Superseded by 11394-083-405
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L. CRANKCASE COVER
11394-083-405
|
$17.47 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL (NOT AVAILABLE)
15650-114-000
|
$8.45 | ||
|
Unavailable |
|||
|
#4
LIFTER, CLUTCH
22830-083-000
|
$21.96 | ||
|
Unavailable |
|||
|
#5
BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)
22846-001-020
|
$6.56 | ||
|
Unavailable |
|||
|
#6
PIN, GEARSHIFT (NOT AVAILABLE)
24208-083-000
|
$8.32 | ||
|
Unavailable |
|||
|
#7
ARM, GEARSHIFT (NOT AVAILABLE)
24630-083-010
|
$31.63 | ||
|
Unavailable |
|||
|
#8
COLLAR, SHIFT ARM (NOT AVAILABLE)
24641-064-000
|
$5.71 | ||
|
Unavailable |
|||
|
#9
STOPPER, GEARSHIFT ARM (NOT AVAILABLE)
24661-064-000
|
$5.80 | ||
|
Unavailable |
|||
|
#10
SPRING, GEARSHIFT STOPPER (NOT AVAILABLE)
24672-082-000
|
$4.12 | ||
|
Unavailable |
|||
|
#11
NUT (8MM) (NOT AVAILABLE)
90281-001-000
|
$1.77 | ||
|
Unavailable |
|||
|
#12
WASHER (8MM)
90485-040-000
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP (6MM)
90603-044-000
Superseded by 90454-GB2-000
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, RUBBER (12MM) (NOT AVAILABLE)
90801-083-000
|
$7.79 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91202-KFL-841
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
OIL SEAL (14X24X5)
91202-216-000
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91202-216-003
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91202-302-000
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91202-302-010
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91205-HB2-771
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91205-HB2-772
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (14X24X5)
91205-035-303
Superseded by 91202-KFL-841
|
$6.33 | ||
|
Unavailable |
|||
|
#16
O-RING (8X1.7) (ARAI)
91303-001-000
Superseded by 91306-HB3-003
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (8X1.7) (ARAI)
91306-HB3-003
|
$2.16 | ||
|
Unavailable |
|||
|
#17
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
O-RING (18X3)
91311-044-000
Superseded by 91307-035-000
|
$3.40 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN (6X20)
93500-06020
Superseded by 93500-06020-0A
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (6X20)
93500-06020-0A
|
$1.07 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (6X35)
93500-06035-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (6X35)
93500-06036
Superseded by 93500-06035-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN (6X75)
93500-06075
Superseded by 93500-06075-0A
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (6X75)
93500-06075-0A
|
$1.90 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X85) (SOURCE: VINTAGE PARTS INC.)
93500-06085
|
$0.97 | ||
|
Unavailable |
|||
|
#22
PIN, LOCK (12MM)
94251-12000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
