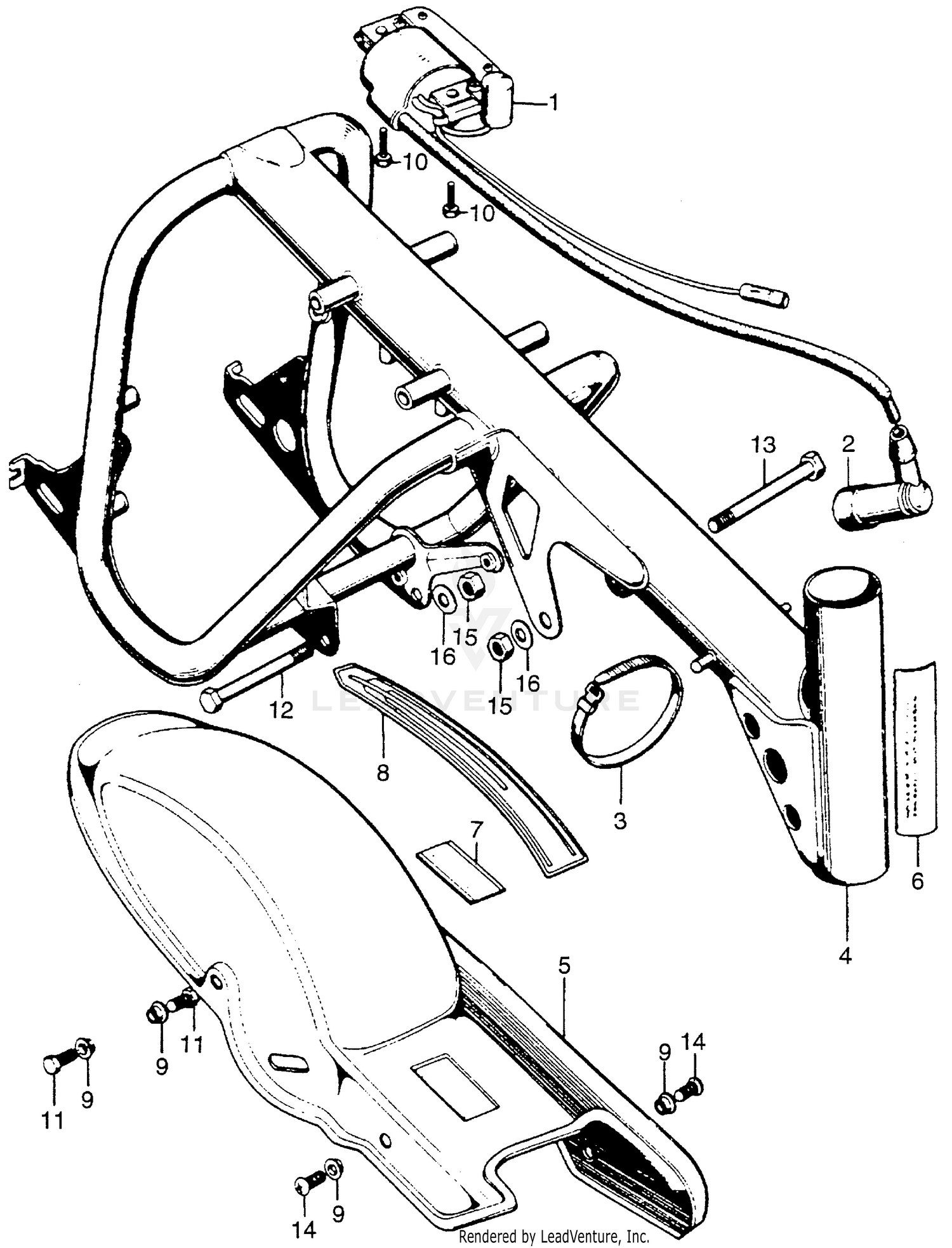

Frame + Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., IGNITION (NOT AVAILABLE)
30400-129-670
|
$148.94 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-158
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-259-810
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#3
BAND B3, CABLE HARNESS
95014-62300
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRAME *NH83L* (OFF BLACK)
50100-129-670CT
|
$633.51 | ||
|
Unavailable |
|||
|
#5
FENDER, RR. *NH24* (CERAMIC WHITE) (NOT AVAILABLE)
80100-129-670WF
|
$66.62 | ||
|
Unavailable |
|||
|
#6
PLATE, NAME
87125-041-680
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, CAUTION (NOT AVAILABLE)
87505-114-670
|
$15.10 | ||
|
Unavailable |
|||
|
#8
STRIPE, FENDER (NOT AVAILABLE)
87507-129-000
|
$54.29 | ||
|
Unavailable |
|||
|
#9
WASHER, FR. FENDER SETTING
90556-044-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (8X80)
92000-08080-0A
Superseded by 92180-08080-0A
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (8X80)
92180-08080-0A
|
$2.75 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. (8X88) (NOT AVAILABLE)
92000-08088-0A
|
$1.24 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (6X14)
93500-06014
Superseded by 93500-06014-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (6X14)
93500-06014-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE (8MM)
90236-300-000
Superseded by 94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
Unavailable |
|||
|
#15
NUT, FLANGE (8MM)
94050-08000-0S
Superseded by 94050-08000
|
$0.98 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
