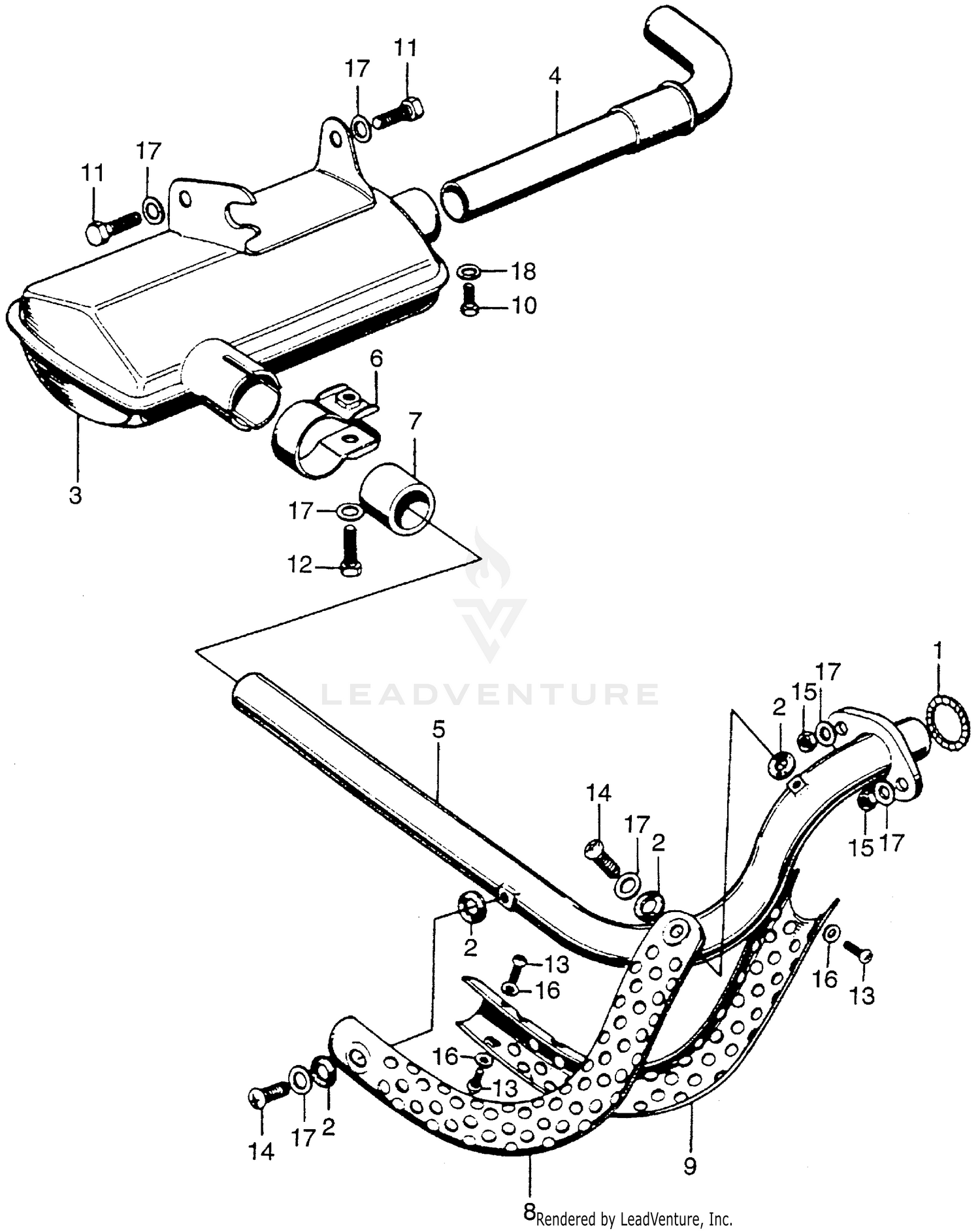

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-044-020
Superseded by 18291-044-405
|
$6.53 | ||
|
Unavailable |
|||
|
#1
GASKET, EX. PIPE
18291-044-405
|
$6.53 | ||
|
Unavailable |
|||
|
#2
GASKET, PROTECTOR
18292-167-890
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, PROTECTOR
18292-290-000
Superseded by 18292-167-890
|
$2.25 | ||
|
Unavailable |
|||
|
#2
GASKET, PROTECTOR
18292-329-000
Superseded by 18292-167-890
|
$2.25 | ||
|
Unavailable |
|||
|
#3
MUFFLER (NOT AVAILABLE)
18310-114-670
Superseded by 18310-114-677
|
$103.55 | ||
|
Unavailable |
|||
|
#3
MUFFLER (NOT AVAILABLE)
18310-114-677
|
$103.55 | ||
|
Unavailable |
|||
|
#4
PIPE, EX. DIFFUSER (NOT AVAILABLE)
18314-114-670
|
$33.53 | ||
|
Unavailable |
|||
|
#5
PIPE, EX. (NOT AVAILABLE)
18320-114-010
|
$54.20 | ||
|
Unavailable |
|||
|
#6
BAND, MUFFLER
18371-GZ4-670
|
$30.84 | ||
|
Unavailable |
|||
|
#6
BAND, MUFFLER
18371-114-000
Superseded by 18371-GZ4-670
|
$30.84 | ||
|
Unavailable |
|||
|
#7
GASKET, MUFFLER
18391-GZ4-670
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, MUFFLER
18391-045-000
Superseded by 18391-GZ4-670
|
$22.80 | ||
|
Unavailable |
|||
|
#7
GASKET, MUFFLER
18391-045-306
Superseded by 18391-GZ4-670
|
$22.80 | ||
|
Unavailable |
|||
|
#8
COVER A, EX. PIPE (NOT AVAILABLE)
18400-114-020
|
$50.09 | ||
|
Unavailable |
|||
|
#9
COVER B, EX. PIPE (NOT AVAILABLE)
18450-114-000
|
$50.09 | ||
|
Unavailable |
|||
|
#10
BOLT, HEX. (5X8)
92000-05008-4J
Superseded by 92101-05008-4J
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (5X8)
92101-05008-4J
|
$2.37 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#12
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (4X6)
93500-04005-0A
Superseded by 93500-04006-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (4X6)
93500-04006
Superseded by 93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (4X6)
93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (4X6)
93500-04006-1A
Superseded by 93500-04006-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (6X10)
93500-06010
Superseded by 93500-06010-0A
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
