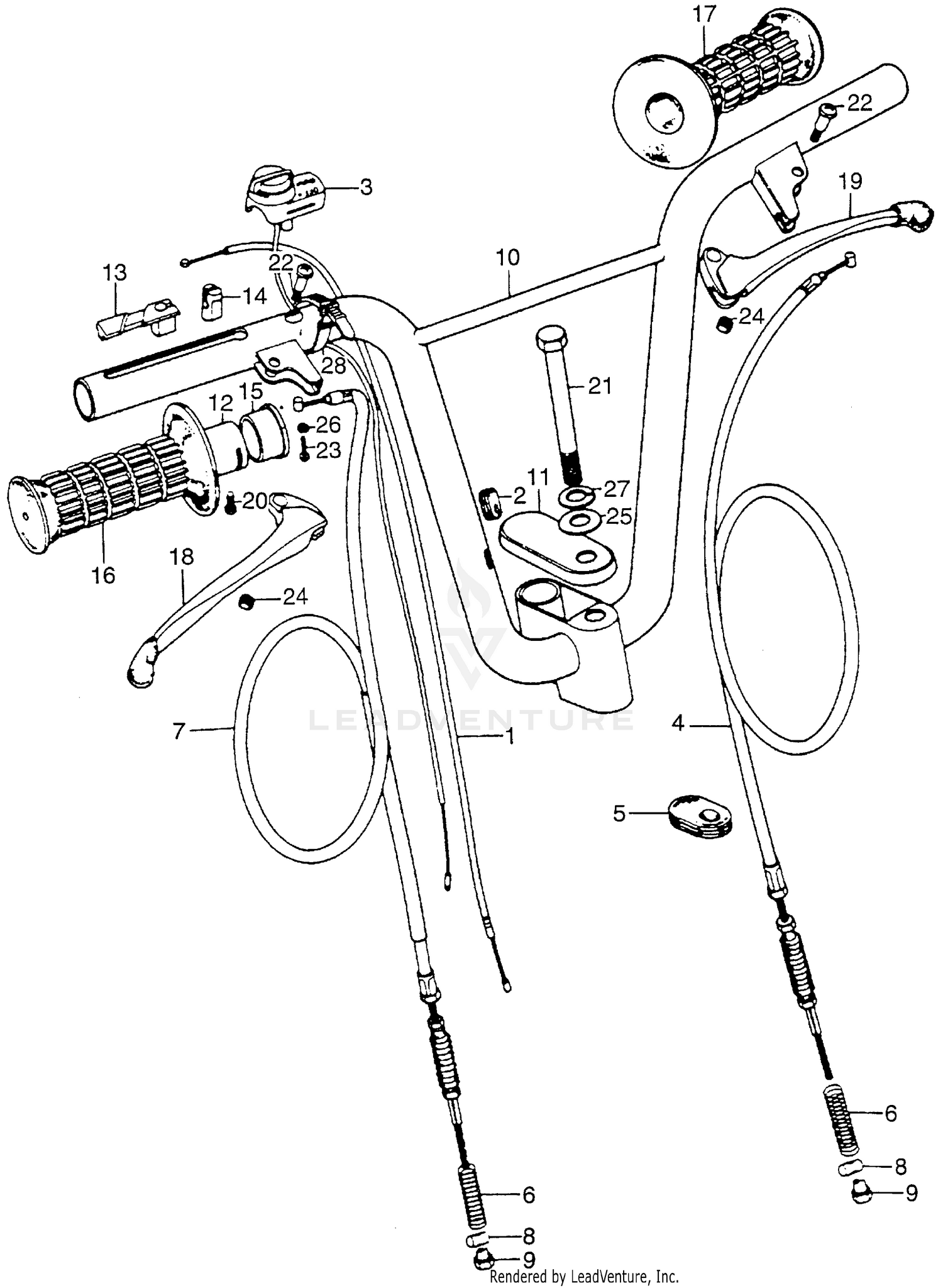

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE (NOT AVAILABLE)
17910-129-670
|
$8.59 | ||
|
Unavailable |
|||
|
#2
GROMMET, THROTTLE CABLE
17911-023-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, STOP (NOT AVAILABLE)
35300-129-670
|
$34.86 | ||
|
Unavailable |
|||
|
#4
CABLE, RR. BRAKE (NOT AVAILABLE)
43450-129-670
|
$54.63 | ||
|
Unavailable |
|||
|
#5
GROMMET, RR. BRAKE CABLE (NOT AVAILABLE)
43455-114-300
|
$4.39 | ||
|
Unavailable |
|||
|
#6
SPRING, FR. BRAKE ARM
45437-001-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, FR. BRAKE (NOT AVAILABLE)
45450-129-670
|
$35.65 | ||
|
Unavailable |
|||
|
#8
JOINT A, BRAKE ARM
95015-31000
Superseded by 95015-31001
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT A, BRAKE ARM
95015-31001
|
$1.68 | ||
|
Unavailable |
|||
|
#9
NUT A, BRAKE ROD ADJUSTING
45462-001-000
Superseded by 95015-41000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT A, BRAKE ROD ADJUSTING
45462-028-000
Superseded by 95015-41000
|
$1.47 | ||
|
Unavailable |
|||
|
#9
NUT A, BRAKE ROD ADJUSTING
95015-41000
|
$1.47 | ||
|
Unavailable |
|||
|
#10
HANDLEBAR (NOT AVAILABLE)
53100-129-671
|
$251.84 | ||
|
Unavailable |
|||
|
#11
CAP, HANDLE POST (NOT AVAILABLE)
53104-114-000
|
$14.20 | ||
|
Unavailable |
|||
|
#12
HANDLEBAR, THROTTLE GRIP
53141-044-010
|
$10.03 | ||
|
Unavailable |
|||
|
#13
HINGE, THROTTLE CABLE
53161-044-000
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)
53162-063-000
|
$6.26 | ||
|
Unavailable |
|||
|
#15
STOPPER, THROTTLE GRIP
53163-044-010
|
$3.45 | ||
|
Unavailable |
|||
|
#16
GRIP, R. HANDLEBAR
53165-120-000
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
GRIP, L. HANDLEBAR
53166-120-000
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, R. HANDLEBAR
53175-045-670
|
$26.26 | ||
|
Unavailable |
|||
|
#19
LEVER, L. HANDLEBAR
53178-045-670
|
$24.74 | ||
|
Unavailable |
|||
|
#20
SCREW, THROTTLE GRIP MOUNT
90101-063-000
Superseded by 90101-063-505
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, THROTTLE GRIP MOUNT
90101-063-505
|
$6.33 | ||
|
Unavailable |
|||
|
#21
BOLT (10X74) (NOT AVAILABLE)
90101-377-000
|
$4.26 | ||
|
Unavailable |
|||
|
#21
BOLT (10X74) (NOT AVAILABLE)
90106-333-000
Superseded by 90101-377-000
|
$4.26 | ||
|
Unavailable |
|||
|
#22
SCREW, L. HANDLEBAR LEVER PIVOT
90114-063-000
Superseded by 90116-GF8-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, L. HANDLEBAR LEVER PIVOT
90116-GF8-000
|
$4.49 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (3X12)
93500-03012-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING (3MM)
94111-03000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING (8MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BAND B1, CABLE
95014-62100
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
