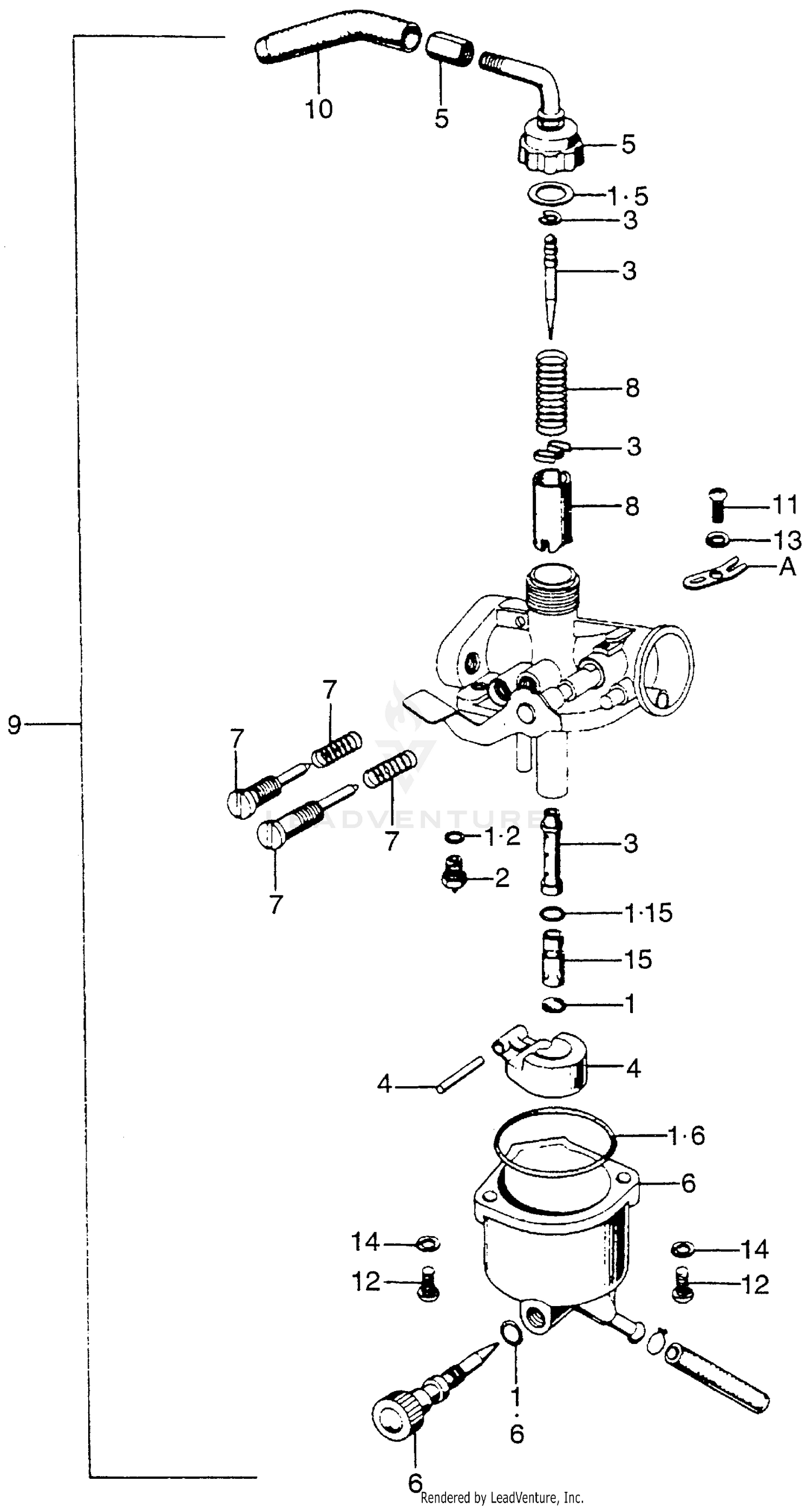

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-114-004
Superseded by 16010-114-305
|
$11.50 | ||
|
Unavailable |
|||
|
#1
GASKET SET
16010-114-305
|
$11.50 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-045-004
|
$23.55 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16012-114-004
|
$22.51 | ||
|
Unavailable |
|||
|
#4
FLOAT SET (NOT AVAILABLE)
16013-114-004
|
$78.43 | ||
|
Unavailable |
|||
|
#5
TOP SET A (NOT AVAILABLE)
16014-120-004
|
$18.69 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-114-004
|
$41.79 | ||
|
Unavailable |
|||
|
#7
SCREW SET A (NOT AVAILABLE)
16016-045-610
Superseded by 16016-063-004
|
$5.77 | ||
|
Unavailable |
|||
|
#8
VALVE SET, THROTTLE (NOT AVAILABLE)
16022-129-004
|
$46.17 | ||
|
Unavailable |
|||
|
#9
CARBURETOR ASSY. (NOT AVAILABLE)
16100-129-000
|
$263.19 | ||
|
Unavailable |
|||
|
#10
CAP, RUBBER
16118-045-770
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (3X6)
93500-03006-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (4X12)
93500-04012-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING (3MM)
94111-03000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING (4MM)
94111-04000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET SET, MAIN (#52) (NOT AVAILABLE)
99201-114-0520
|
$6.72 | ||
|
Unavailable |
|||
