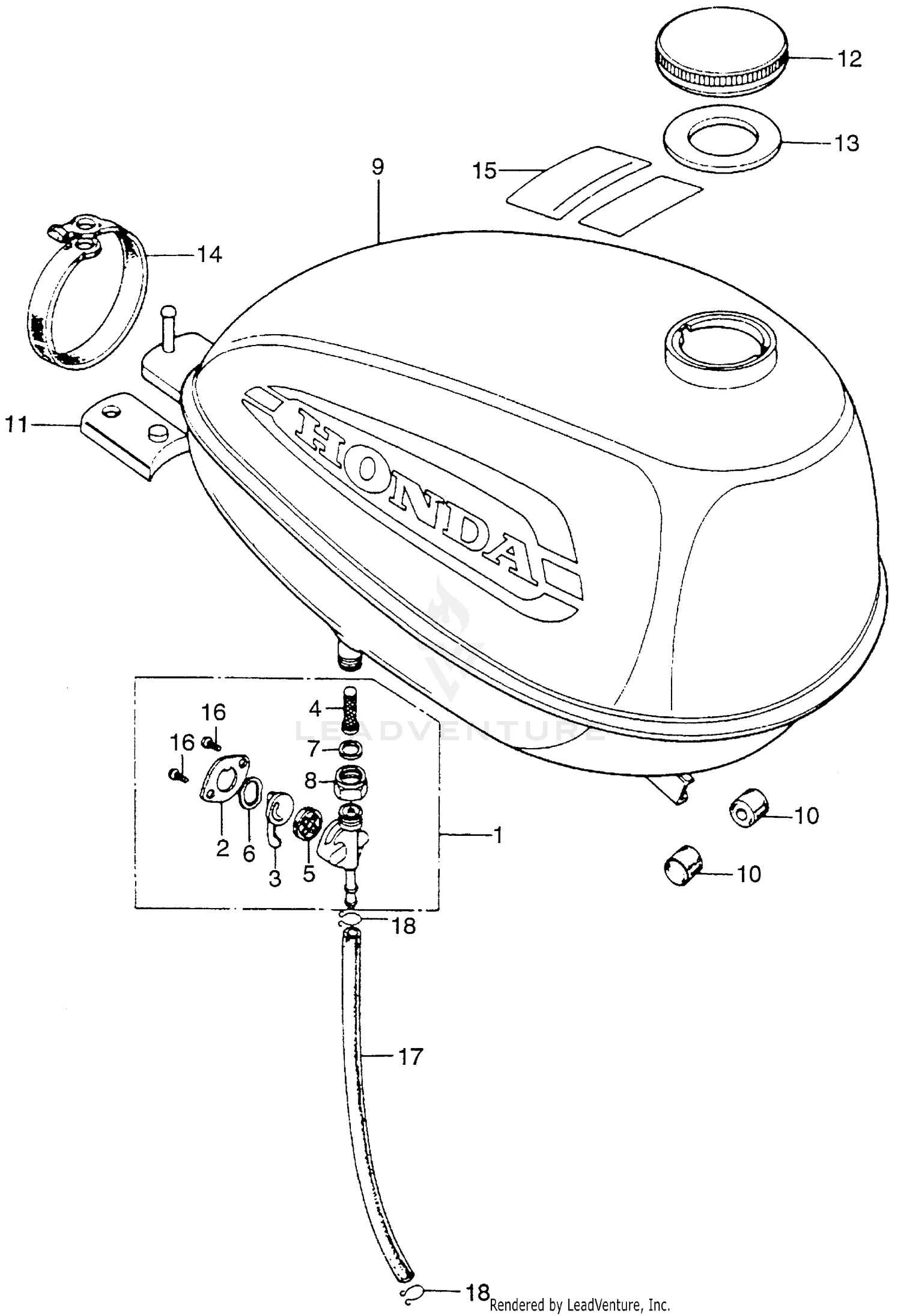

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-045-005
|
$46.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, PETCOCK (NOT AVAILABLE)
16952-081-005
|
$6.23 | ||
|
Unavailable |
|||
|
#3
LEVER, VALVE (NOT AVAILABLE)
16953-081-005
|
$3.04 | ||
|
Unavailable |
|||
|
#4
STRAINER, PETCOCK
16954-045-005
|
$5.78 | ||
|
Unavailable |
|||
|
#5
GASKET, VALVE
16955-028-004
Superseded by 16957-ZE1-812
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE
16957-ZE1-812
|
$3.85 | ||
|
Unavailable |
|||
|
#6
SPRING, PETCOCK LEVER
16956-011-000
Superseded by 16956-ZE1-811
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PETCOCK LEVER
16956-011-010
Superseded by 16956-ZE1-811
|
$4.16 | ||
|
Unavailable |
|||
|
#6
SPRING, PETCOCK LEVER
16956-028-004
Superseded by 16956-ZE1-811
|
$4.16 | ||
|
Unavailable |
|||
|
#6
SPRING, PETCOCK LEVER
16964-720-005
Superseded by 16956-ZE1-811
|
$4.16 | ||
|
Unavailable |
|||
|
#7
GASKET, FUEL STRAINER CUP
16958-081-015
|
$5.04 | ||
|
Unavailable |
|||
|
#8
NUT, TURN BUCKLE (NOT AVAILABLE)
16962-081-005
|
$5.04 | ||
|
Unavailable |
|||
|
#9
TANK ASSY., FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)
17500-129-306NC
|
$566.91 | ||
|
Unavailable |
|||
|
#10
RUBBER, FR. FUEL TANK
17611-045-670
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RR. FUEL TANK
17613-045-000
|
$16.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FUEL FILLER
17610-102-730
Superseded by 17620-102-730
|
$11.77 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-045-670
Superseded by 17620-165-643
|
$51.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FUEL FILLER
17620-045-671
Superseded by 17620-165-643
|
$51.47 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-102-730
|
$11.77 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-114-000
Superseded by 17620-102-730
|
$11.77 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-165-642
Superseded by 17620-165-643
|
$51.47 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-943-003
Superseded by 17620-165-643
|
$51.47 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-958-003
Superseded by 17620-165-643
|
$51.47 | ||
|
Unavailable |
|||
|
#12
CAP, FUEL FILLER
17620-958-013
Superseded by 17620-165-643
|
$51.47 | ||
|
Unavailable |
|||
|
#13
GASKET
17631-001-000
Superseded by 17631-096-702
|
$2.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET
17631-096-701
Superseded by 17631-096-702
|
$2.96 | ||
|
Unavailable |
|||
|
#14
BAND, FUEL TANK MOUNT
17670-045-010
|
$12.05 | ||
|
Unavailable |
|||
|
#15
LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)
87504-045-020
Superseded by 87504-045-020S
|
$10.17 | ||
|
Unavailable |
|||
|
#15
LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)
87504-045-020B
Superseded by 87504-045-020S
|
$10.17 | ||
|
Unavailable |
|||
|
#15
LABEL A, CAUTION *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)
87504-045-020S
|
$10.17 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (3X6)
93500-03006-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULK HOSE, FUEL (4.5X3000) (4.5X130)
95001-45003-60M
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, TUBE (B8)
95002-02080
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
