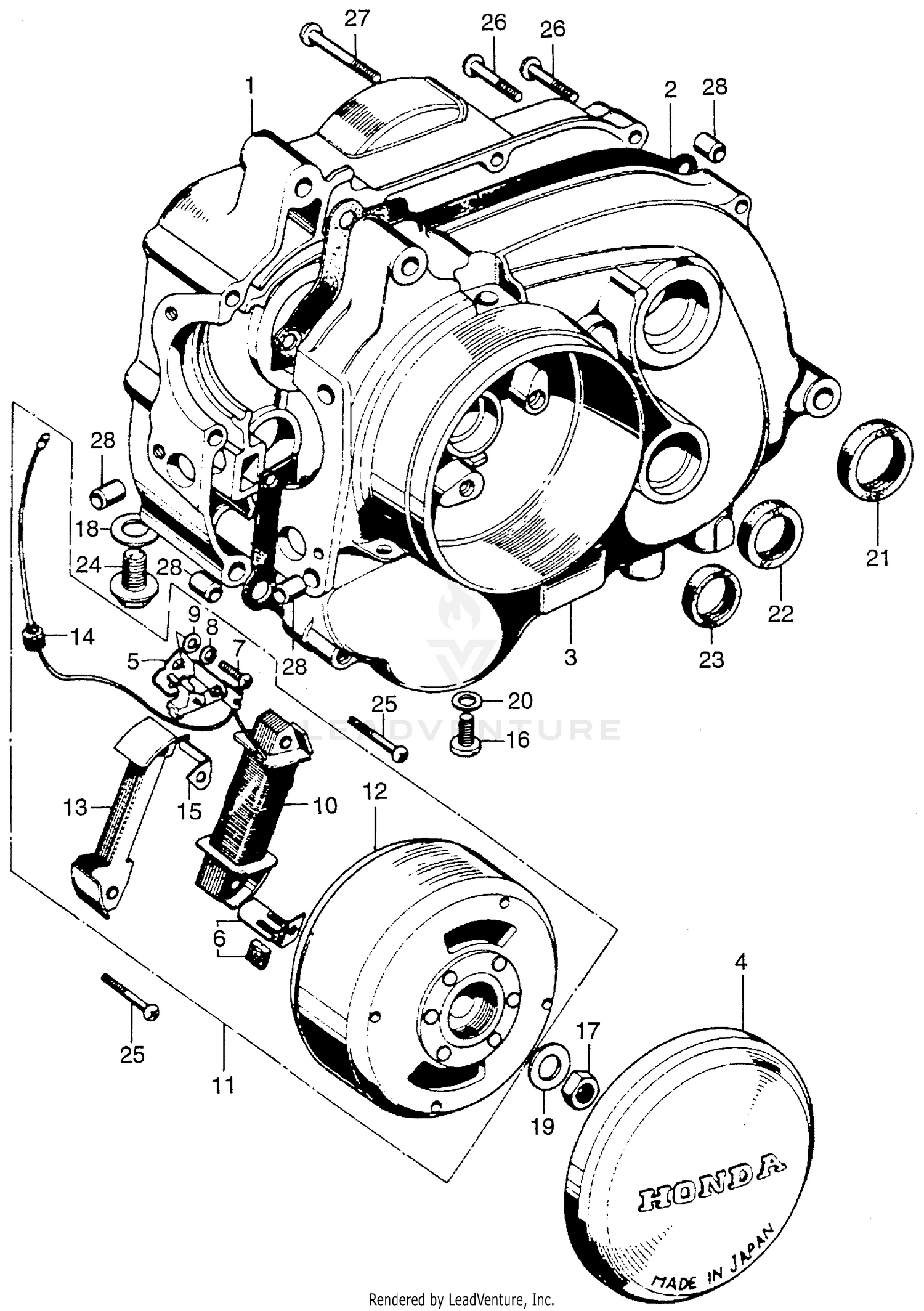

Crankcase + Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R. (NOT AVAILABLE)
11100-083-000
|
$387.59 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-081-000
Superseded by 11191-081-306
|
$12.67 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-081-306
|
$12.67 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L. (NOT AVAILABLE)
11200-083-020
|
$538.11 | ||
|
Unavailable |
|||
|
#4
COVER, ALTERNATOR
11431-063-000
|
$30.02 | ||
|
Unavailable |
|||
|
#5
POINTS
30202-063-004
|
$24.05 | ||
|
Unavailable |
|||
|
#6
FELT, OIL (DENSO)
30205-816-650
|
$3.24 | ||
|
Unavailable |
|||
|
#7
SCREW, POINTS SETTING (NOT AVAILABLE)
30207-063-004
|
$1.97 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING (NOT AVAILABLE)
30208-063-004
|
$1.93 | ||
|
Unavailable |
|||
|
#9
WASHER, PLAIN (NOT AVAILABLE)
30209-063-004
|
$2.02 | ||
|
Unavailable |
|||
|
#10
COIL, PRIMARY (NOT AVAILABLE)
30540-114-004
|
$94.37 | ||
|
Unavailable |
|||
|
#11
ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)
31100-114-004
|
$287.36 | ||
|
Unavailable |
|||
|
#12
FLYWHEEL
31121-114-004
Superseded by 31121-081-602
|
$194.90 | ||
|
Unavailable |
|||
|
#13
COIL (DENSO) (NOT AVAILABLE)
31631-114-004
|
$24.92 | ||
|
Unavailable |
|||
|
#14
GROMMET, ALTERNATOR CABLE (NOT AVAILABLE)
32956-114-000
|
$5.82 | ||
|
Unavailable |
|||
|
#15
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)
32957-063-010
|
$3.08 | ||
|
Unavailable |
|||
|
#16
BOLT, SEALING (8MM) (NOT AVAILABLE)
90081-044-000
|
$2.17 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (10MM)
90201-044-000
Superseded by 94002-10000-0S
|
$4.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, HEX. (10MM)
90309-250-000
Superseded by 94002-10000-0S
|
$4.95 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (10MM)
94002-10000
Superseded by 94002-10000-0S
|
$4.95 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Unavailable |
|||
|
#17
NUT, HEX. (10MM)
94002-10000-08
Superseded by 94002-10000-0S
|
$4.95 | ||
|
Unavailable |
|||
|
#18
WASHER, DRAIN PLUG (12MM)
90407-231-000
Superseded by 94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET, DRAIN VALVE (12.5X20)
90407-259-000
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#19
WASHER, SPECIAL (10X18)
90426-GW0-730
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL (10X18)
90426-001-000
Superseded by 90426-GW0-730
|
$3.98 | ||
|
Unavailable |
|||
|
#20
GASKET, OIL PIPE JOINT
90405-001-000
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, OIL PIPE JOINT
90488-044-000
Superseded by 90405-001-000
|
$2.27 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (20X30X5)
91203-081-005
Superseded by 91204-187-013
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (20X30X5)
91204-187-013
|
$7.29 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (11.6X24X10) (ARAI)
91204-035-000
Superseded by 91208-KB4-671
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL SEAL (11.6X24X10) (ARAI)
91204-035-003
Superseded by 91208-KB4-671
|
$5.09 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (11.6X24X10) (ARAI)
91204-121-000
Superseded by 91208-KB4-671
|
$5.09 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (11.6X23X10) (ARAI)
91208-KB4-671
|
$5.09 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (15X25X6)
91211-044-000
Superseded by 91211-044-003
|
$2.45 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (15X25X6)
91211-044-003
|
$2.45 | ||
|
Unavailable |
|||
|
#24
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, PAN (4X22)
93500-04022-0A
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (6X35)
93500-06035-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (6X35)
93500-06036
Superseded by 93500-06035-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN (6X45)
93500-06045
Superseded by 93500-06045-0A
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X45)
93500-06045-0A
|
$1.11 | ||
|
Unavailable |
|||
|
#28
PIN A, DOWEL (8X12)
94301-08120
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
