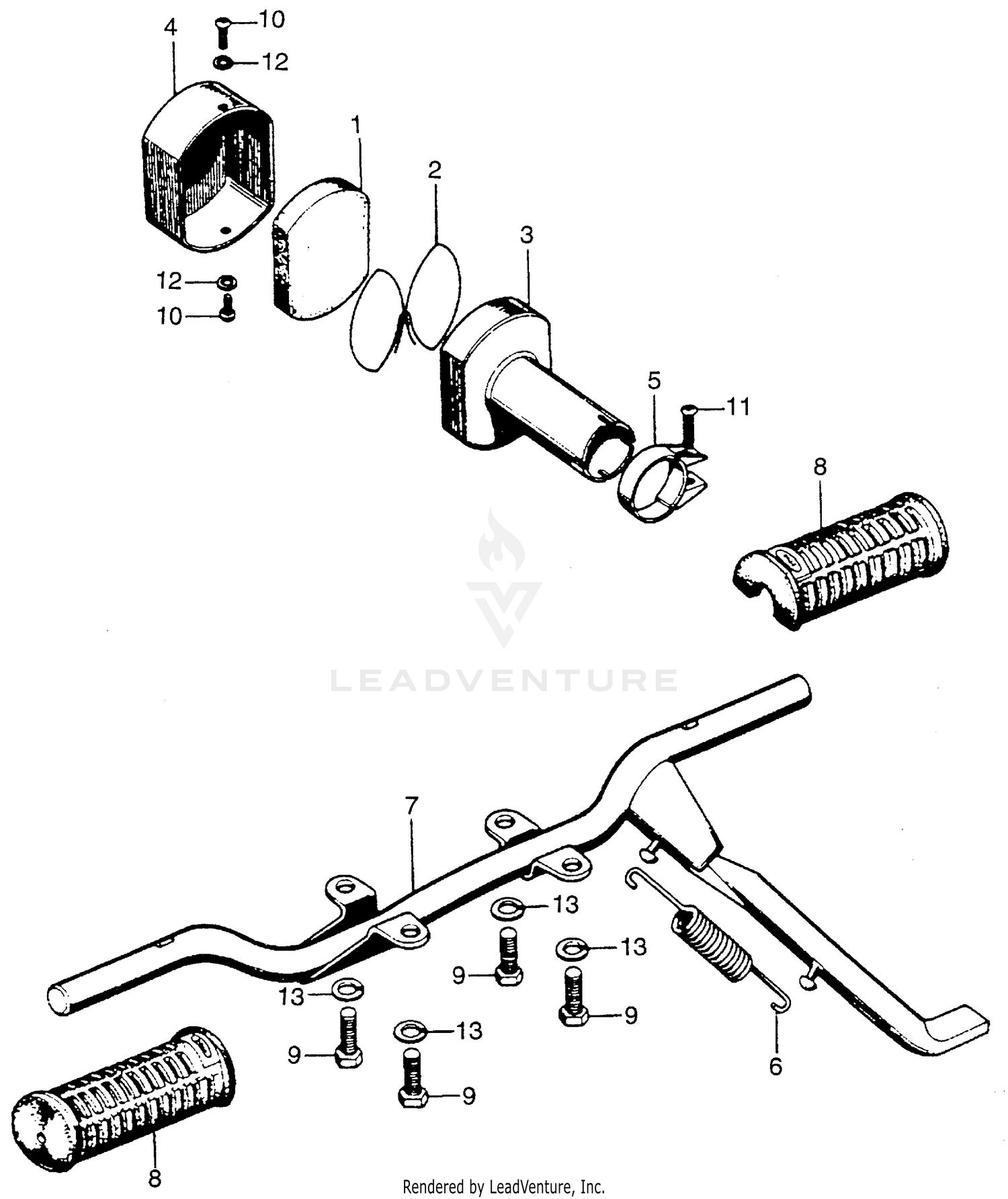

Air Cleaner + Step Bar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER (NOT AVAILABLE)
17211-114-670
|
$5.00 | ||
|
Unavailable |
|||
|
#2
WIRE, CLEANER ELEMENT SUPPORT
17213-045-670
|
$7.49 | ||
|
Unavailable |
|||
|
#3
HOUSING, AIR CLEANER (NOT AVAILABLE)
17221-114-671
|
$40.31 | ||
|
Unavailable |
|||
|
#4
COVER, AIR CLEANER (NOT AVAILABLE)
17231-114-670
|
$28.85 | ||
|
Unavailable |
|||
|
#5
BAND, CLEANER CONNECTING TUBE (NOT AVAILABLE)
17255-114-000
|
$7.10 | ||
|
Unavailable |
|||
|
#6
SPRING, SIDE STAND
50542-045-010
|
$16.12 | ||
|
Unavailable |
|||
|
#7
BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)
50610-114-000B
|
$100.26 | ||
|
Unavailable |
|||
|
#8
RUBBER, STEP
95011-21000
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (8X16)
92000-08016-0A
Superseded by 92101-08016-0A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (8X16)
92101-08016-0A
|
$1.55 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (4X26)
93500-04016-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (4MM)
94101-04000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
