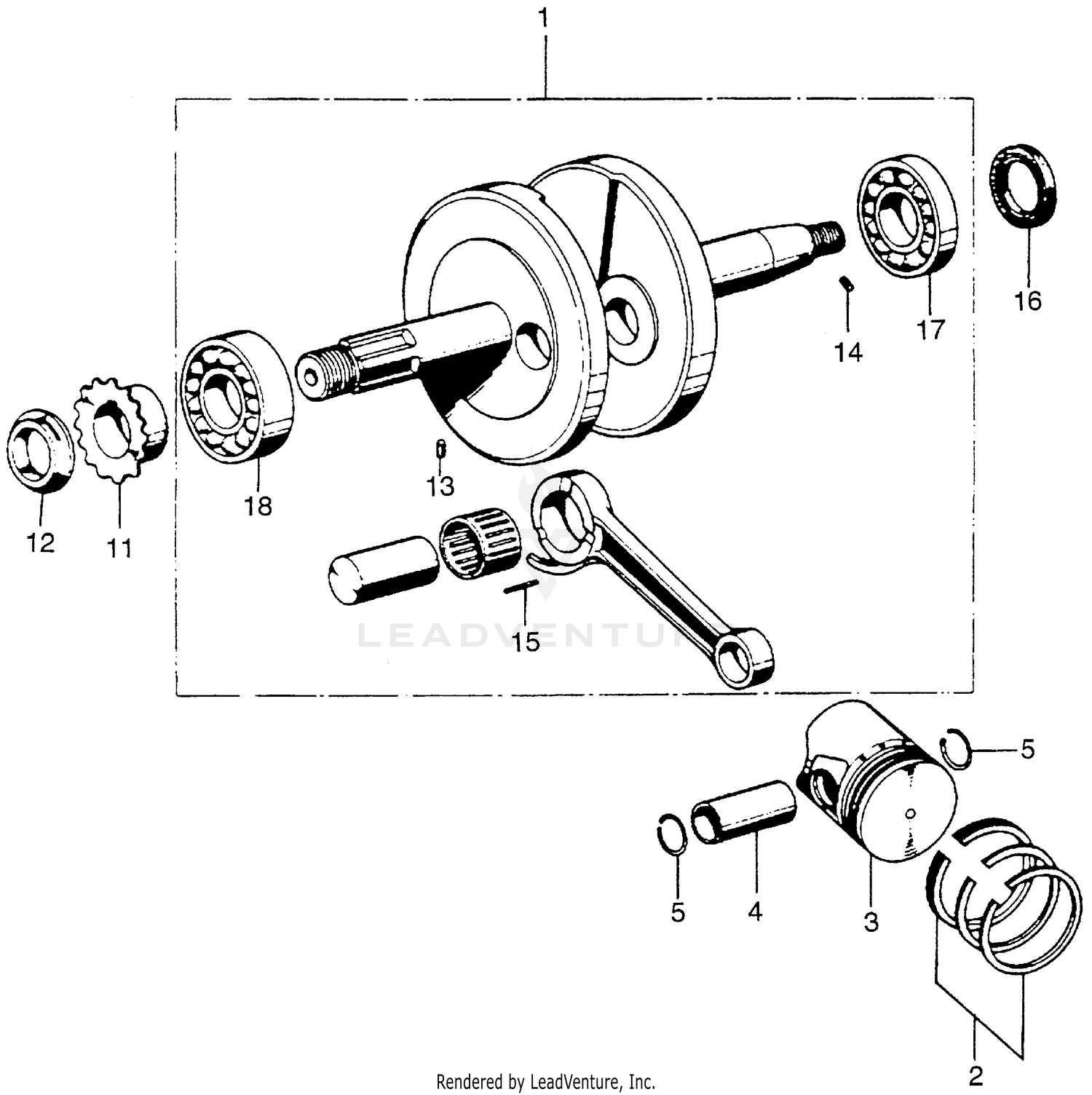

Piston + Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT (NOT AVAILABLE)
13000-081-010
|
$240.09 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD)
13010-044-000
|
$26.21 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13020-044-000
|
$28.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (OS 0.50)
13030-044-000
|
$34.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (0.75) (NOT AVAILABLE)
13040-044-000
|
$20.41 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00) (NOT AVAILABLE)
13050-044-000
|
$17.20 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13101-081-000
|
$47.73 | ||
|
Unavailable |
|||
|
#3
PISTON (0.25)
13102-081-000
Superseded by 13102-081-505
|
$37.85 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50)
13103-081-000
Superseded by 13103-081-505
|
$37.85 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50)
13103-081-505
|
$37.85 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75)
13104-081-000
Superseded by 13104-081-505
|
$37.85 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75)
13104-081-505
|
$37.85 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00)
13105-081-000
Superseded by 13105-081-505
|
$29.53 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00)
13105-081-505
|
$29.53 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-044-010
|
$8.85 | ||
|
Unavailable |
|||
|
#5
CLIP, PISTON PIN (13MM)
13115-001-000
Superseded by 94601-13000
|
$0.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP, PISTON PIN (13MM)
94601-13000
|
$0.62 | ||
|
Unavailable |
|||
|
#11
SPROCKET, TIMING (15T)
14311-081-010
|
$7.01 | ||
|
Unavailable |
|||
|
#12
COLLAR, TIMING SPROKET DISTANCE (NOT AVAILABLE)
14315-083-000
|
$7.77 | ||
|
Unavailable |
|||
|
#13
PIN, TIMING KNOCK (NOT AVAILABLE)
90719-081-000
|
$0.91 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL (3X4) (NOT AVAILABLE)
90741-044-000
Superseded by 90741-122-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL (3X4) (NOT AVAILABLE)
90741-122-000
|
$1.64 | ||
|
Unavailable |
|||
|
#15
ROLLER, ROD (2.5X8.5) (NOT AVAILABLE)
91101-205-010
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (15X25X6)
91211-044-000
Superseded by 91211-044-003
|
$2.45 | ||
|
Unavailable |
|||
|
#16
OIL SEAL (15X25X6)
91211-044-003
|
$2.45 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL (6202)
96100-62020
Superseded by 96100-62020-00
|
$10.62 | ||
|
Unavailable |
|||
|
#17
BEARING, RADIAL BALL (6202)
96100-62020-00
|
$10.62 | ||
|
Unavailable |
|||
|
#18
BEARING, RADIAL BALL (6203)
96100-62030
Superseded by 96100-62030-00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.55 | ||
|
Unavailable |
|||
