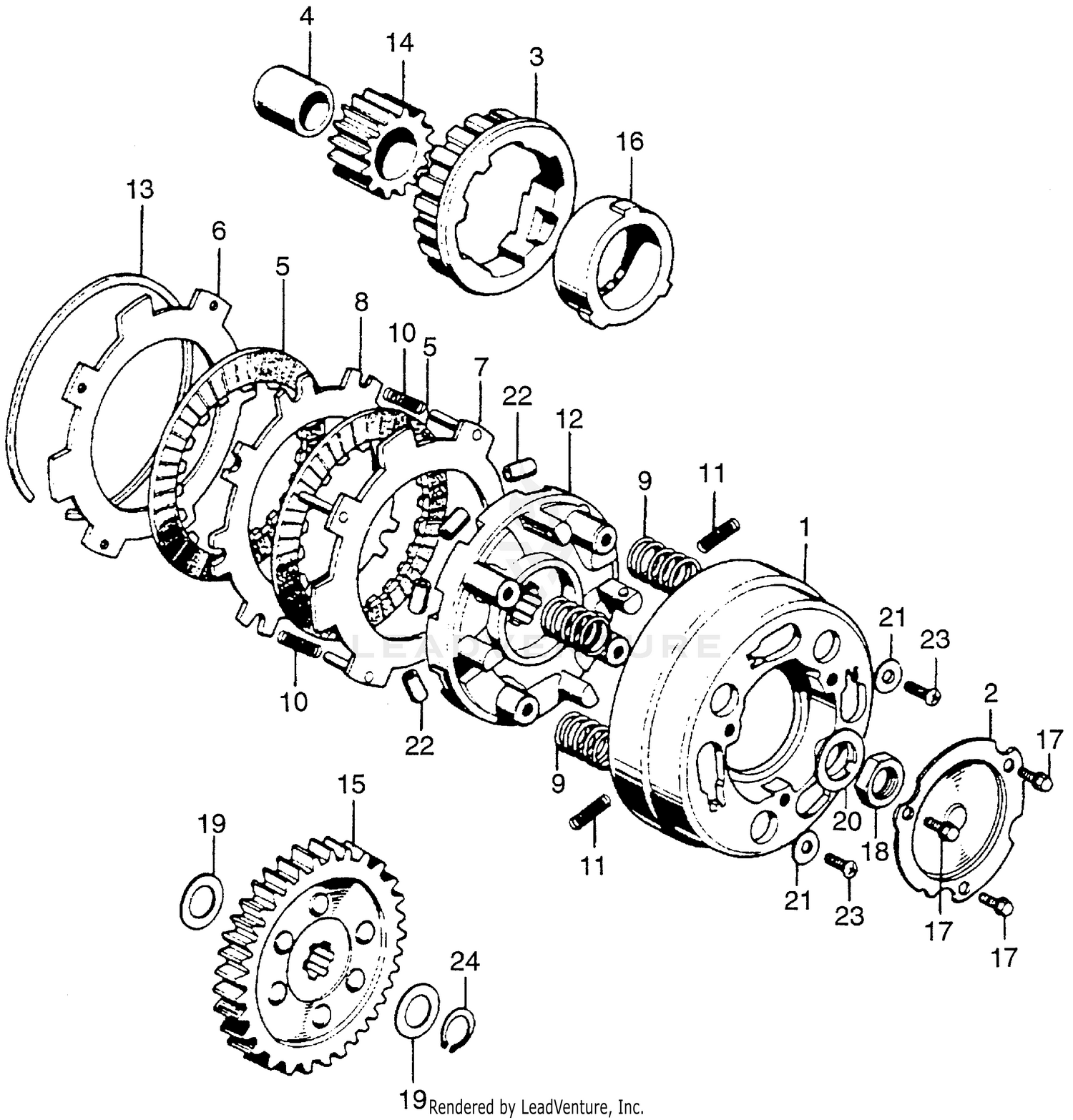

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH (OUTER)
22101-040-030
|
$39.09 | ||
|
Unavailable |
|||
|
#2
COVER, CLUTCH (OUTER)
22110-083-000
|
$13.37 | ||
|
Unavailable |
|||
|
#3
CENTER, CLUTCH (17T)
22120-040-030
|
$82.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, CLUTCH CENTER (NOT AVAILABLE)
22131-083-000
|
$5.51 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-040-000
Superseded by 22201-165-951
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-087-306
Superseded by 22201-165-951
|
$17.22 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-165-951
|
$17.22 | ||
|
Unavailable |
|||
|
#6
PLATE A, CLUTCH
22310-GB0-910
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE A, CLUTCH
22310-041-010
Superseded by 22310-GB0-910
|
$17.67 | ||
|
Unavailable |
|||
|
#7
PLATE B, CLUTCH
22321-041-000
Superseded by 22321-046-020
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE B, CLUTCH
22321-046-020
|
$11.91 | ||
|
Unavailable |
|||
|
#8
PLATE C, CLUTCH
22331-041-000
|
$7.43 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH
22401-040-010
|
$2.66 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH
22401-083-000
Superseded by 22401-040-010
|
$2.66 | ||
|
Unavailable |
|||
|
#10
SPRING, CLUTCH FREE
22411-041-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH DAMPER
22421-040-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DRIVE
22510-083-000
|
$56.09 | ||
|
Unavailable |
|||
|
#13
SET-RING (101.5MM)
22901-001-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, DRIVE
23101-083-000
|
$55.80 | ||
|
Unavailable |
|||
|
#15
GEAR, PRIMARY DRIVEN (54T)
23110-083-000
|
$110.10 | ||
|
Unavailable |
|||
|
#16
OUTER, DRIVE GEAR (18T) (NOT AVAILABLE)
23112-041-030
|
$29.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CLUTCH SET (OUTER)
90041-129-000
|
$4.97 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK (14MM)
90231-KG4-000
|
$2.42 | ||
|
Unavailable |
|||
|
#18
NUT, LOCK (14MM)
90231-816-000
Superseded by 90231-KG4-000
|
$2.42 | ||
|
Unavailable |
|||
|
#19
WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)
90411-001-000
|
$4.15 | ||
|
Unavailable |
|||
|
#20
WASHER, LOCK (14MM)
90434-816-000
|
$2.14 | ||
|
Unavailable |
|||
|
#21
WASHER, STOPPER
90483-040-000
Superseded by 90483-041-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROLLER (8X10)
91102-041-000
Superseded by 91102-041-007
|
$2.41 | ||
|
Unavailable |
|||
|
#22
ROLLER (8X10)
91102-041-007
|
$2.41 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (OUTER) (17MM)
94510-17000
|
$1.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
