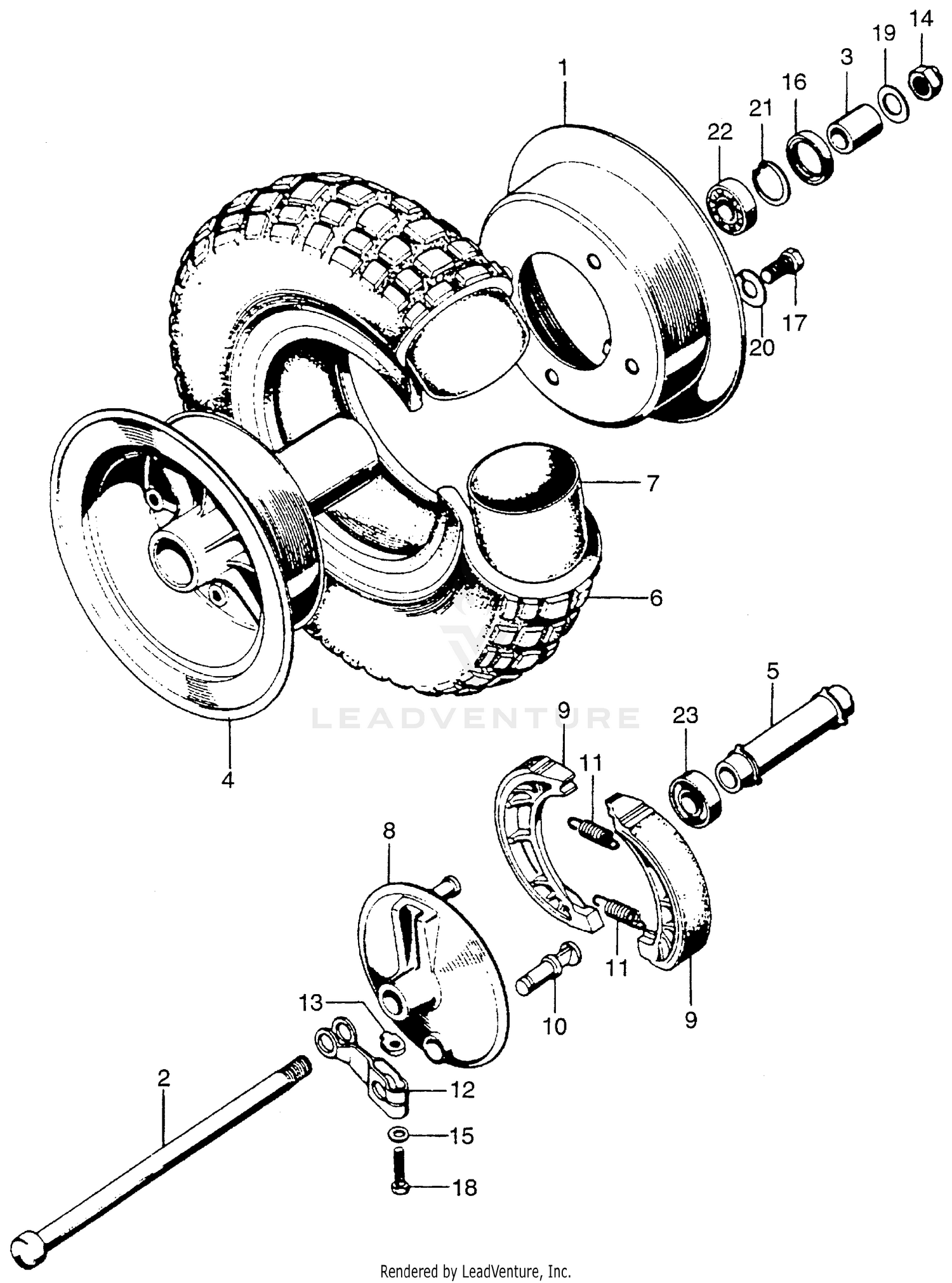

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE (JB)
06450-GAG-003
Superseded by 06450-178-932
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-001-405
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
451A0-001-670
Superseded by 06450-178-932
|
$30.16 | ||
|
Unavailable |
|||
|
#1
RIM, RR. WHEEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
42701-114-000A
|
$50.97 | ||
|
Unavailable |
|||
|
#2
AXLE, FR. WHEEL
44301-045-010
|
$14.26 | ||
|
Unavailable |
|||
|
#3
COLLAR, FR. WHEEL SIDE
44311-045-670
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, FR. WHEEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
44601-114-010A
|
$243.37 | ||
|
Unavailable |
|||
|
#5
COLLAR, FR. AXLE DISTANCE
44620-045-020
|
$7.47 | ||
|
Unavailable |
|||
|
#6
TIRE, FR. (4.00-5) (NITTO) (NOT AVAILABLE)
44711-114-003
Superseded by 44711-114-006
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE, FR. (4.00-5) (NITTO) (NOT AVAILABLE)
44711-114-006
|
$22.80 | ||
|
Unavailable |
|||
|
#7
TUBE (400X5) (TR-244) (NOT AVAILABLE)
08400-04500
Superseded by 44712-114-003
|
$45.89 | ||
|
Unavailable |
|||
|
#7
TUBE (400X5) (TR-244) (NOT AVAILABLE)
44712-114-003
|
$45.89 | ||
|
Unavailable |
|||
|
#8
PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE)
45100-045-020
Superseded by 45100-045-020ZA
|
$102.21 | ||
|
Unavailable |
|||
|
#8
PANEL, RR. BRAKE *NO_CODE* (NO COLOR NAME ASSIGNED) (NOT AVAILABLE)
45100-045-020ZA
|
$102.21 | ||
|
Unavailable |
|||
|
#9
SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)
45120-001-010
|
$5.96 | ||
|
Unavailable |
|||
|
#10
CAM, RR. BRAKE (NOT AVAILABLE)
45131-045-000
|
$33.38 | ||
|
Unavailable |
|||
|
#11
SPRING, BRAKE SHOE
45133-028-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, FR. BRAKE
45410-045-405
|
$17.32 | ||
|
Unavailable |
|||
|
#12
ARM, FR. BRAKE
45410-045-670
Superseded by 45410-045-405
|
$17.32 | ||
|
Unavailable |
|||
|
#13
NUT, FR. BRAKE ARM SETTING
45436-001-000
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCK (12MM)
90353-045-000
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, RR. BRAKE ARM
90525-001-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (21X35X5.5)
91252-001-020
Superseded by 91252-001-023
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (21X35X5.5)
91252-001-023
|
$7.71 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X16)
92000-06016
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X16)
92000-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X16)
92000-06016-1A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X16)
92100-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X16)
92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X16)
92200-06016-0A
Superseded by 92101-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#19
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (32MM)
94520-32000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6201)
96100-62010
Superseded by 96100-62010-00
|
$10.15 | ||
|
Unavailable |
|||
|
#22
BEARING, RADIAL BALL (6201)
96100-62010-00
|
$10.15 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (6201U)
96140-62010
Superseded by 96140-62010-00
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6201U)
96140-62010-00
|
$11.67 | ||
|
Unavailable |
|||
