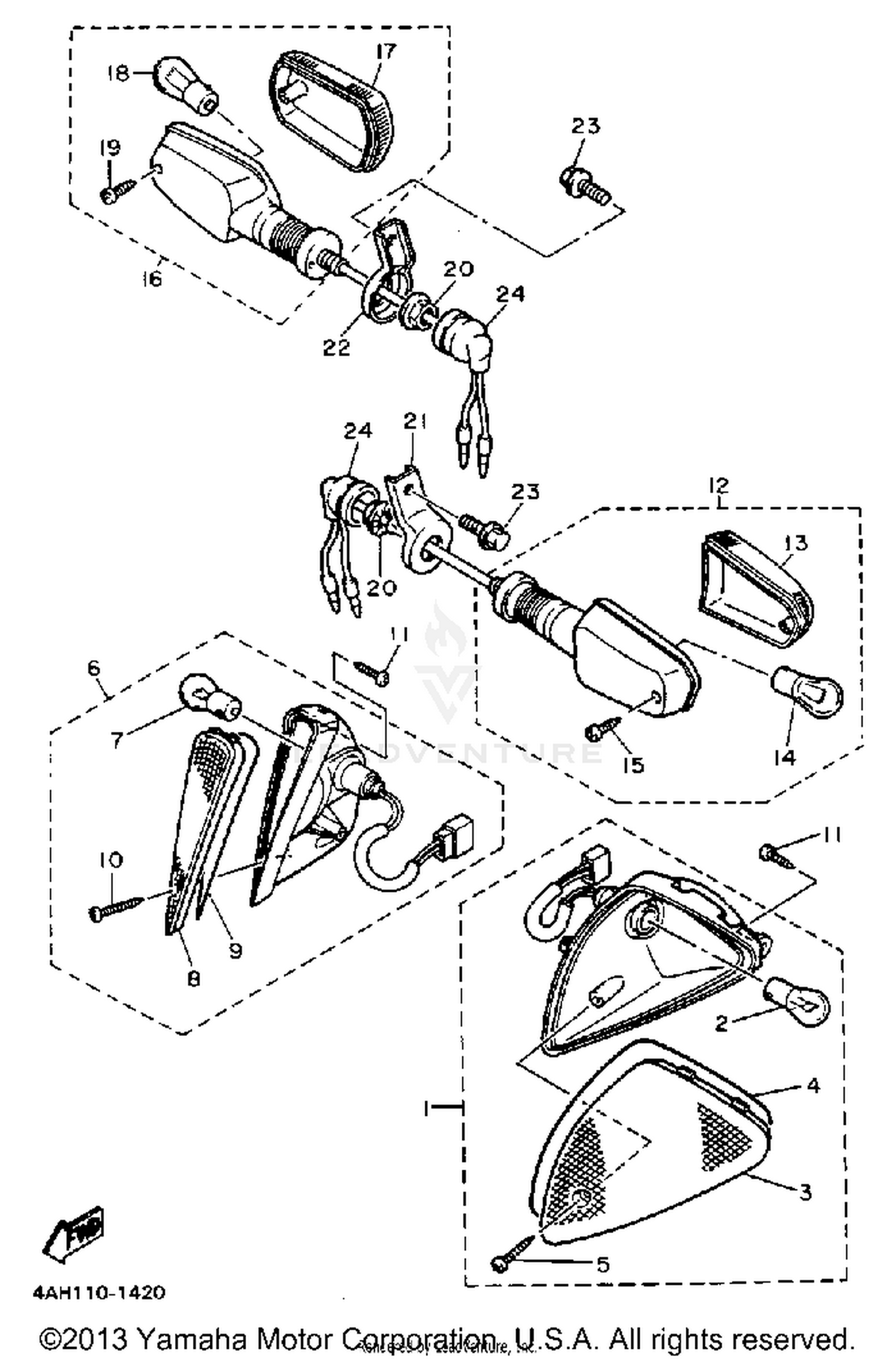

Turnsignal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FLSHR LITE ASSEMBLYASSY 1
4AH-83310-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
3XW-83312-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLSHR LENS
3XW-83313-00-00
Superseded by 1TX-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
SCREW, TAPPING (3XW)
97702-40120-00
|
$1.38 | ||
|
Unavailable |
|||
|
#6
FRT FLSHR LITE ASSEMBLYASSY 2
4AH-83320-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#7
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Unavailable |
|||
|
#8
LENS, FLASHER 2
3XW-83322-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, FLSHR LENS
3XW-83313-00-00
Superseded by 1TX-83313-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#10
SCREW, TAPPING (3XW)
97702-40120-00
|
$1.38 | ||
|
Unavailable |
|||
|
#11
SCREW, TAPPING
97780-50514-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
REAR FLASHER LIGHT ASSY 1
1UF-83330-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS, FLASHER 2
51L-83342-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
REAR FLASHER LIGHT ASSY 2
1UF-83340-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS, FLASHER
51L-83332-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, FLASHER
36Y-83368-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
STAY, FLASHER
36Y-83369-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP
18G-83365-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
