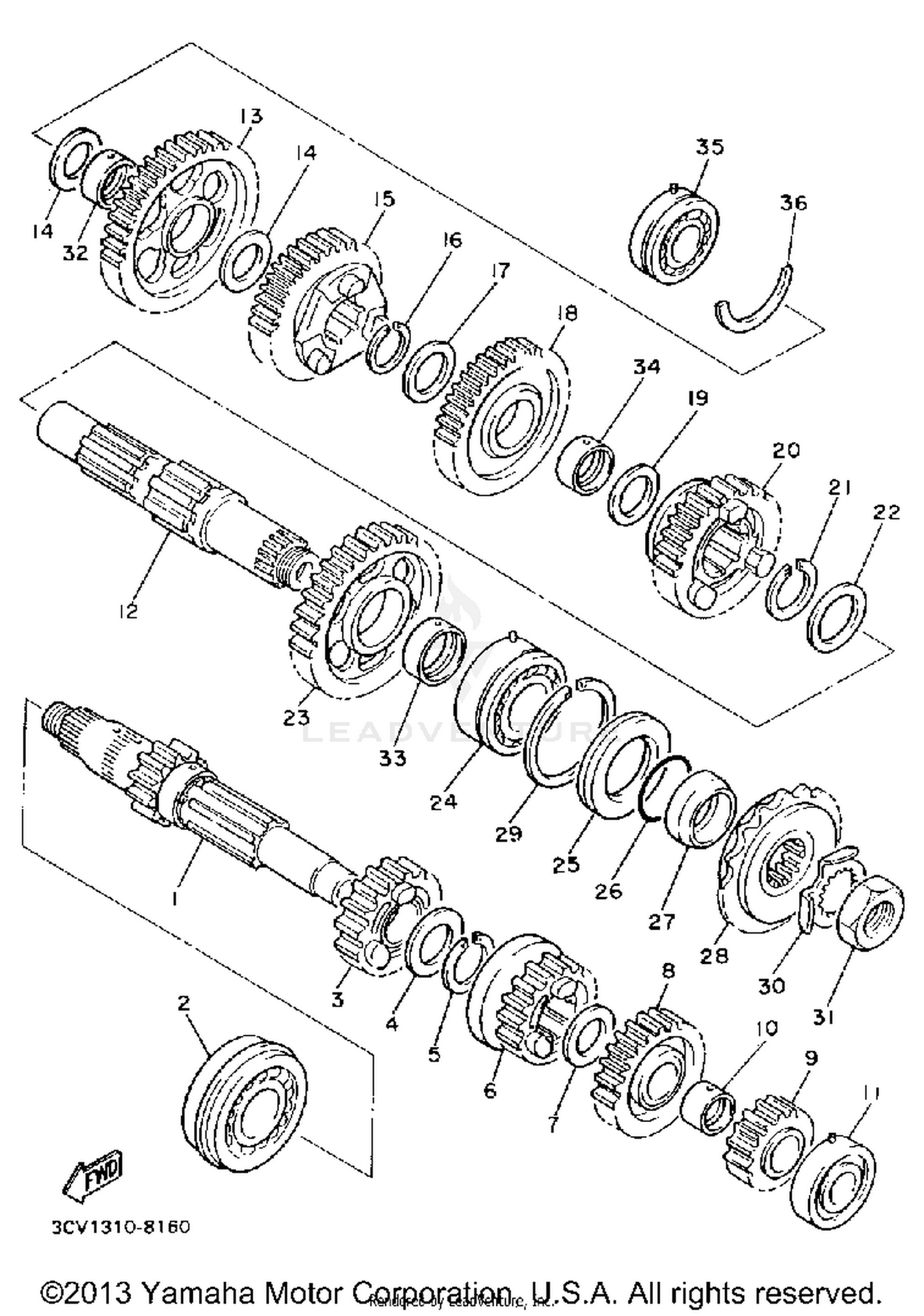

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
1TX-W1741-00-00
Superseded by 99999-02897-00
|
$194.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-36401-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION
1TX-17141-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#4
WASHER
90209-25196-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-28062-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
1TX-17131-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-226H9-00
Superseded by 90201-225M9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 5TH PINION
1TX-17151-00-00
Superseded by 5UX-17151-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION
3CV-17121-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-220R2-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30434-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AXLE, DRIVE
1TX-17421-00-00
|
$171.99 | ||
|
Unavailable |
|||
|
#13
GEAR, 1ST WHEEL
1TX-17211-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-257H0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL (31T
36Y-17241-00-00
Superseded by 5EA-17241-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93440-30077-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
90209-27192-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 3RD WHEEL
1TX-17231-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-307H1-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 5TH WHEEL
1TX-17251-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93440-34025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-32231-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 2ND WHEEL
3CV-17221-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93305-20605-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-40330-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-30660-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-304K7-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE (17T)
3CV-17460-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
93440-62032-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK
90215-26241-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT
90179-22063-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-250R3-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-350R5-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-300R4-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING
93306-20561-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
93440-52118-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
