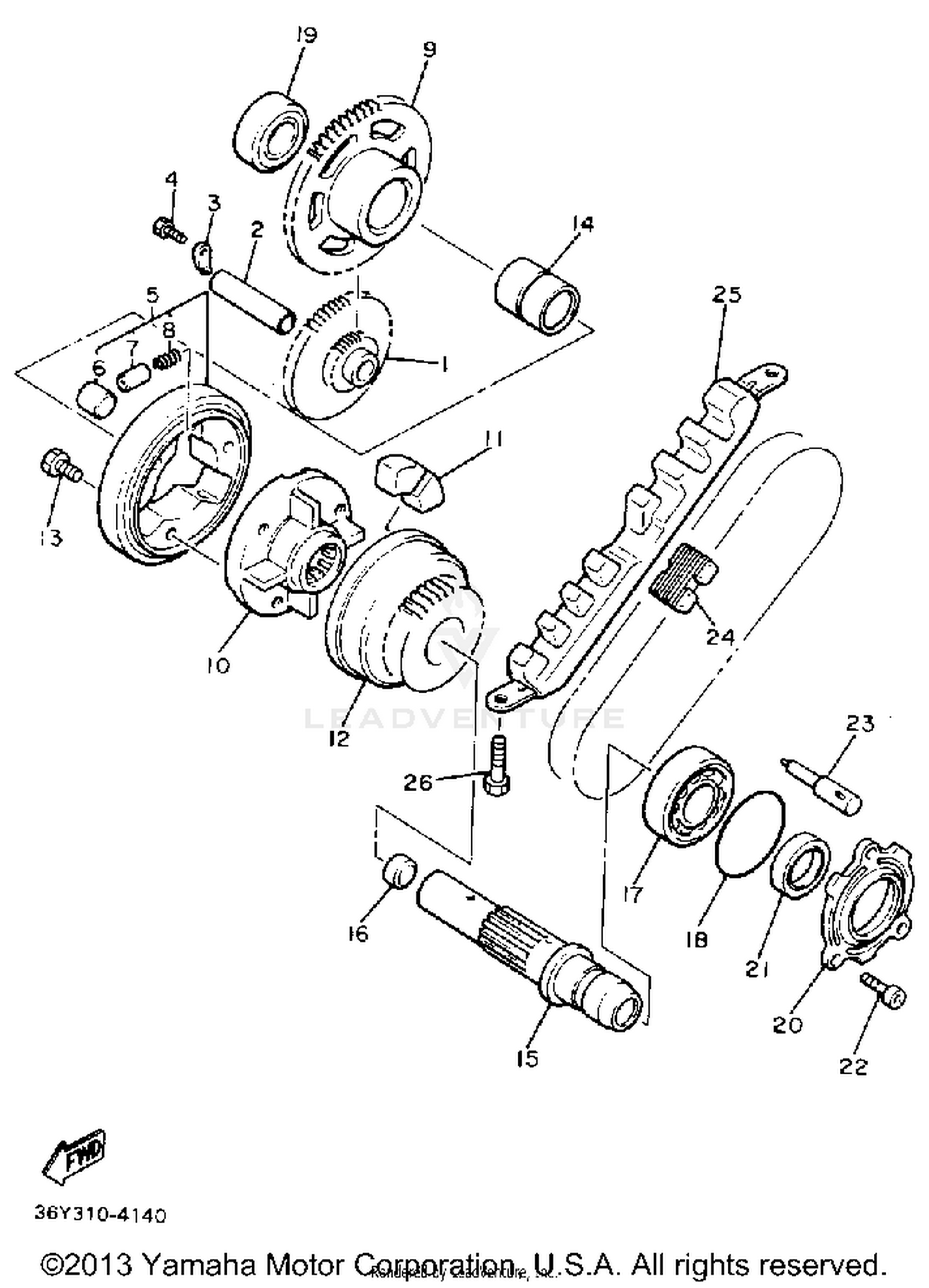

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
36Y-15512-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
36Y-15521-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, STOPPER
2H7-15531-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97021-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
STRCLUTCH OTR ASY
36Y-15580-01-00
Superseded by 36Y-15580-02-00
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93615-17125-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, STARTER CLUTCH SPRING
1J7-15583-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-04503-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, IDLER 2
36Y-15517-01-00
|
$161.99 | ||
|
Unavailable |
|||
|
#10
WHEEL, STARTER
12R-15524-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#11
ABSORBER 1
4H7-16155-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, STARTER 2
36Y-15519-00-00
|
$71.93 | ||
|
Unavailable |
|||
|
#13
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COLLAR
90387-201L2-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT 2
3CV-15522-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90331-15039-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-20545-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-47440-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING
93306-00426-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOUSING, BEARING 1
36Y-15163-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-25253-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE
36Y-13454-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN, PRIMARY
36Y-11456-00-00
Superseded by 4FM-11456-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, UPPER
36Y-11474-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
