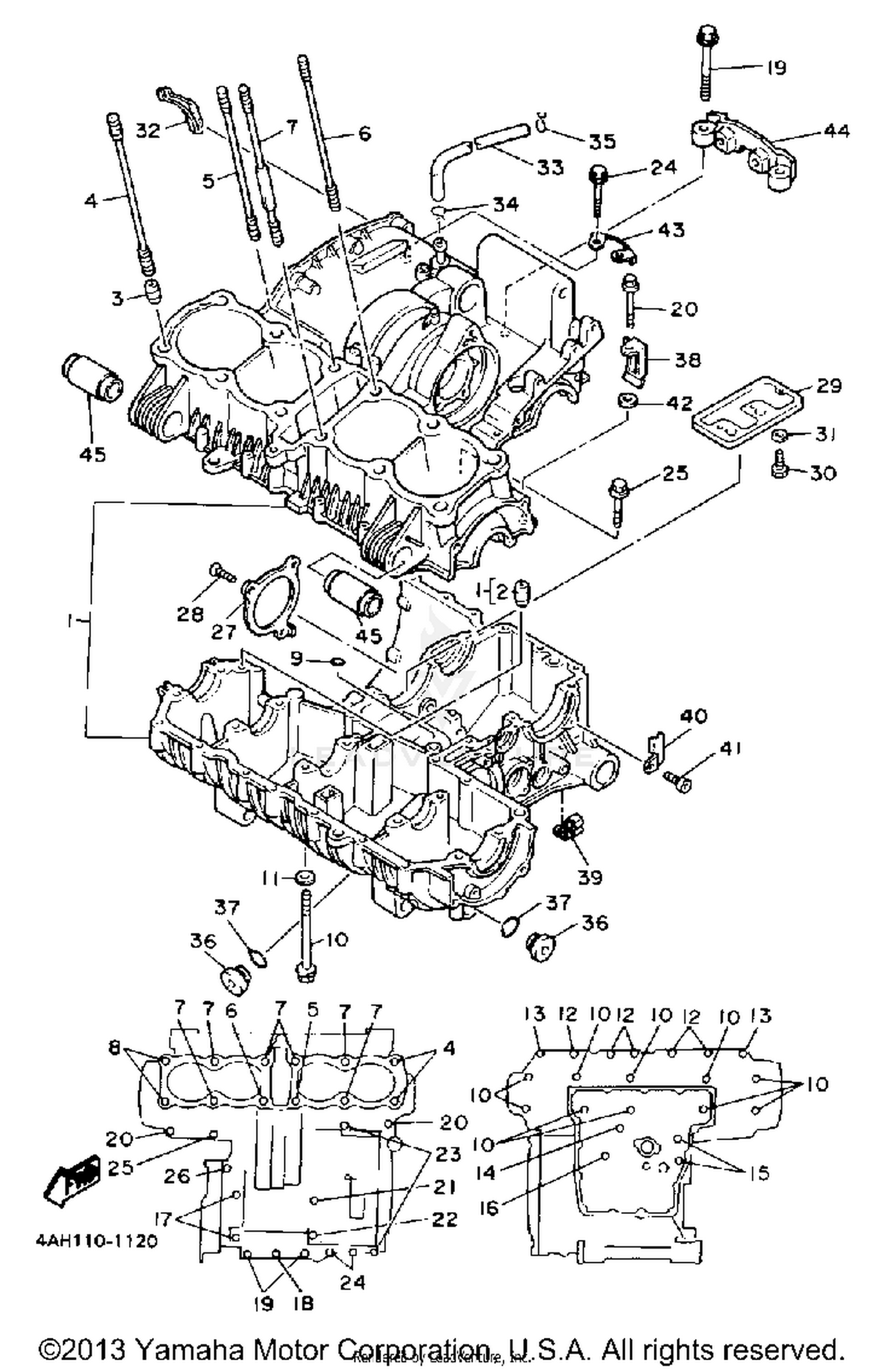

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRKCS, ASY
3XW-15100-01-00
Superseded by 3XW-15100-09-00
|
$2,172.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD (3XW)
90116-10563-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-10561-00
Superseded by 90116-10516-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD (3XW)
90116-10562-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,CYL HOLDING 3
3XW-11363-00-00
Superseded by 3XW-11363-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,CYL HOLDING 4
3XW-11364-00-00
Superseded by 3XW-11364-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-07438-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
95816-08100-00
Superseded by 95817-08100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-094G1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95816-10050-00
Superseded by 95817-10050-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95816-06110-00
|
$2.77 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95816-06095-00
Superseded by 95817-06095-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95816-08055-00
Superseded by 95817-08055-00
|
$4.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
95816-10060-00
Superseded by 95817-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95816-10075-00
|
$2.58 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95816-06050-00
Superseded by 95817-06050-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95816-06125-00
Superseded by 95817-06125-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95816-06070-00
Superseded by 95817-06070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95816-06065-00
Superseded by 95817-06065-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95816-06055-00
Superseded by 95817-06055-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
BOLT,FLANGE
95816-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PLATE, BRNG COVER
36Y-15383-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, COUNTERSUNK
90151-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, OIL PUMP
36Y-15412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97001-05010-00
Superseded by 97095-05010-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
1TX-15365-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#33
PIPE, BREATHER 1
36Y-11166-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#34
CLIP
90467-14015-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
CLIP
90467-14015-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
PLUG
4H7-15189-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
93210-20573-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90465-10251-00
Superseded by 90465-10027-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90465-08252-00
Superseded by 90465-06376-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
CLAMP
90465-08253-00
Superseded by 90465-08056-00
|
$7.99 | ||
|
Unavailable |
|||
|
#41
BOLT
91316-06010-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
CLAMP
90462-10145-00
|
$3.95 | ||
|
Unavailable |
|||
|
#44
BRACKET
3XW-15199-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#45
COLLAR
90387-207W3-00
|
$113.99 | ||
|
Unavailable |
|||
