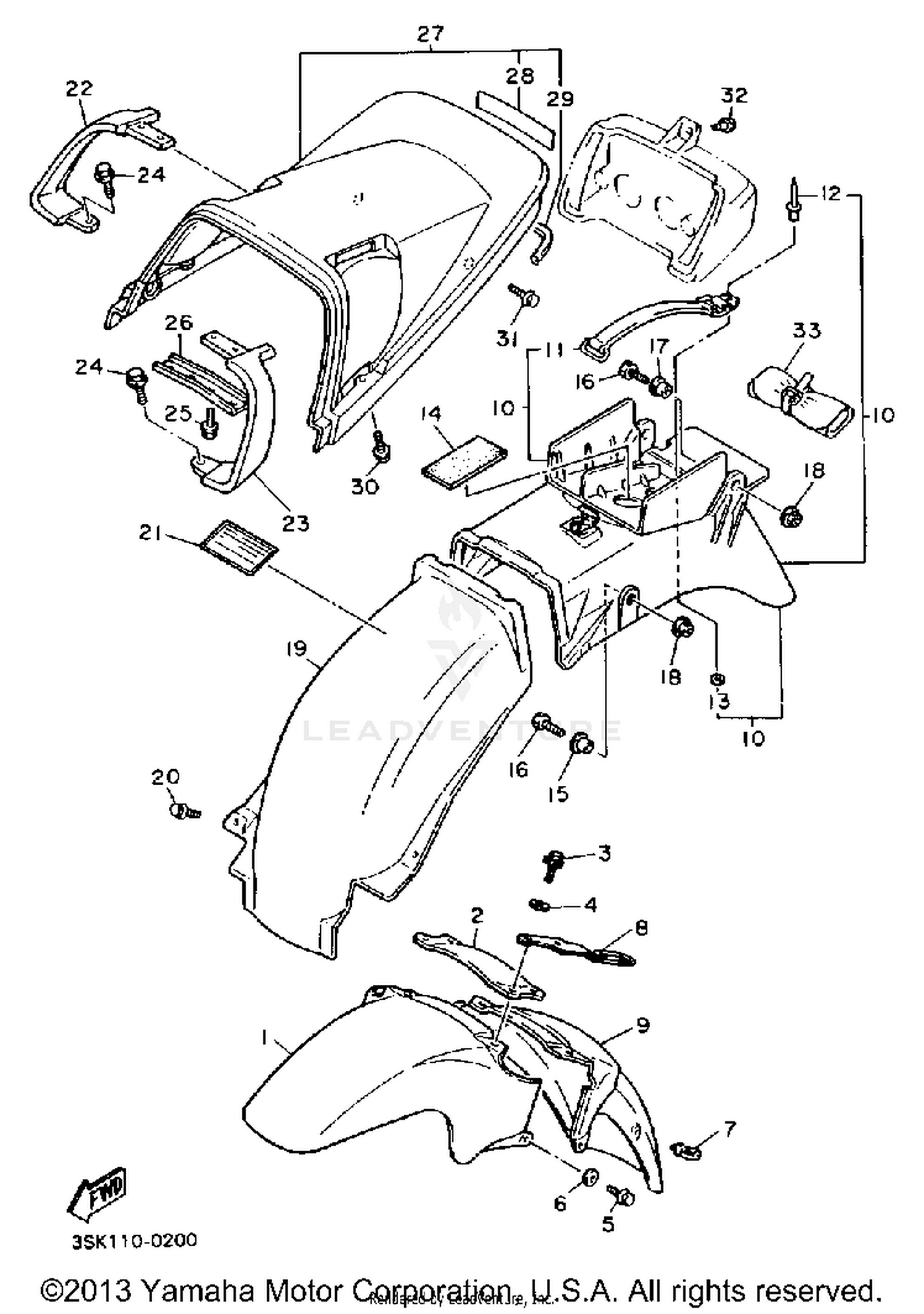

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
36Y-21511-01-P2
|
$129.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FENDER
36Y-21512-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06050-00
Superseded by 90201-06M08-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-062A8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, CABLE
1A8-21518-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
3CV-21596-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#9
FENDER, FRONT 2
36Y-21556-01-P2
|
$154.99 | ||
|
Unavailable |
|||
|
#10
REAR FENDER
47M-W2161-01-00
|
$97.19 | ||
|
Unavailable |
|||
|
#11
BAND, TOOL
36Y-21376-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#12
RIVET, BLIND
90267-40076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-044H9-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT 2
26H-2848K-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-06648-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-06648-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GUARD, MUD
36Y-21629-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06108-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, EPA U49
4AH-2179V-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#
PLATE, EPA CAL 2
4AH-2179R-10-00
|
$7.74 | ||
|
Unavailable |
|||
|
#22
STAY, REAR
1TX-21645-00-00
|
$227.99 | ||
|
Unavailable |
|||
|
#23
STAY, REAR
1TX-21644-00-00
|
$227.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE
95821-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY 1
1TX-2164F-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#27
COVER, REAR FENDER
1TX-Y2165-80-P2
|
$371.99 | ||
|
Unavailable |
|||
|
#28
EMBLEM, YAMAHA
99226-00020-00
Superseded by 99246-00080-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
MOLD 2
36Y-21649-00-00
Superseded by 1TX-28346-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#30
SCREW, WITH WASHER
90159-05022-00
Superseded by 90159-05044-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER 2
36Y-21639-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
TOOL KIT
3XW-28100-00-00
|
$177.99 | ||
|
Unavailable |
|||
