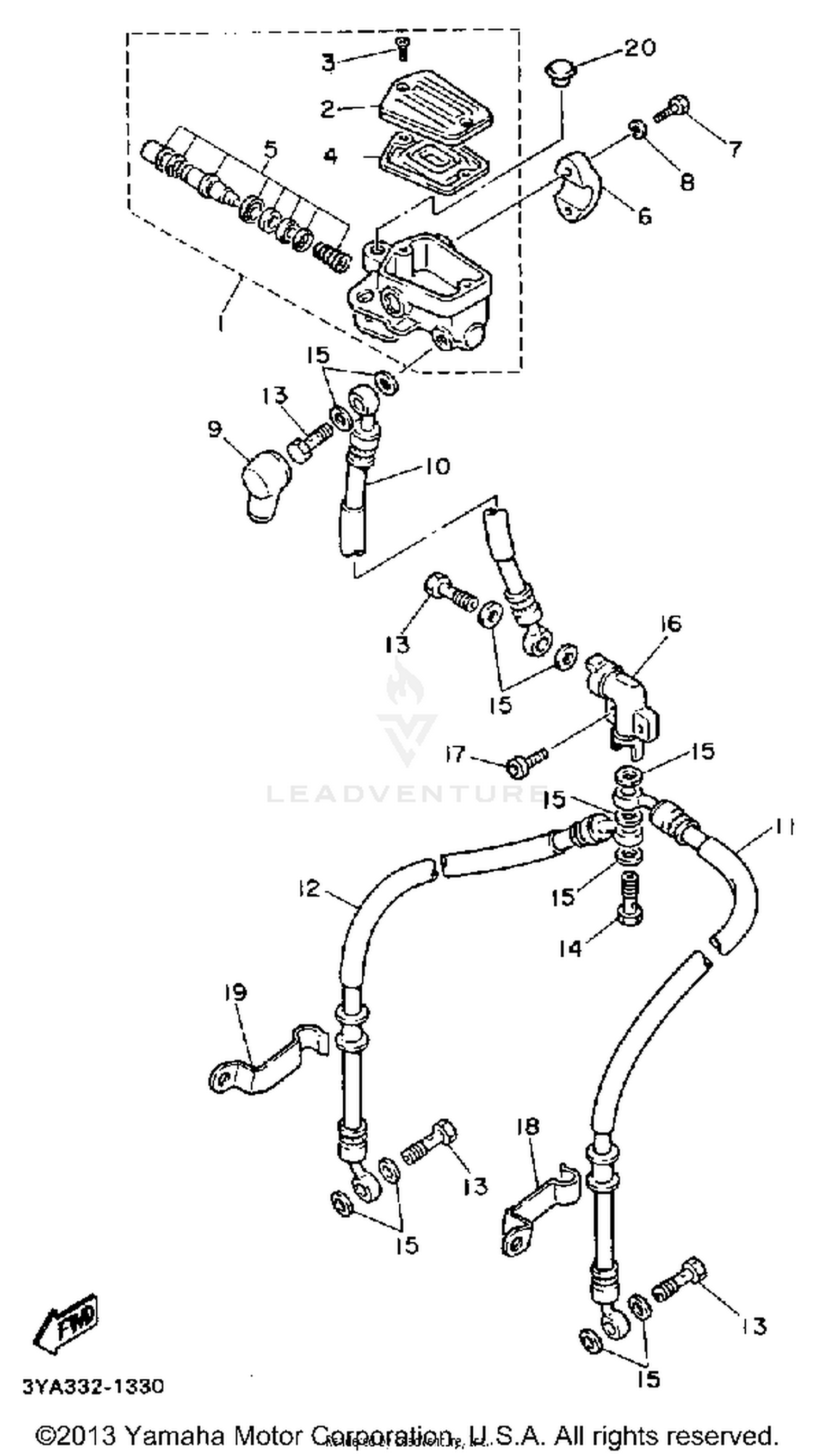

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
36Y-25850-01-00
Superseded by 3HE-2583T-02-00
|
$219.99 | ||
|
Unavailable |
|||
|
#2
CAP, RESERVOIR
36Y-25852-01-00
Superseded by 3HE-25852-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
36Y-25854-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER KIT, MASTER
36Y-W0041-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
36Y-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE, BRAKEL
36Y-25872-01-00
Superseded by 99999-02578-00
|
$79.99 | ||
|
Unavailable |
|||
|
#11
BRAKE HOSE SET(3XW)
3XW-25872-00-00
Superseded by 99999-02508-00
|
$97.99 | ||
|
Unavailable |
|||
|
#12
BRAKE HOSE SET(3XW)
3XW-25873-00-00
Superseded by 99999-02516-00
|
$100.99 | ||
|
Unavailable |
|||
|
#13
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UNION
90401-10095-00
Superseded by 90401-10038-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT
11U-25885-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#17
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
Unavailable |
|||
|
#18
HOLDER, BRKE HOSE 1
3CW-25875-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
HOLDER, BRKE HOSE 2
3CW-25876-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#20
PLUG
90338-09012-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
