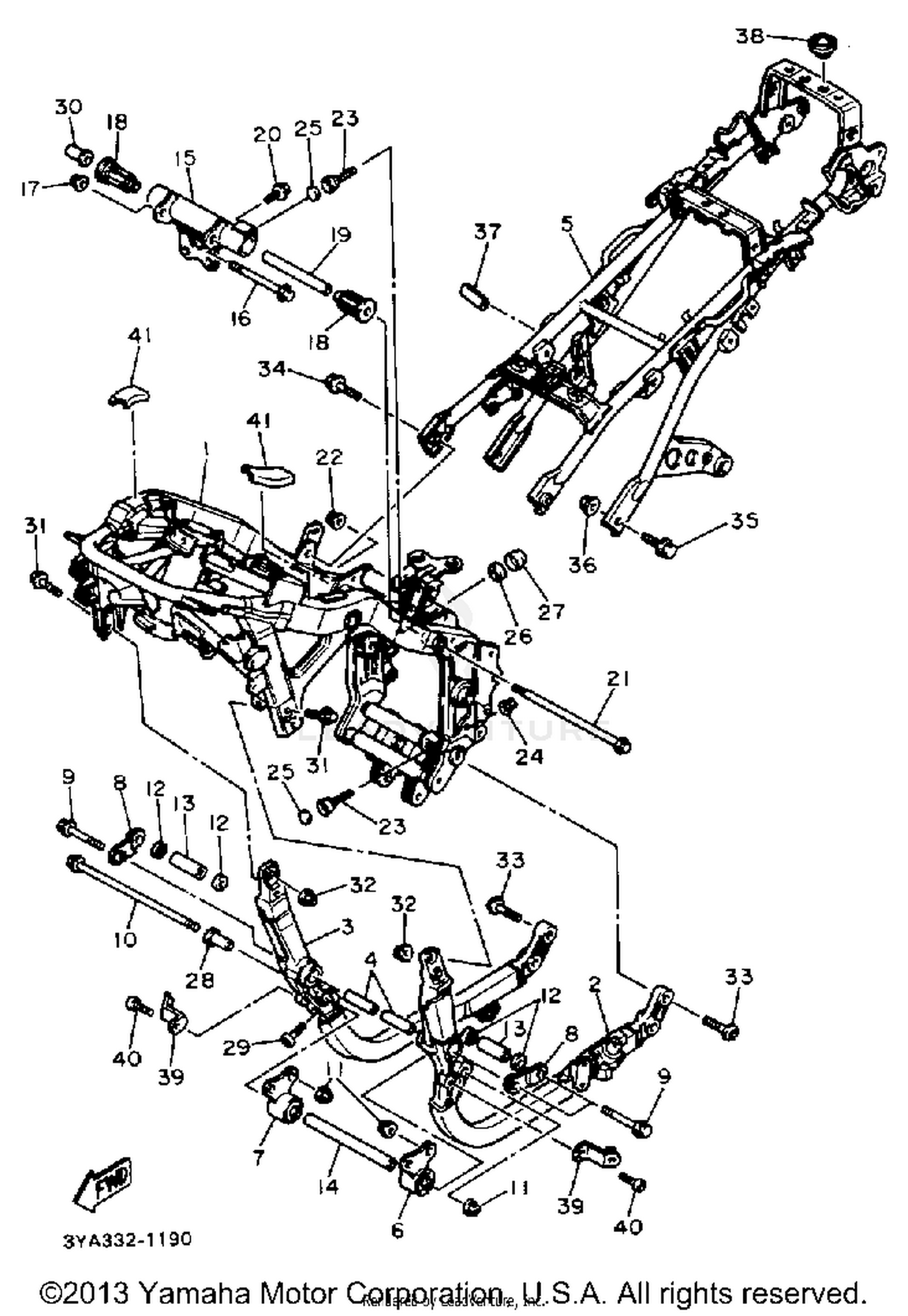

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4AH-21110-10-35
|
$760.99 | ||
|
Unavailable |
|||
|
#
FRAME COMP.
4AH-21110-01-35
Superseded by 4AY-21110-00-35
|
$1,496.99 | ||
|
Unavailable |
|||
|
#2
TUBE, DOWN
4AH-21140-00-35
|
$224.99 | ||
|
Unavailable |
|||
|
#
TUBE, DOWN
3XW-21140-00-35
|
$355.99 | ||
|
Unavailable |
|||
|
#3
DOWN TUBE COMP.2
4AH-21150-00-35
|
$165.99 | ||
|
Unavailable |
|||
|
#
DOWN TUBE COMP.2
3XW-21150-00-35
|
$147.99 | ||
|
Unavailable |
|||
|
#4
BUSH 1
3GB-22123-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRAME, REAR
3XW-21190-00-33
|
$802.99 | ||
|
Unavailable |
|||
|
#6
ENG BRKT SUB-COMP1SUB-COMP. 1
3XW-2140X-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#7
ENG BRKT SUB-COMP2SUB-COMP. 2
3XW-2140Y-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#8
STAY, ENGINE 3
3XW-21316-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
90105-12598-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-12106-00
Superseded by 90105-12047-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, DUST
3XW-2217H-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
COLLAR
90387-124X8-00
|
$14.49 | ||
|
Unavailable |
|||
|
#14
SPACER
90560-12374-00
|
$15.49 | ||
|
Unavailable |
|||
|
#15
STAY, ENGINE 4
3XW-21317-00-00
|
$134.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-10183-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
3XW-21488-00-00
|
$64.76 | ||
|
Unavailable |
|||
|
#19
SPACER, ENG MOUNT
36Y-15327-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-12523-00
Superseded by 90105-12787-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-12421-00
Superseded by 90179-12657-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
WASHER, LOCKENGINE ADJUSTING
3XW-21495-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#24
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
DAMPER, STOPPER
3XW-2140A-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
NUT
3XW-21494-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#27
PLUG (3XW)
90331-32097-00
|
$10.70 | ||
|
Unavailable |
|||
|
#28
COLLAR
90387-123X4-00
|
$3.36 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
91311-10020-00
Superseded by 91314-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR (3XW)
90387-120Y4-00
|
$3.96 | ||
|
Unavailable |
|||
|
#31
BOLT, WASHER BASED
90105-10635-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$2.20 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90149-08296-00
Superseded by 90110-08220-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-10285-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$10.49 | ||
|
Unavailable |
|||
|
#37
MOLD, SIDE COVER 1
1UF-2171L-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
PAD, SEAT
1L9-24741-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BRACKET, BATT BOX
3XW-21149-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#40
BOLT
91311-06010-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER 1
1VJ-14425-00-00
|
$2.75 | ||
|
Unavailable |
|||
