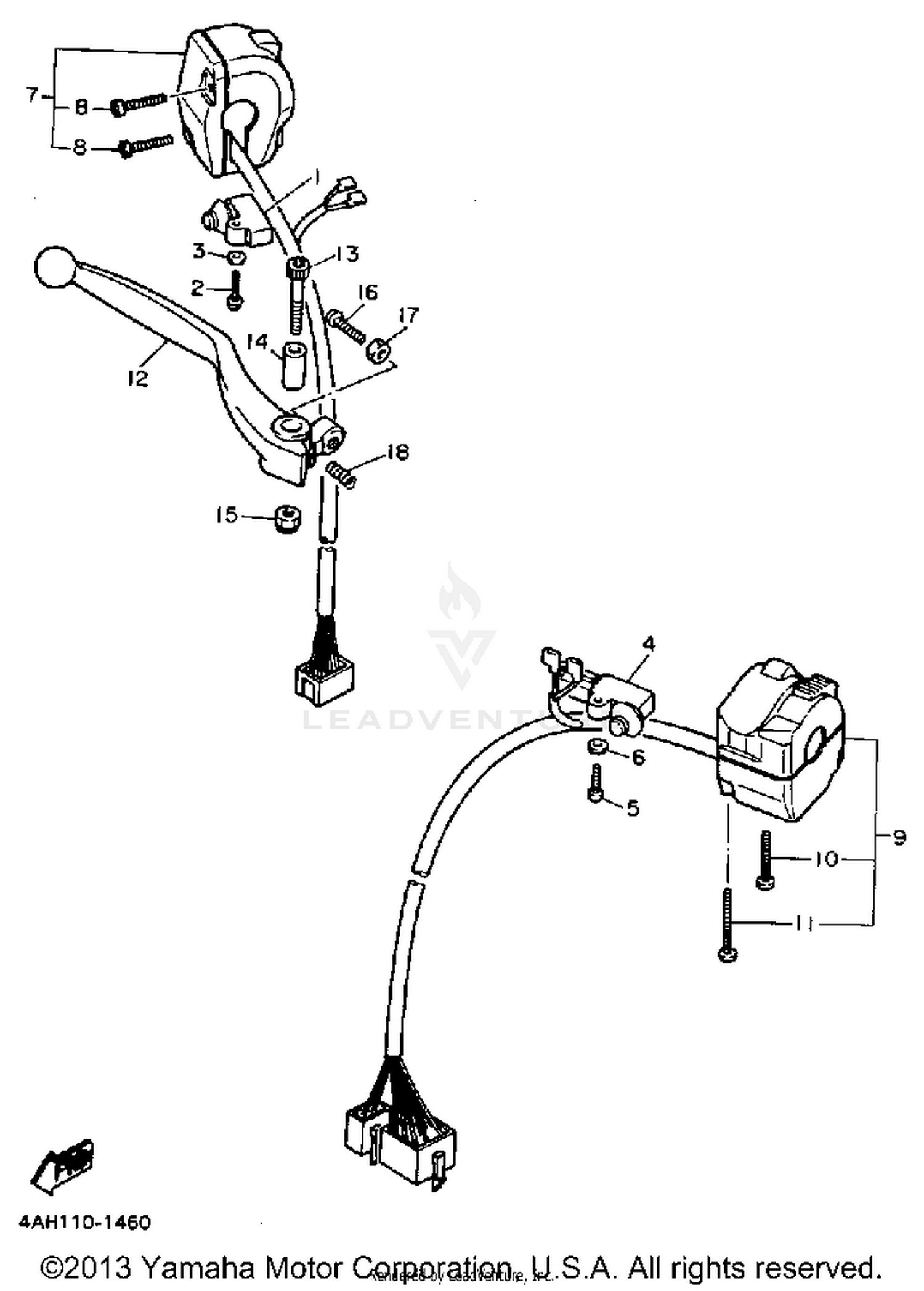

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT STOP SWITCH ASSY
J45-82503-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SWITCH
3XW-82917-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.35 | ||
|
Unavailable |
|||
|
#6
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.85 | ||
|
Unavailable |
|||
|
#7
SWITCH, HANDLE 2
3XW-83975-00-00
Superseded by 4UN-83975-01-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
90157-05057-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SWITCH, HANDLE 3
4AH-83973-00-00
|
$310.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98506-05030-00
Superseded by 98517-05030-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98506-05040-00
Superseded by 98507-05040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER 2
36Y-83922-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06074-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, LEVER 1
36Y-83913-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW
90149-06153-00
Superseded by 90149-06131-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-10312-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
