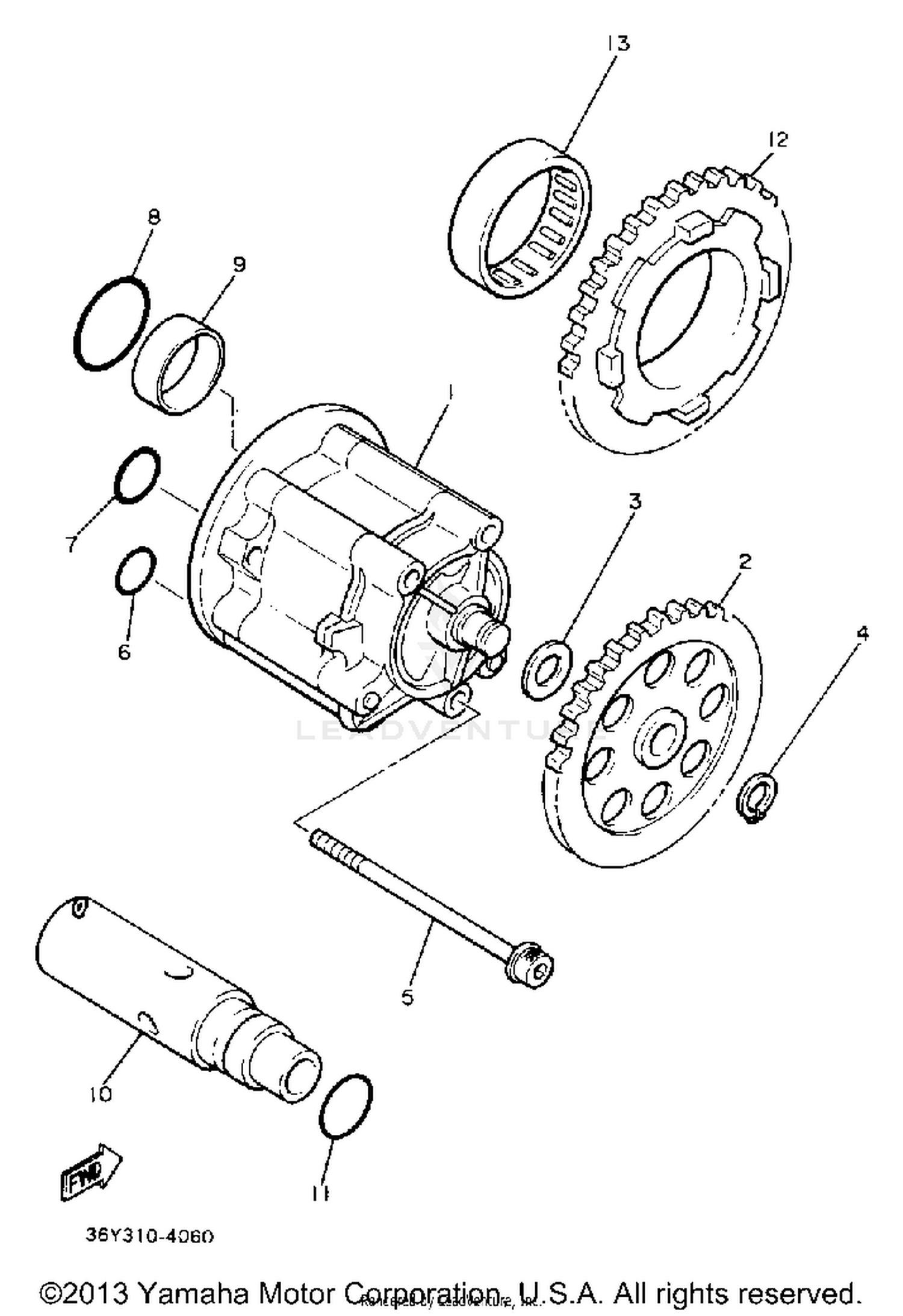

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
3CV-13300-00-00
Superseded by 5UX-13300-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN
36Y-13325-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-106H7-00
Superseded by 90201-10614-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, OUTER
93440-09139-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, FLANGE
95811-06080-00
Superseded by 95817-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-13657-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING
93210-26658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL (36Y)
93626-08210-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELIEF VALVE ASSEMBLY
36Y-13490-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-15566-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
GEAR, PUMP DRIVE
36Y-13324-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93315-23612-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
