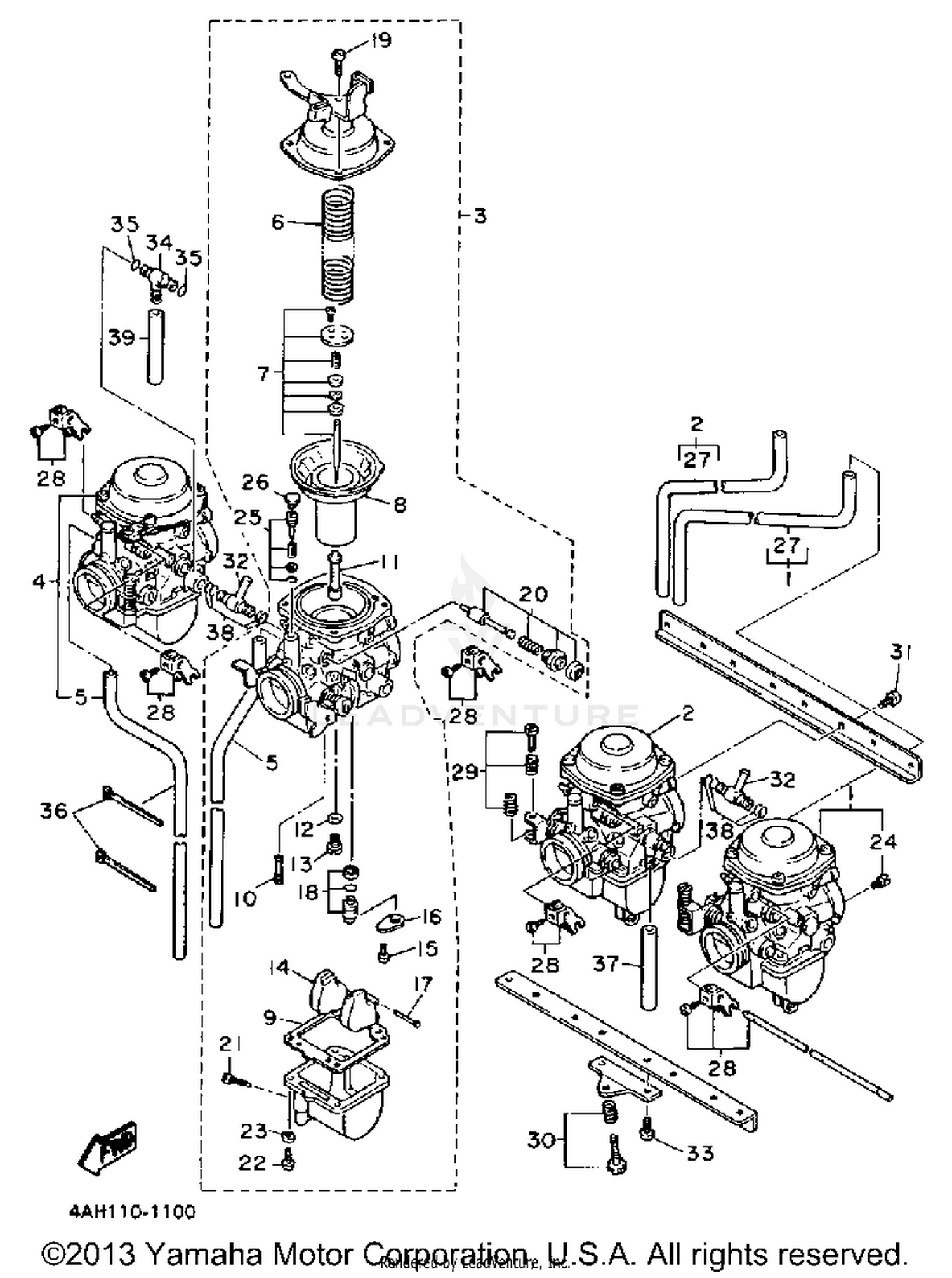

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4AH-14901-00-00
Superseded by 4AH-14901-10-00
|
$720.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
4AH-14901-10-00
|
$720.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 2
4AH-14902-10-00
|
$643.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 2
4AH-14902-00-00
Superseded by 4AH-14902-10-00
|
$643.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 3
4AH-14903-00-00
Superseded by 4AH-14903-10-00
|
$566.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 3
4AH-14903-10-00
|
$566.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 4
4AH-14904-00-00
Superseded by 4AH-14904-10-00
|
$566.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
4AH-14904-10-00
|
$566.99 | ||
|
Unavailable |
|||
|
#5
PIPE
26H-14197-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, DIAPHRAGM
3Y6-14933-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE SET
1TX-1490J-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
DIAPHRAGM ASSEMBLY
50H-14940-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, FLOAT CHAMBER
3XW-14984-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, PILOT (#37.5)
4G0-14142-37-A0
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NOZZLE MAIN
50H-14941-92-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, MAIN JET
137-14153-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
JET, MAIN (110)
620-14231-22-A0
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLOAT
3H5-14985-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE
2H0-14146-00-00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE VALVE SET
3CF-14107-15-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
STARTER SET
36Y-1410A-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
JET, MAIN (#155)
3G2-14231-31-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PILOT SCREW SET
12R-14105-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIPE
26H-14197-00-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
STARTER LEVER SET
36Y-1490L-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#29
STOP SCREW SET
36Y-1490K-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#30
THROTTLE SCREW SET
36Y-14103-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Unavailable |
|||
|
#32
PIPE, STARTER CON
16H-14988-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NIPPLE
17A-14251-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
822-14147-00-00
Superseded by 36Y-14147-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP, PIPE
35H-14139-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE
1WJ-14987-00-00
|
$18.34 | ||
|
Unavailable |
|||
|
#
HOSE
50H-14987-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
36Y-14147-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#39
HOSE
4G0-14197-00-00
Superseded by 50H-14987-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#
PIPE
1WJ-14197-00-00
|
$16.49 | ||
|
Unavailable |
|||
