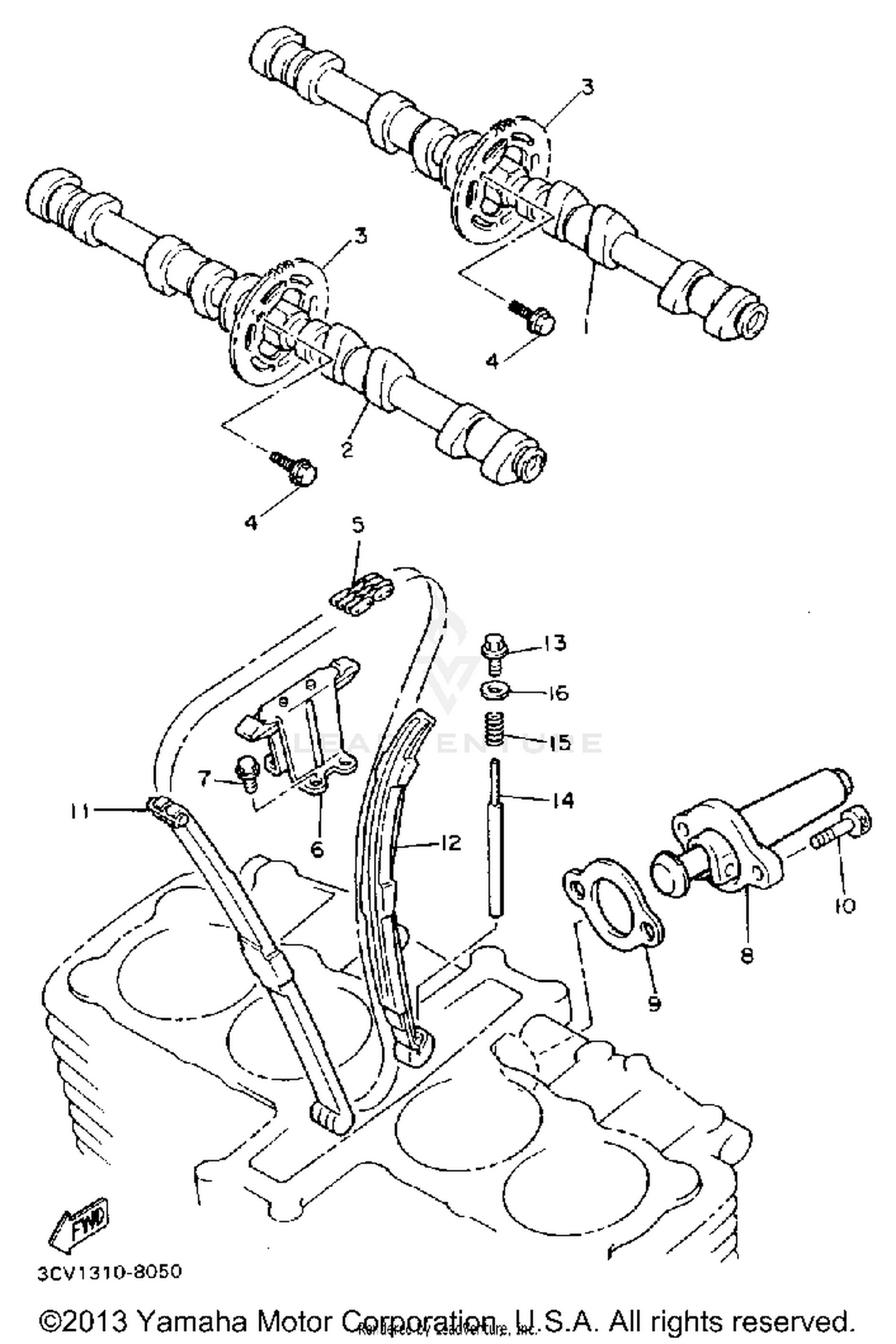

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
47M-12171-00-00
Superseded by 5EA-12171-00-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT 2
47M-12181-00-00
Superseded by 5EA-12181-00-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, CAM CHAIN
36Y-12176-00-00
|
$100.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-07087-00
Superseded by 90105-07004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, CAM
94591-05156-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, STOPPER 2
36Y-12241-01-00
Superseded by 5EA-12241-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06424-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER KIT,CAMC
1TX-12210-00-00
Superseded by 99999-02899-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TENSIONER CASE
4BE-12213-00-00
Superseded by 4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DAMPER, CHAIN 1
36Y-12251-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, CHAIN 2
36Y-12252-03-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, STRAIGHT SCRW
90340-10108-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SPEC''L SHAPE
90249-04184-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-153A2-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
