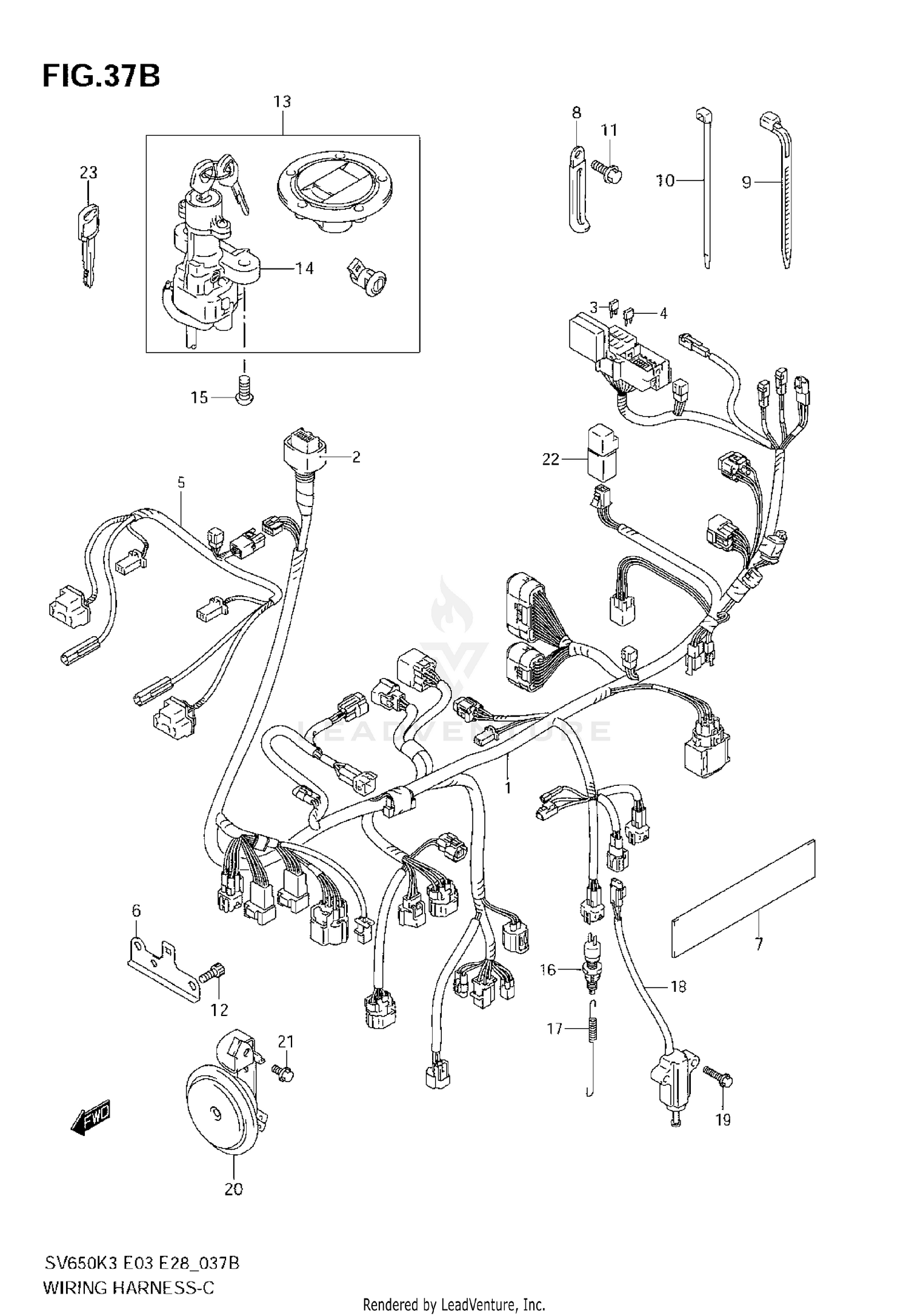

Wiring Harness (sv650sk7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING, NO.1
36610-17GM0
|
$698.25 | ||
|
Unavailable |
|||
|
#1
HARNESS, WIRING, NO.1
36610-17GL0
|
$861.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER SPEEDOMETER COUPLER
36618-33E00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
HARNESS,WIRING
36620-16G10
Superseded by 36620-16G11
|
$172.36 | ||
|
Unavailable |
|||
|
#6
HOLDER, COUPLER
36687-17G10
|
$3.29 | ||
|
Unavailable |
|||
|
#7
PROTECTOR,20X90X1.0 (20X90X1.
33652-26E00
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#8
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:95)
09407-11401
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, WIRING HARNESS
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, NO.3
07130-06103
Superseded by 07130-0610B
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK SET
37000-16840
Superseded by 37000-16844
|
$413.04 | ||
|
Unavailable |
|||
|
#13
LOCK SET
37000-16850
Superseded by 37000-16852
|
$434.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK ASSY,STEER
37100-16G00
Superseded by 37100-16G02
|
$202.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X20)
09139-08016
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY, STOP LAMP
37740-45D00
|
$19.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-06016
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SWITCH ASSY,SID
37840-16G00
Superseded by 37840-16G01
|
$95.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-06257
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN ASSY
38500-17G10
Superseded by 38500-17G11
|
$100.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HORN
01550-0612A
|
$2.37 | ||
|
Unavailable |
|||
|
#22
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, BLANK
37146-33E00
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
