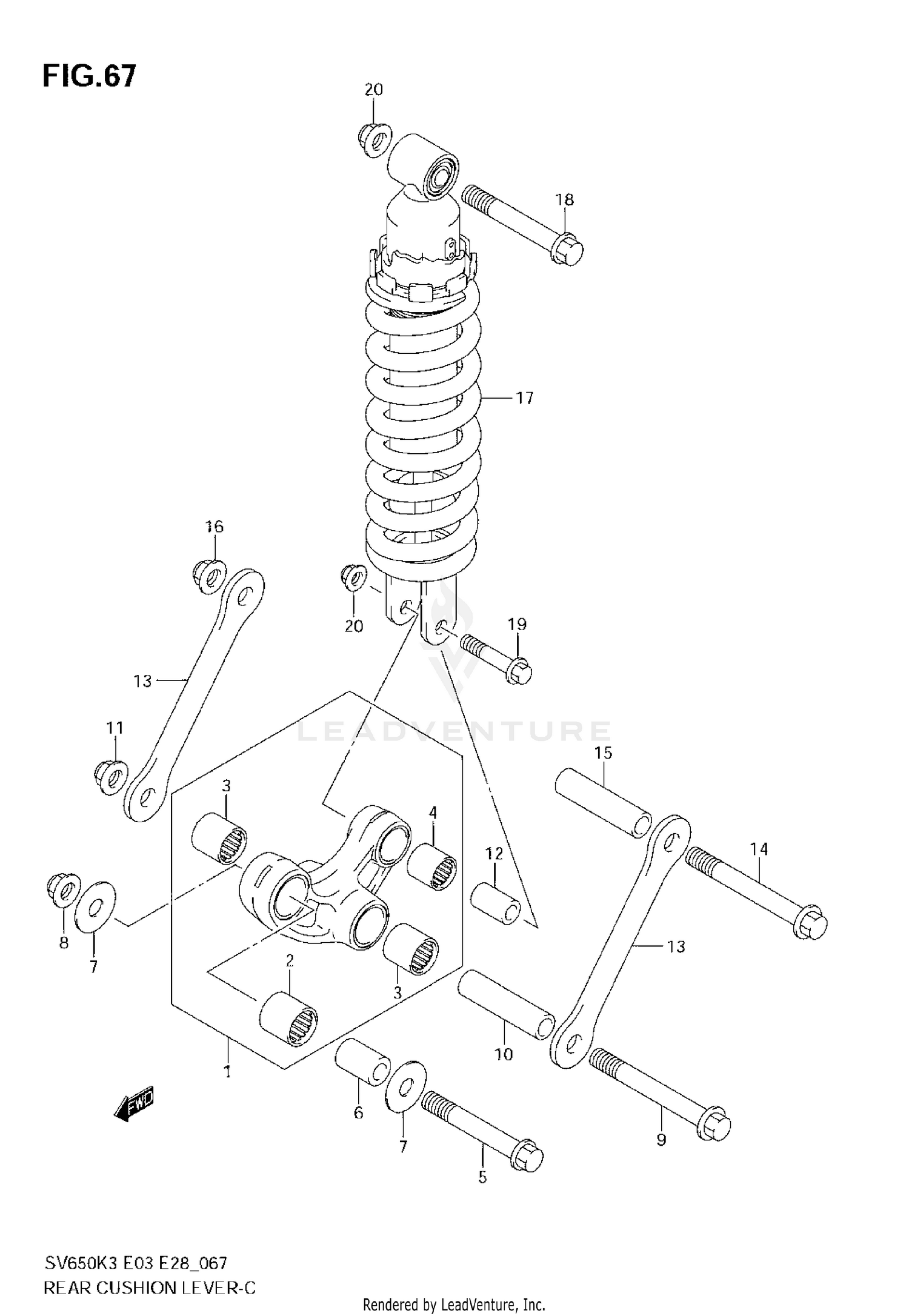

Rear Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-17860
|
$450.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (20X27X30)
09263-20073
Superseded by 09263-20121
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,RR CUSHION LEVER,FR (12X
62658-19F00
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER,RR CUSHION LVR,FR (12X
62684-12C00
|
$19.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09160-12037
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-31128
Superseded by 08319-3112A
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#9
BOLT (L:96)
09103-12034
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, CENTER
62626-17G00
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08319-31128
Superseded by 08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#11
NUT
08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#12
SPACER, REAR (10X17X30)
62684-40A10
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, REAR CUSHION
62641-17G00
|
$33.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (L:96)
09103-12034
|
$10.82 | ||
|
Unavailable |
|||
|
#15
SPACER, ROD (12X17X68)
62626-17G00
|
$27.36 | ||
|
Unavailable |
|||
|
#16
NUT
08319-31128
Superseded by 08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#16
NUT
08319-3112A
|
$4.57 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G00-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G10-28W
|
$467.34 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G20-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G30-28W
|
$467.34 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G40-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G50-28W
|
$593.75 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G60-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G70-28W
|
$593.75 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G80-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17G90-28W
|
$581.87 | ||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17GA0-28W
|
|||
|
Unavailable |
|||
|
#17
ABSORBER ASSY, REAR SHOCK (WHITE)
62100-17GB0-28W
|
|||
|
Unavailable |
|||
|
#18
BOLT, UPPER (10X70)
09103-10033
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, LOWER
09103-10126
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
