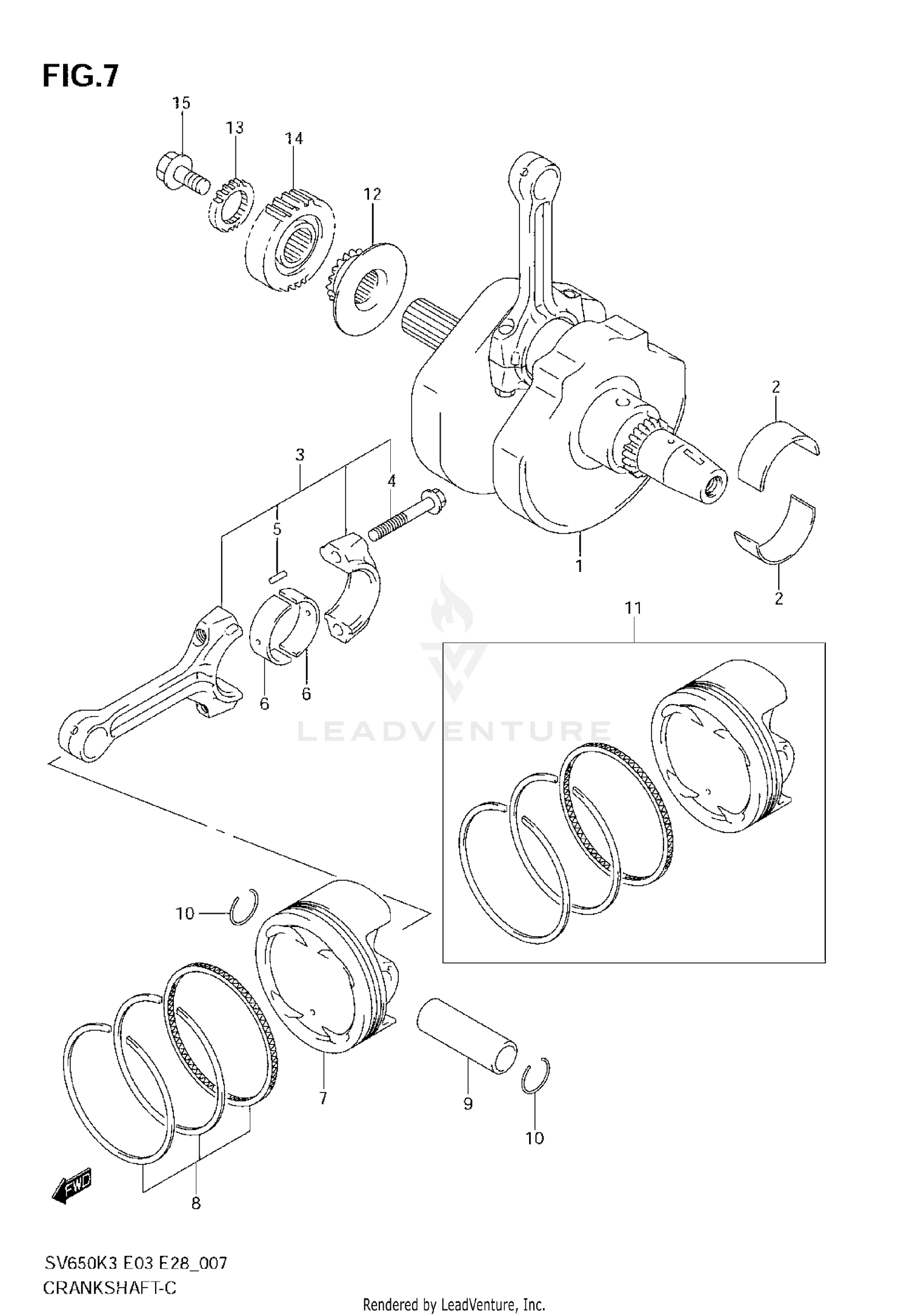

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12220-17G00
|
$1,509.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, CRANKSHAFT (GREEN)
12229-19F10-0A0
Superseded by 12229-27G00-0A0
|
$25.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, CRANKSHAFT (BLACK)
12229-19F10-0B0
Superseded by 12229-27G00-0B0
|
$23.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, CRANKSHAFT (BROWN)
12229-19F10-0C0
Superseded by 12229-27G00-0C0
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, CRANKSHAFT (GREEN)
12229-27G00-0A0
|
$25.19 | ||
|
Unavailable |
|||
|
#2
BEARING, CRANKSHAFT (BLACK)
12229-27G00-0B0
|
$23.80 | ||
|
Unavailable |
|||
|
#2
BEARING, CRANKSHAFT (BROWN)
12229-27G00-0C0
|
$24.71 | ||
|
Unavailable |
|||
|
#3
CONNECTING ROD ASSY
12160-17G00
Superseded by 12160-17G10
|
$221.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTING ROD ASSY
12160-17G10
|
$221.21 | ||
|
Unavailable |
|||
|
#4
BOLT, CONNECTING ROD
12163-24F00
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT,CONNROD
12163-24F10
|
$20.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CONNECTING ROD
12165-27A50
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.484/1.
12164-46E01-0A0
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.488/1.
12164-46E01-0B0
|
$20.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.492/1.
12164-46E01-0C0
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,CRANK PIN (T:1.496/1.
12164-46E01-0D0
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON
12111-20F00-0F0
|
$129.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON
12111-20F10-0F0
|
$155.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SET, PISTON
12140-17G00
|
$56.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SET, PISTON
12140-17G20
|
$90.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN,PISTON
12151-05A00
|
$19.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09381-20004
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PISTON SET (OS:0.5)
12100-17G00-050
|
$305.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET (OS:0.5)
12100-17G20-050
|
$232.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, PRIMARY DRIVE
21111-20F00
|
$73.16 | ||
|
Unavailable |
|||
|
#14
GEAR, PRIMARY DRIVE
21111-20F10
|
$82.89 | ||
|
Unavailable |
|||
|
#15
BOLT, PRIMARY DRIVE GEAR
09103-10338
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET,CAM CHAIN DRIVE (NT:
12731-19F00
|
$62.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR,WATER PUMP DRIVE (NT:17)
17451-17G00
|
$35.77 | ||
|
Available to order. Add to View Price |
|||
