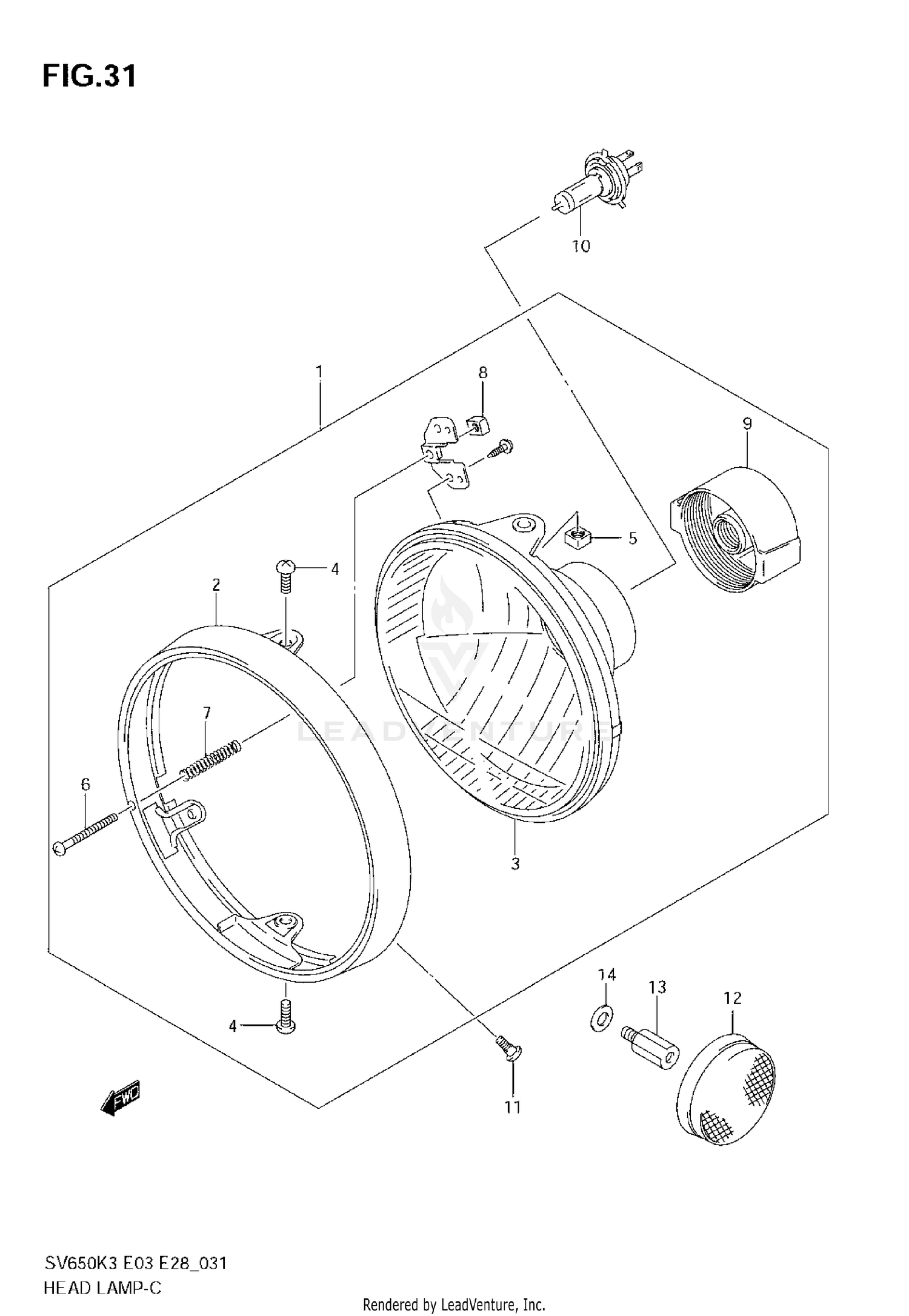

Headlamp (sv650k3/k4/k5/k6/k7/ak7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19F70-999
Superseded by 35100-19F01-999
|
$240.01 | ||
|
Unavailable |
|||
|
#2
RIM
35111-19F00
|
$110.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
LAMP UNIT
35121-19F00
|
$163.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW (5X16)
35181-19F00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
35135-45900
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
35151-19F00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
35154-49200
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
35152-45600
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
.COVER,SOCKET
35174-19F00
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V60/55W,H4)
09471-12060
|
$30.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW
09139-05038
|
$2.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
REFLEX REFLECTOR ASSY, FR SIDE
35950-14A00
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (5X10)
09119-05023
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
