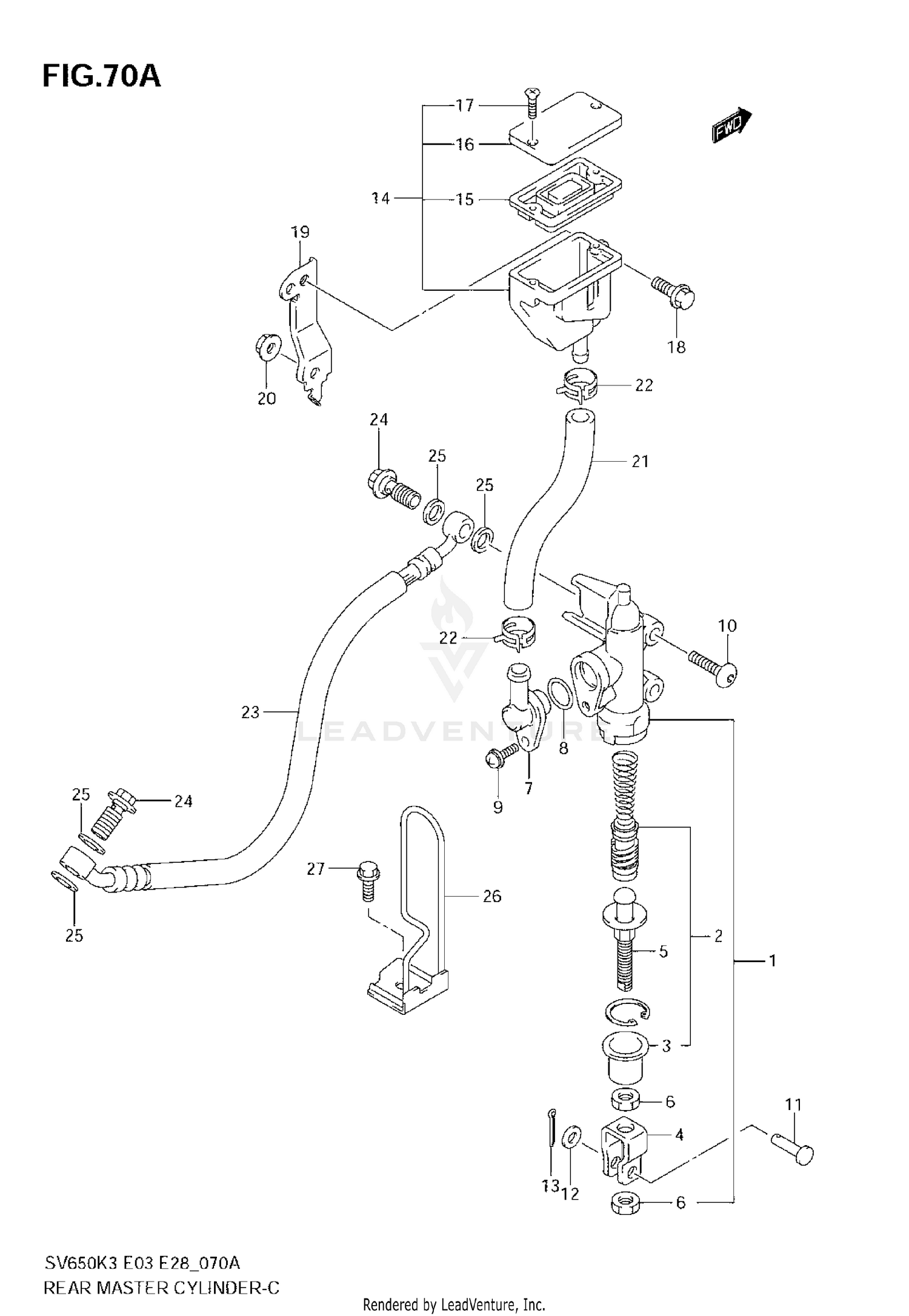

Rear Master Cylinder (sv650sk3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-16G00
|
$290.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-34820
Superseded by 69600-34821
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
69670-48B00
|
$34.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
69693-05A00
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-05A00
|
$7.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
02112-7412A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09139-06028
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
09200-06068
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08322-0106A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
TANK ASSY,REAR RESERVOIR
69740-01D02
|
$87.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM
59667-04700
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
59669-05D00
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
69689-04A00
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, TANK
09103-06222
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, RR RESERVOIR TANK
69750-16G00
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, BRACKET
09159-10111
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR TANK
69731-16G00
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP (ID:12.9)
09401-13417
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE,RR BRAKE
69480-16G00
Superseded by 69480-16G01
|
$36.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNION
09360-10042
Superseded by 09360-10062
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, RR BRAKE HOSE NO.1
69260-16G00
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
01547-06163
Superseded by 01547-0616B
|
$2.94 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
